Wastewater/Activity/PacpInspection/1.0Feb 27, 2018, 06:51 AM
05 0778_05 0777 _26022018_230932.mp4
- Date
- 02/26/2018
- W/O
- 690070
- Weather
- Light Rain
- Operator/Surveyor
- S. LOPEZ
- Sewer ID
- Z00553
- PipeID
- P06006
- Time
- 10:51 PM
- Certificate
- U-111-11880
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- No Pre-Cleaning
- Media Label
- K5467
- Sewer Name
- 05 MANCHESTER-VERMONT DIVERSION EXTENSION TRUNK
- City
- LOS ANGELES
- Loc. details
- Light Highway
- Location Code
- C
- Use of Sewer
- Sanitary Sewer
- District
- District 01
- Page No.
- 09
- Purpose
- Routine Assessment
- Project
- WO_690070_TV05272_MAR2018
- Sewer Type
- Gravity
- Material
- Vitrified Clay Pipe
- Shape
- Circular
- Height
- 15 in.
- Width
- 15 in.
- Upstream MH
- 05 0778
- Downstream MH
- 05 0777
- Dir. of Survey
- Downstream
- Length Surveyed
- 392.8 ft.
- Total Length
- 392.8 ft.
- Structural Index
- 4
- Structural Quick
- 4N31
- Structural Rating
- 303
- O&M Index
- 2
- O&M Quick
- 2M00
- O&M Rating
- 138
- Overall Index
- 3
- Overall Quick
- —
- Overall Rating
- 441
Observation photos (3)

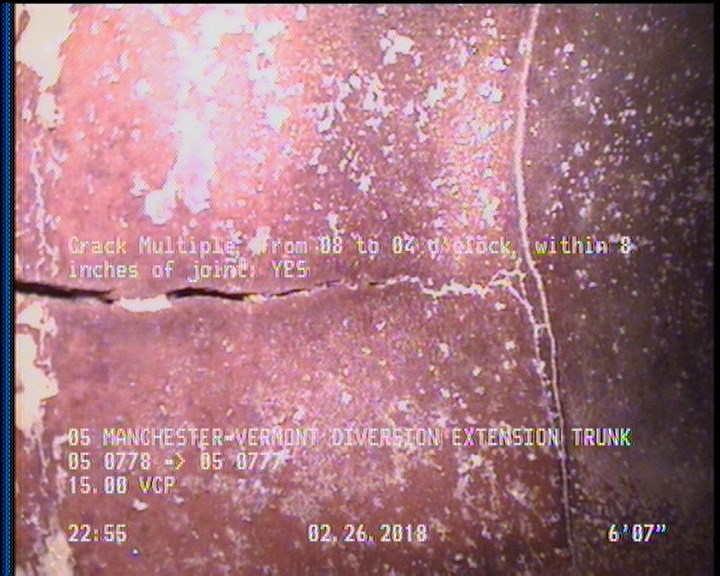

6.6 ft. - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES

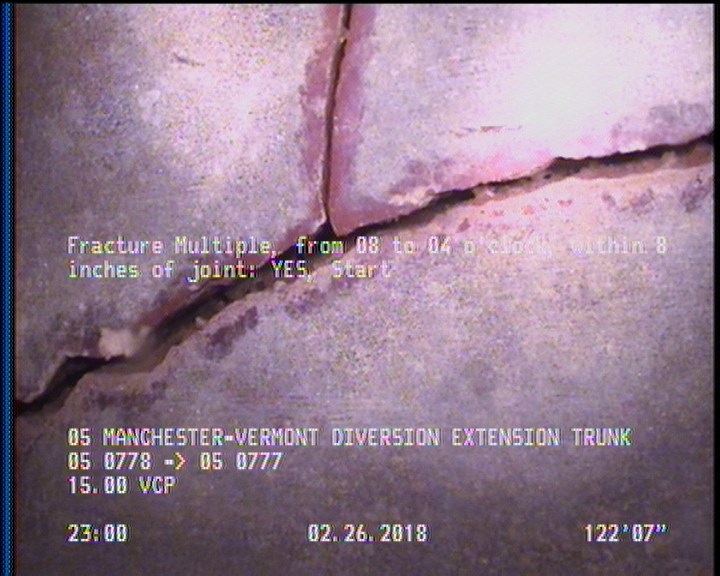

18.7 ft. - Fracture Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

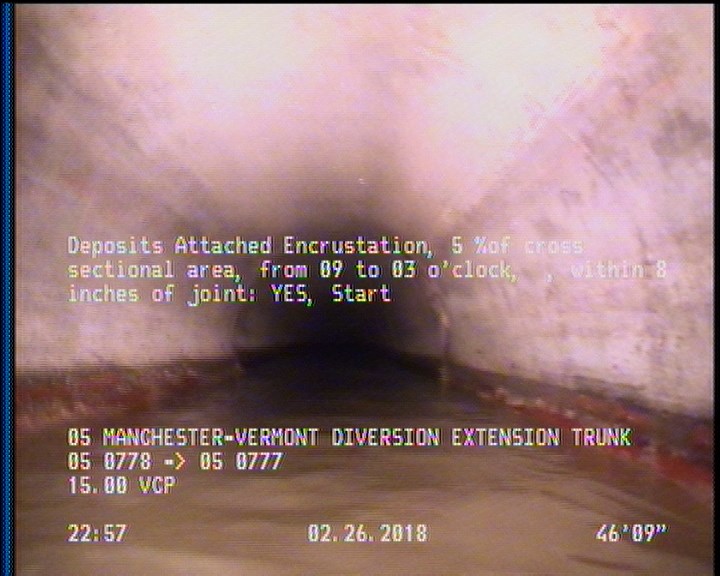

45.2 ft. - Deposits Attached Encrustation, 5 %of cross sectional area, from 09 to 03 o'clock, , within 8 inches of joint: YES, Start
Observations (9)
| Distance | Code | Observation |
|---|---|---|
| 6.6 | CM | — |
| 0 | AMH | 05 0778 |
| 391.4 | FM | — |
| 392.8 | AMH | 05 0777 |
| 45.2 | DAE | — |
| 0 | MWL | — |
| 391.4 | DAE | — |
| 18.7 | FM | — |
| 0 | MWM | — |
Properties (4)
- additional_info
- SC358473
- custom_field_two
- 2
- customer
- LACSD
- datetime
- 2018-02-26T22:51:32-08:00
