Wastewater/Activity/PacpInspection/1.0Feb 27, 2018, 07:26 AM
05 0776_05 2231 _06032018_122001.mp4
- Date
- 02/26/2018
- W/O
- 690070
- Weather
- Light Rain
- Operator/Surveyor
- S. LOPEZ
- Sewer ID
- Z00553
- PipeID
- P06004
- Time
- 11:26 PM
- Certificate
- U-111-11880
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- No Pre-Cleaning
- Media Label
- K5467
- Sewer Name
- 05 MANCHESTER-VERMONT DIVERSION EXTENSION TRUNK
- City
- LOS ANGELES
- Loc. details
- Light Highway
- Location Code
- C
- Use of Sewer
- Sanitary Sewer
- District
- District 01
- Page No.
- 09
- Purpose
- Routine Assessment
- Project
- WO_690070_TV05272_MAR2018
- Sewer Type
- Gravity
- Material
- Vitrified Clay Pipe
- Shape
- Circular
- Height
- 15 in.
- Width
- 15 in.
- Upstream MH
- 05 0776
- Downstream MH
- 05 2231
- Dir. of Survey
- Downstream
- Length Surveyed
- 164.2 ft.
- Total Length
- 164.2 ft.
- Structural Index
- 4
- Structural Quick
- 4D00
- Structural Rating
- 100
- O&M Index
- 2
- O&M Quick
- 2D00
- O&M Rating
- 52
- Overall Index
- 3
- Overall Quick
- —
- Overall Rating
- 152
Observation photos (3)

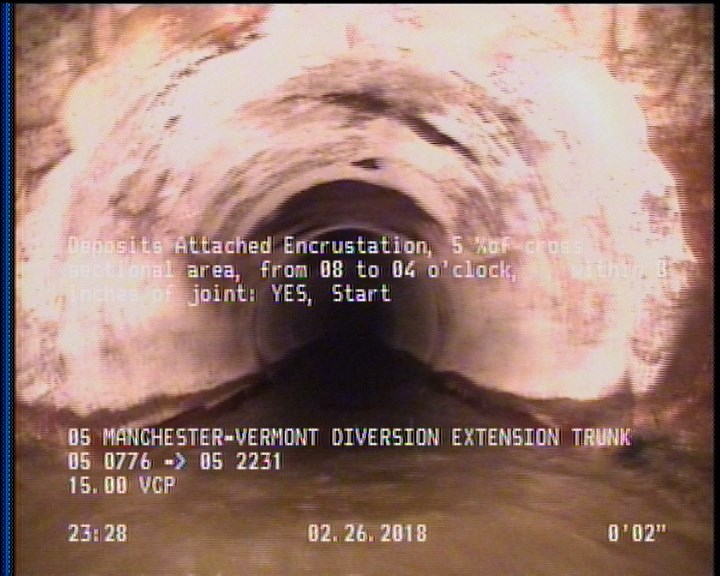

2 ft. - Deposits Attached Encrustation, 5 %of cross sectional area, from 08 to 04 o'clock, , within 8 inches of joint: YES, Start

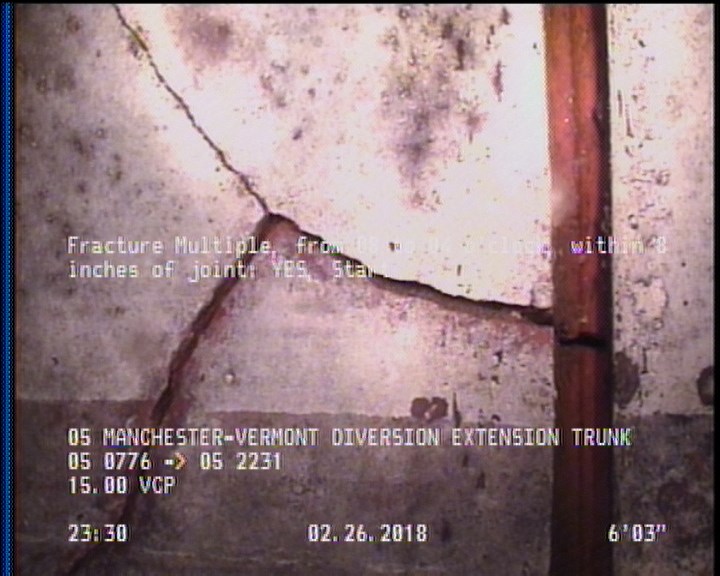

6.2 ft. - Fracture Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

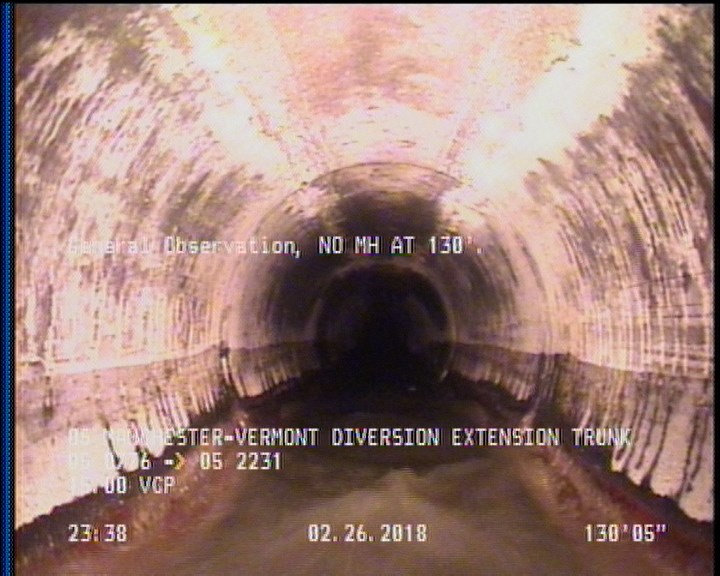

130.4 ft. - General Observation - NO MH AT 130'.
Observations (9)
| Distance | Code | Observation |
|---|---|---|
| 0 | MWL | — |
| 164.2 | FM | — |
| 130.4 | MGO | NO MH AT 130'. |
| 2 | DAE | — |
| 164.2 | DAE | — |
| 164.2 | AMH | 05 2231 |
| 0 | MWM | — |
| 6.2 | FM | — |
| 0 | AMH | 05 0776 |
Properties (4)
- additional_info
- SC358473, FOOTAGE DOES NOT MATCH THE MAP LENGTH ACCORDING TO THE PIPE INFO.
- custom_field_two
- 2
- customer
- LACSD
- datetime
- 2018-02-26T23:26:58-08:00
