Wastewater/Activity/PacpInspection/1.0Feb 26, 2018, 09:10 AM
21 0821A_21 0821_26022018_012136.mp4
- Date
- 02/26/2018
- W/O
- 690051
- Weather
- Dry
- Operator/Surveyor
- B.FUGATE
- Sewer ID
- Z00772
- PipeID
- P15922
- Time
- 1:10 AM
- Certificate
- U-508-7069
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- No Pre-Cleaning
- Media Label
- K5436
- Sewer Name
- 21 LA VERNE TRUNK, SECTION 2
- City
- LA VERNE
- Loc. details
- Light Highway
- Location Code
- C
- Use of Sewer
- Sanitary Sewer
- District
- District 21
- Page No.
- 05
- Purpose
- Routine Assessment
- Project
- WO_690051_TV21092_MAR2018
- Sewer Type
- Gravity
- Material
- Vitrified Clay Pipe
- Shape
- Circular
- Height
- 12 in.
- Width
- 12 in.
- Upstream MH
- 21 0821
- Downstream MH
- 21 0821A
- Dir. of Survey
- Upstream
- Length Surveyed
- 2.2 ft.
- Total Length
- 2.2 ft.
- Structural Index
- 0
- Structural Quick
- 0000
- Structural Rating
- 0
- O&M Index
- 2
- O&M Quick
- 2100
- O&M Rating
- 2
- Overall Index
- 2
- Overall Quick
- —
- Overall Rating
- 2
Observation photos (2)

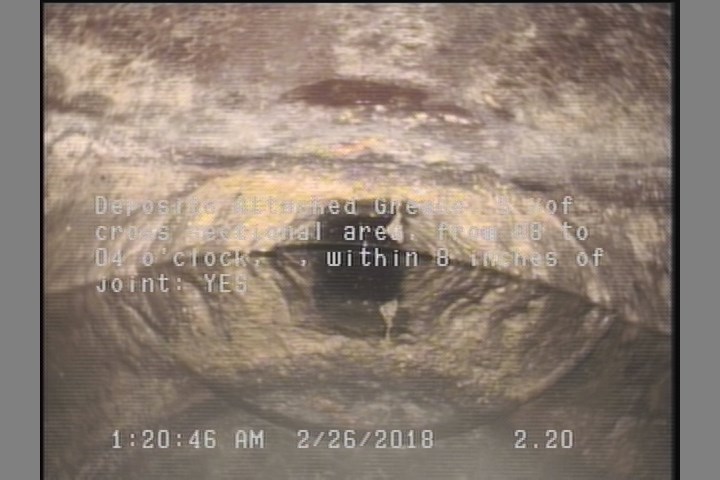

2.2 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 08 to 04 o'clock, , within 8 inches of joint: YES
2.2 ft. - Survey Abandoned - HIGH FLOW
Observations (5)
| Distance | Code | Observation |
|---|---|---|
| 0 | MWM | — |
| 2.2 | DAGS | — |
| 0 | AMH | 21 0821 |
| 2.2 | MSA | HIGH FLOW |
| 0 | MWL | — |
Properties (4)
- additional_info
- SC347091
- custom_field_two
- 3
- customer
- LACSD
- datetime
- 2018-02-26T01:10:54-08:00
