Wastewater/Activity/PacpInspection/1.0Aug 10, 2016, 11:09 AM
08 0258_08 0257 _08102016_042227.mp4
- Date
- 08/10/2016
- W/O
- 580478
- Weather
- Dry
- Operator/Surveyor
- S. LOPEZ
- Sewer ID
- Z00004
- PipeID
- P00299
- Time
- 4:09 AM
- Certificate
- U-111-11880
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- No Pre-Cleaning
- Media Label
- K3631
- Sewer Name
- 08 DEL AMO TRUNK
- City
- CARSON
- Loc. details
- Main Highway - Urban
- Location Code
- A
- Use of Sewer
- Sanitary Sewer
- District
- District 08
- Page No.
- 08
- Purpose
- Routine Assessment
- Project
- WO_580478_TV08039_JULY2016
- Sewer Type
- Gravity
- Material
- Vitrified Clay Pipe
- Shape
- Circular
- Height
- 18 in.
- Width
- 18 in.
- Upstream MH
- 08 0258
- Downstream MH
- 08 0257
- Dir. of Survey
- Downstream
- Length Surveyed
- 282.5 ft.
- Total Length
- 282.5 ft.
- Structural Index
- 0
- Structural Quick
- 0000
- Structural Rating
- 0
- O&M Index
- 2
- O&M Quick
- 322T
- O&M Rating
- 218
- Overall Index
- 2
- Overall Quick
- —
- Overall Rating
- 218
Observation photos (5)

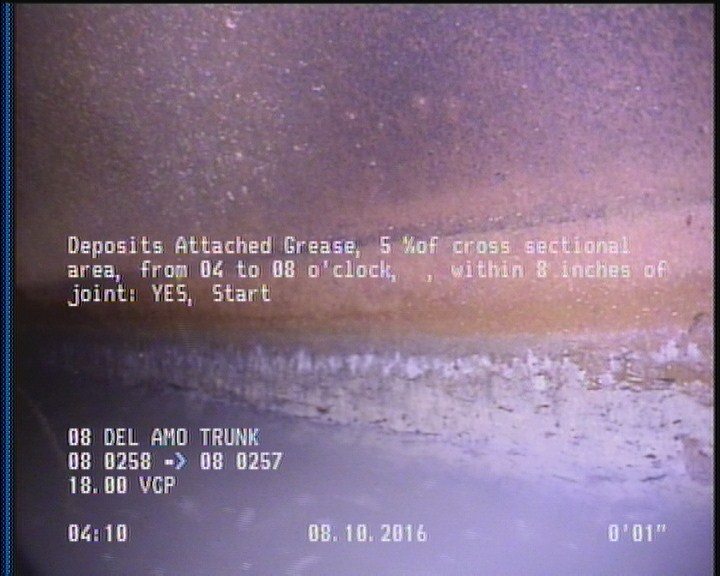

2 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start

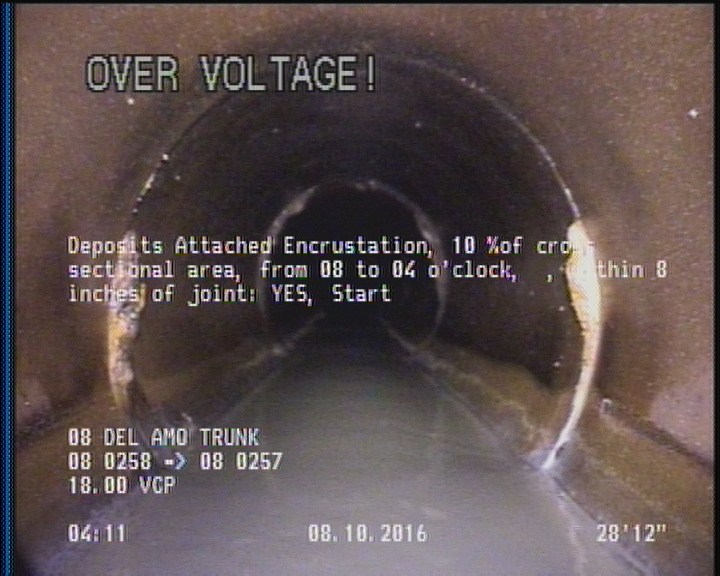

29 ft. - Deposits Attached Encrustation, 10 %of cross sectional area, from 08 to 04 o'clock, , within 8 inches of joint: YES, Start

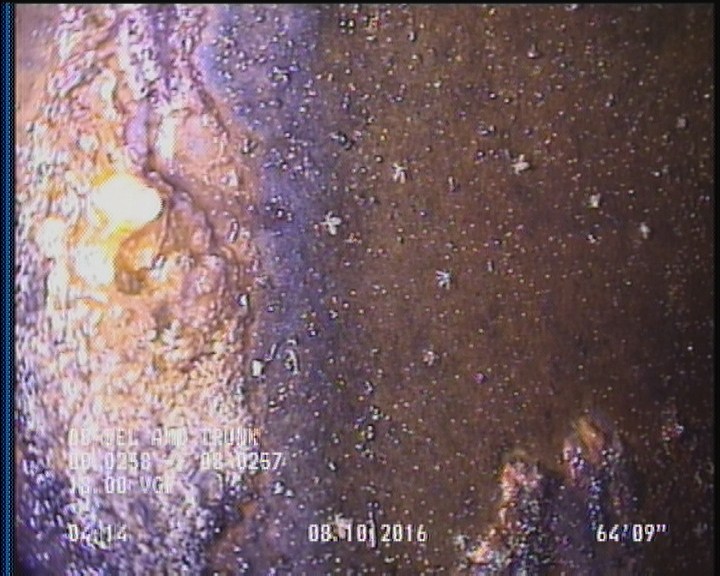

64.7 ft. - Infiltration Dripper, at 12 o'clock, within 8 inches of joint: YES

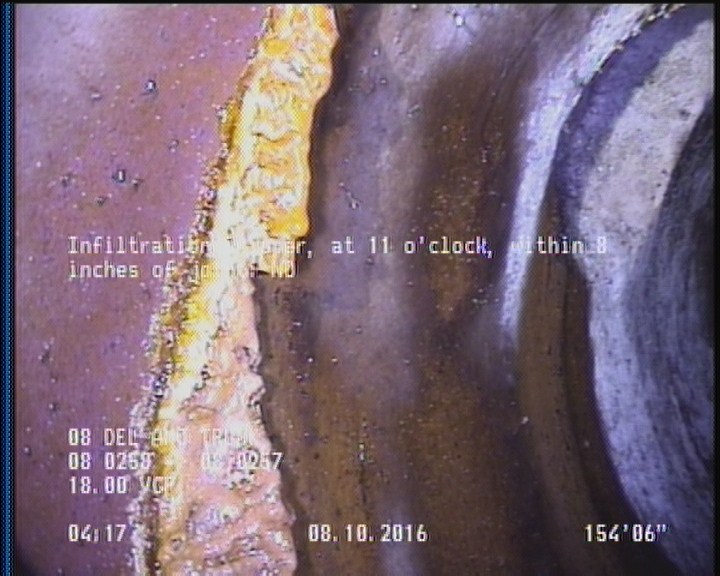

154.5 ft. - Infiltration Dripper, at 11 o'clock, within 8 inches of joint: NO

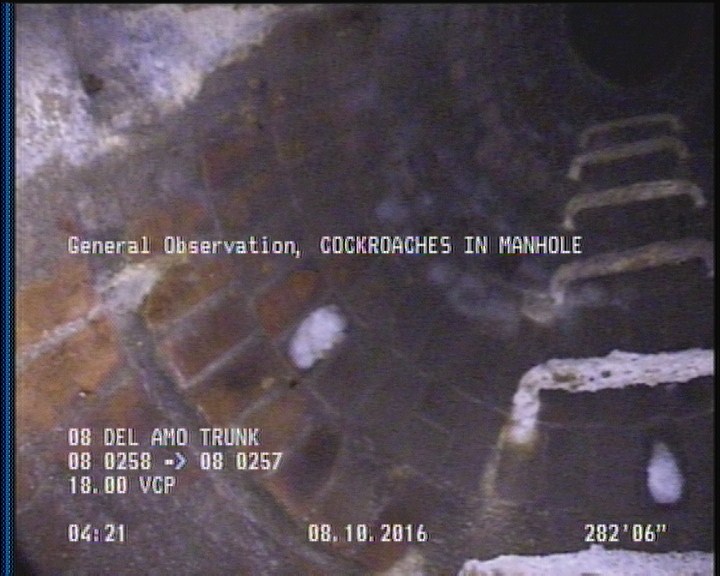

282.5 ft. - General Observation - COCKROACHES IN MANHOLE
Observations (15)
| Distance | Code | Observation |
|---|---|---|
| 156.9 | TFC | — |
| 159 | TFC | — |
| 282.5 | AMH | 08 0257 |
| 2 | DAGS | — |
| 0 | MWM | — |
| 280.8 | DAGS | — |
| 282.5 | MGO | COCKROACHES IN MANHOLE |
| 154.5 | ID | — |
| 0 | AMH | 08 0258 |
| 50.9 | TFC | — |
| 64.7 | ID | — |
| 29 | DAE | — |
| 280.8 | DAE | — |
| 0 | MWL | — |
| 47.9 | TFC | — |
Properties (4)
- additional_info
- SC306065
- custom_field_two
- 4
- customer
- LACSD
- datetime
- 2016-08-10T04:09:09-07:00
