Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Aug 10, 2016, 07:04 AM

  • 08 0273_08 0272 _08102016_002314.mp4

Date
08/10/2016
W/O
580478
Weather
Dry
Operator/Surveyor
S. LOPEZ
Sewer ID
Z00004
PipeID
P00315
Time
12:04 AM
Certificate
U-111-11880
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
No Pre-Cleaning
Media Label
K3631
Sewer Name
08 DEL AMO TRUNK
City
CARSON
Loc. details
Main Highway - Suburban/Rural
Location Code
B
Use of Sewer
Sanitary Sewer
District
District 08
Page No.
08
Purpose
Routine Assessment
Project
WO_580478_TV08039_JULY2016
Sewer Type
Gravity
Material
Vitrified Clay Pipe
Shape
Circular
Height
15 in.
Width
15 in.
Upstream MH
08 0272
Downstream MH
08 0273
Dir. of Survey
Upstream
Length Surveyed
350.3 ft.
Total Length
350.3 ft.
Structural Index
0
Structural Quick
0000
Structural Rating
0
O&M Index
2
O&M Quick
2M00
O&M Rating
138
Overall Index
2
Overall Quick
—
Overall Rating
138
Pipe schematic from manhole 08 0272 to 08 0273
MH: 08 0272MH: 08 0273upstream0 ft. AMH - Upstream Manhole, Survey Ends - 08 02730 ft. MGO - General Observation - COCKROACHES IN MANHOLE2.6 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Finish113.4 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: YES, 6"116.7 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: NO, 6"230.2 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: NO, 6"233.5 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: NO, 6"348.3 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start350.3 ft. MWL - Water Level, 10 %of cross sectional area350.3 ft. MWM - Water Mark, 20 %of cross sectional area350.3 ft. MGO - General Observation - COCKROACHES IN MANHOLE350.3 ft. AMH - Downstream Manhole, Survey Begins - 08 0272

Observation photos (3)

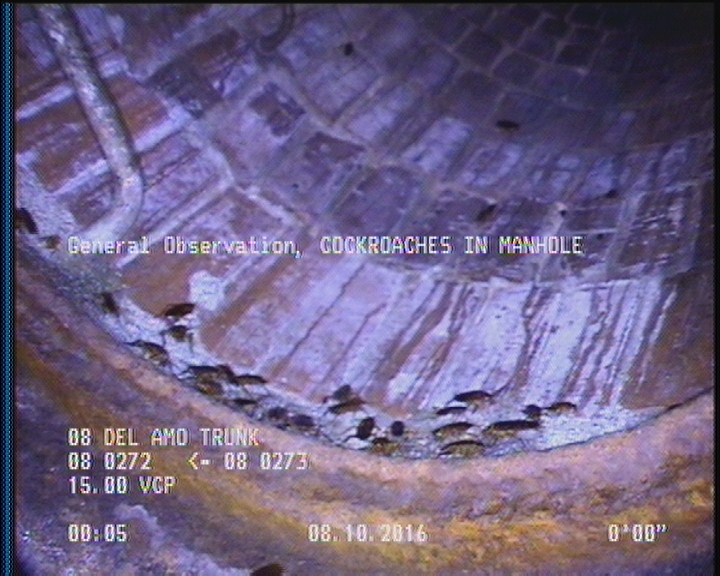

  • General Observation - COCKROACHES IN MANHOLE

    0 ft. - General Observation - COCKROACHES IN MANHOLE

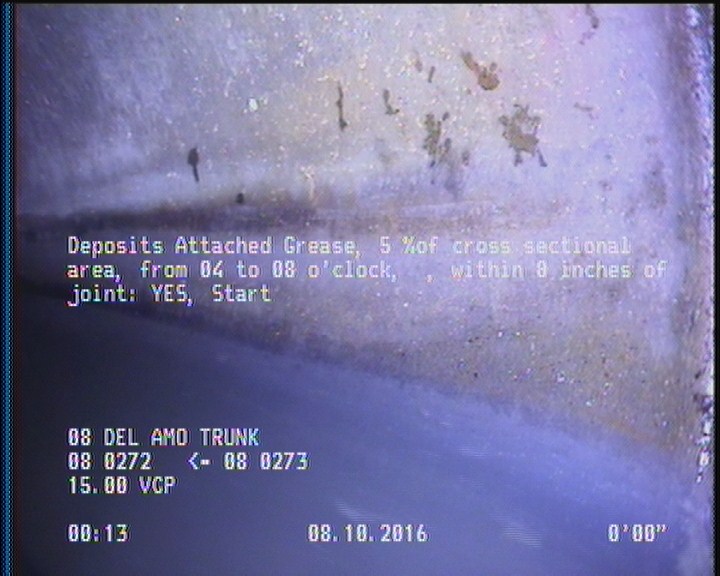

  • Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start

    2 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start

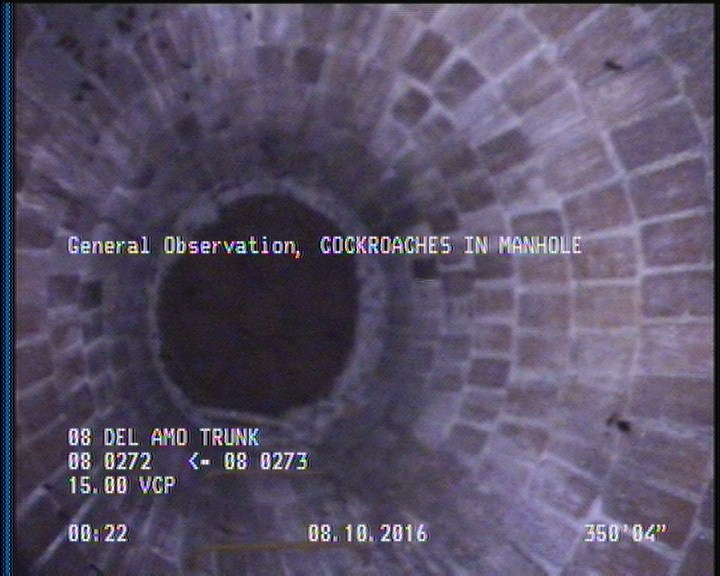

  • General Observation - COCKROACHES IN MANHOLE

    350.3 ft. - General Observation - COCKROACHES IN MANHOLE

All inspections of P00315Work order 580478

Observations (12)

DistanceCodeObservation
0MWL—
347.7DAGS—
350.3AMH08 0273
233.6TFC—
0MWM—
116.8TFC—
0MGOCOCKROACHES IN MANHOLE
350.3MGOCOCKROACHES IN MANHOLE
0AMH08 0272
2DAGS—
236.9TFC—
120.1TFC—

Properties (4)

additional_info
SC306065
custom_field_two
4
customer
LACSD
datetime
2016-08-10T00:04:19-07:00
