Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Aug 9, 2016, 11:01 AM

  • 08 0274_08 0273 _08092016_041605.mp4

Date
08/09/2016
W/O
580478
Weather
Dry
Operator/Surveyor
S. LOPEZ
Sewer ID
Z00004
PipeID
P00316
Time
4:01 AM
Certificate
U-111-11880
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
No Pre-Cleaning
Media Label
K3630
Sewer Name
08 DEL AMO TRUNK
City
CARSON
Loc. details
Main Highway - Suburban/Rural
Location Code
B
Use of Sewer
Sanitary Sewer
District
District 08
Page No.
08
Purpose
Routine Assessment
Project
WO_580478_TV08039_JULY2016
Sewer Type
Gravity
Material
Vitrified Clay Pipe
Shape
Circular
Height
15 in.
Width
15 in.
Upstream MH
08 0273
Downstream MH
08 0274
Dir. of Survey
Upstream
Length Surveyed
349.1 ft.
Total Length
349.1 ft.
Structural Index
0
Structural Quick
0000
Structural Rating
0
O&M Index
2
O&M Quick
2M00
O&M Rating
138
Overall Index
2
Overall Quick
—
Overall Rating
138
Pipe schematic from manhole 08 0273 to 08 0274
MH: 08 0273MH: 08 0274upstream0 ft. AMH - Upstream Manhole, Survey Ends - 08 02740 ft. MGO - General Observation - ACTIVE CONNECTION AT MH 9 O''CLOCK0 ft. MGO - General Observation - COCKROACHES IN MANHOLE1.7 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Finish59.2 ft. TBA - Tap Break-In Active, at 02 o'clock, -, within 8 inches of joint: NO, 6"102.7 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: NO, 6"105.8 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: NO, 6"231.3 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: NO, 6"234.1 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: NO, 6"335.1 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: NO, 6"338.6 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: NO, 6"347.1 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start349.1 ft. MGO - General Observation - COCKROACHES IN MANHOLE349.1 ft. MWM - Water Mark, 20 %of cross sectional area349.1 ft. MWL - Water Level, 10 %of cross sectional area349.1 ft. AMH - Downstream Manhole, Survey Begins - 08 0273

Observation photos (3)

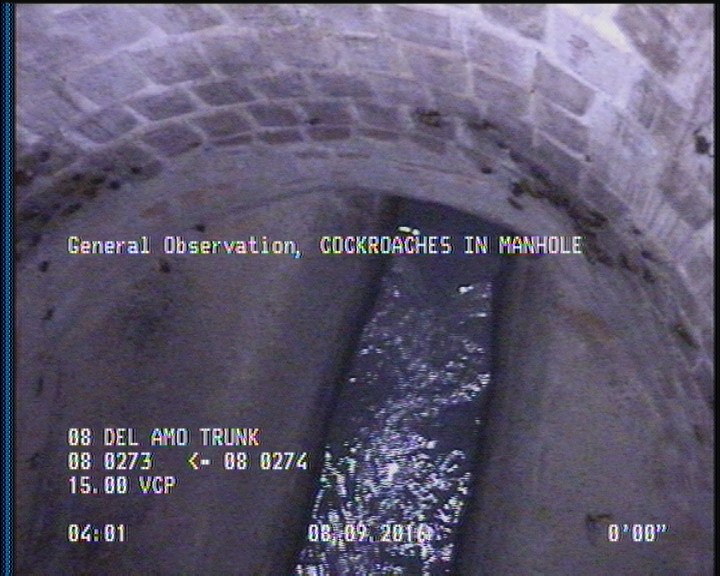

  • General Observation - COCKROACHES IN MANHOLE

    0 ft. - General Observation - COCKROACHES IN MANHOLE

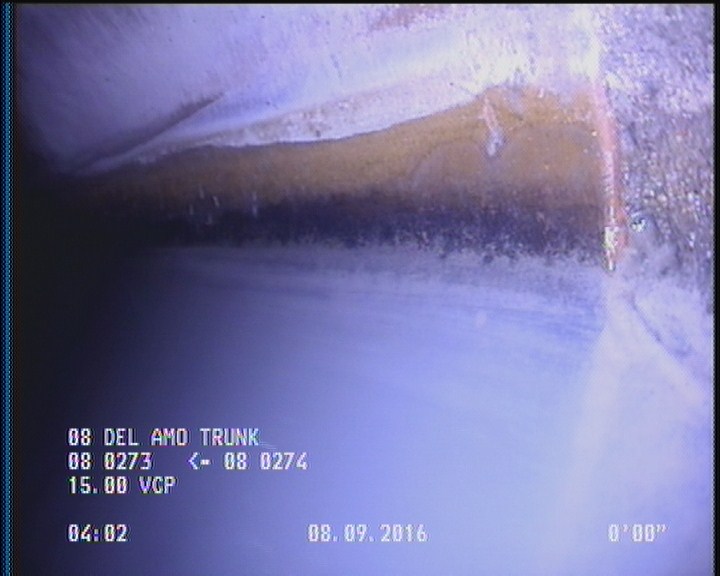

  • Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start

    2 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start

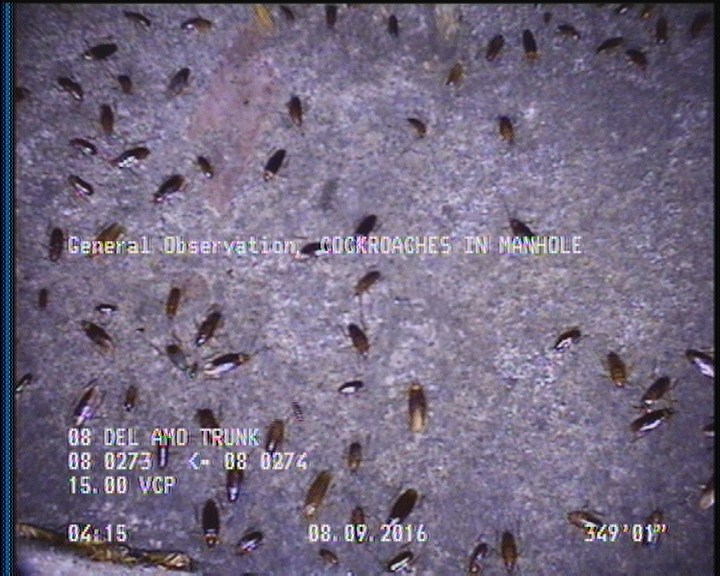

  • General Observation - COCKROACHES IN MANHOLE

    349.1 ft. - General Observation - COCKROACHES IN MANHOLE

All inspections of P00316Work order 580478

Observations (16)

DistanceCodeObservation
349.1AMH08 0274
0MGOCOCKROACHES IN MANHOLE
117.8TFC—
10.5TFC—
349.1MGOACTIVE CONNECTION AT MH 9 O''CLOCK
246.4TFC—
0MWM—
0MWL—
289.9TBA—
2DAGS—
0AMH08 0273
14TFC—
243.3TFC—
347.4DAGS—
115TFC—
349.1MGOCOCKROACHES IN MANHOLE

Properties (4)

additional_info
SC306064
custom_field_two
4
customer
LACSD
datetime
2016-08-09T04:01:02-07:00
