Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Aug 15, 2016, 08:49 AM

  • 08 0242_08 0241 _08152016_014948.mp4

Date
08/15/2016
W/O
580478
Weather
Dry
Operator/Surveyor
S. LOPEZ
Sewer ID
Z00004
PipeID
P00282
Time
1:49 AM
Certificate
U111-11880
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
No Pre-Cleaning
Media Label
K3635
Sewer Name
08 DEL AMO TRUNK
City
CARSON
Loc. details
Main Highway - Suburban/Rural
Location Code
B
Use of Sewer
Sanitary Sewer
District
District 08
Page No.
08
Purpose
Routine Assessment
Project
WO_580478_TV08039_JULY2016
Sewer Type
Gravity
Material
Vitrified Clay Pipe
Shape
Circular
Height
27 in.
Width
27 in.
Upstream MH
08 0242
Downstream MH
08 0241
Dir. of Survey
Downstream
Length Surveyed
60.1 ft.
Total Length
60.1 ft.
Structural Index
0
Structural Quick
0000
Structural Rating
0
O&M Index
3
O&M Quick
3A2A
O&M Rating
55
Overall Index
3
Overall Quick
—
Overall Rating
55
Pipe schematic from manhole 08 0242 to 08 0241
MH: 08 0242MH: 08 0241downstream0 ft. AMH - Upstream Manhole, Survey Begins - 08 02420 ft. MWM - Water Mark, 40 %of cross sectional area0 ft. MGO - General Observation - CAPPED CONNECTION AT MH 3 O'CLOCK0 ft. MWL - Water Level, 25 %of cross sectional area0 ft. MGO - General Observation - CAPPED CONNECTION AT MH 9 O'CLOCK2 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start3.8 ft. DSZ - Deposits Settled Other, 15 %of cross sectional area, from 05 to 07 o'clock, , within 8 inches of joint: YES, Start - DEBRIS57.9 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Finish57.9 ft. DSZ - Deposits Settled Other, 15 %of cross sectional area, from 05 to 07 o'clock, , within 8 inches of joint: YES, Finish - DEBRIS60.1 ft. MGO - General Observation - COCKROACHES IN MANHOLE60.1 ft. MGO - General Observation - ACTIVE CONNECTION AT MH 9 O'CLOCK60.1 ft. AMH - Downstream Manhole, Survey Ends - 08 024160.1 ft. MGO - General Observation - ACTIVE CONNECTION AT MH 3 O'CLOCK

Observation photos (2)

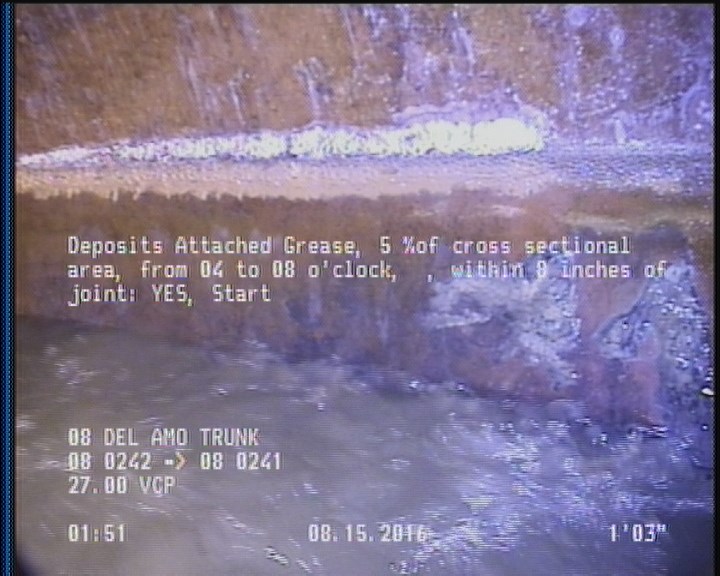

  • Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start

    2 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start

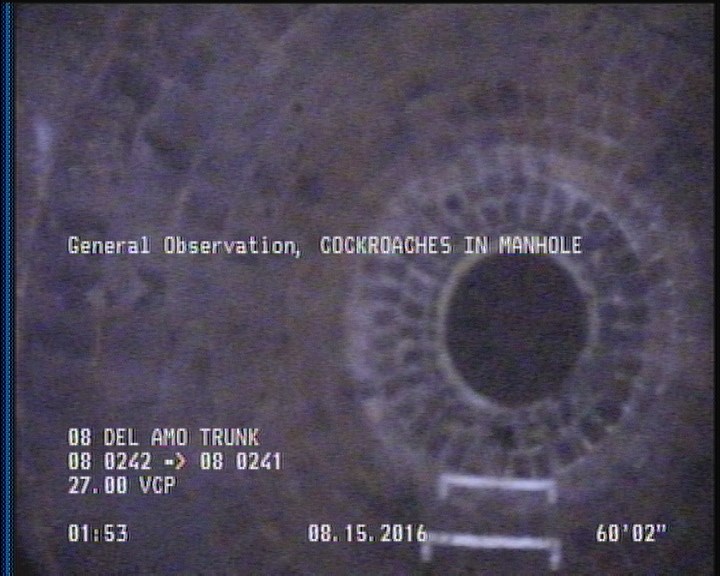

  • General Observation - COCKROACHES IN MANHOLE

    60.1 ft. - General Observation - COCKROACHES IN MANHOLE

All inspections of P00282Work order 580478

Observations (13)

DistanceCodeObservation
0AMH08 0242
0MWM—
57.9DAGS—
57.9DSZDEBRIS
60.1MGOCOCKROACHES IN MANHOLE
60.1MGOACTIVE CONNECTION AT MH 9 O'CLOCK
3.8DSZDEBRIS
60.1AMH08 0241
0MGOCAPPED CONNECTION AT MH 3 O'CLOCK
0MWL—
0MGOCAPPED CONNECTION AT MH 9 O'CLOCK
2DAGS—
60.1MGOACTIVE CONNECTION AT MH 3 O'CLOCK

Properties (4)

additional_info
SC306070
custom_field_two
4
customer
LACSD
datetime
2016-08-15T01:49:27-07:00
