Wastewater/Activity/PacpInspection/1.0Aug 11, 2016, 11:55 AM
08 0244_08 0243 _08112016_045607.mp4
- Date
- 08/11/2016
- W/O
- 580478
- Weather
- Dry
- Operator/Surveyor
- S. LOPEZ
- Sewer ID
- Z00004
- PipeID
- P00284
- Time
- 4:55 AM
- Certificate
- U-111-11880
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- No Pre-Cleaning
- Media Label
- K3633
- Sewer Name
- 08 DEL AMO TRUNK
- City
- CARSON
- Loc. details
- Main Highway - Urban
- Location Code
- A
- Use of Sewer
- Sanitary Sewer
- District
- District 08
- Page No.
- 08
- Purpose
- Routine Assessment
- Project
- WO_580478_TV08039_JULY2016
- Sewer Type
- Gravity
- Material
- Vitrified Clay Pipe
- Shape
- Circular
- Height
- 24 in.
- Width
- 24 in.
- Upstream MH
- 08 0244
- Downstream MH
- 08 0243
- Dir. of Survey
- Downstream
- Length Surveyed
- 6.2 ft.
- Total Length
- 6.2 ft.
- Structural Index
- 0
- Structural Quick
- 0000
- Structural Rating
- 0
- O&M Index
- 2
- O&M Quick
- 2200
- O&M Rating
- 4
- Overall Index
- 2
- Overall Quick
- —
- Overall Rating
- 4
Observation photos (2)

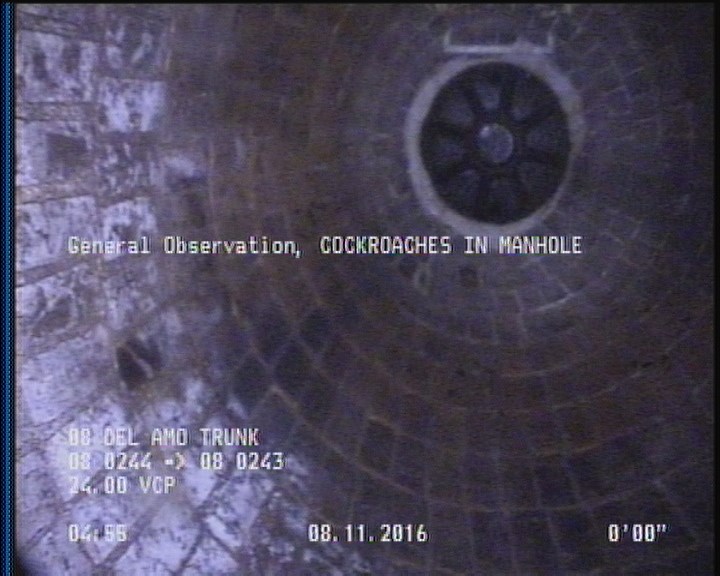

0 ft. - General Observation - COCKROACHES IN MANHOLE

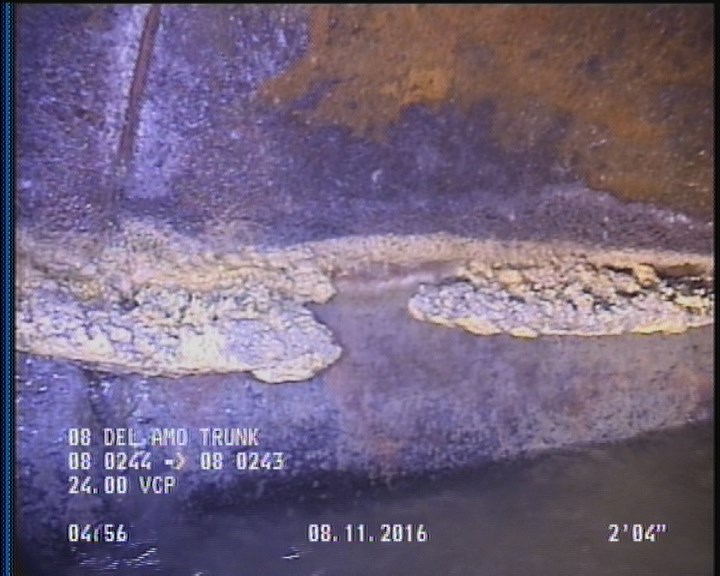

2 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start
Observations (8)
| Distance | Code | Observation |
|---|---|---|
| 2 | DAGS | — |
| 6.2 | AMH | 08 0243 |
| 0 | MWM | — |
| 6.2 | DAGS | — |
| 6.2 | MGO | ACTIVE CONNECTION AT MH 3 O'CLOCK |
| 0 | MGO | COCKROACHES IN MANHOLE |
| 0 | AMH | 08 0244 |
| 0 | MWL | — |
Properties (4)
- additional_info
- SC306067
- custom_field_two
- 4
- customer
- LACSD
- datetime
- 2016-08-11T04:55:32-07:00
