Wastewater/Activity/PacpInspection/1.0Aug 10, 2016, 09:08 AM
08 0266_08 0265 _08102016_021430.mp4
- Date
- 08/10/2016
- W/O
- 580478
- Weather
- Dry
- Operator/Surveyor
- S. LOPEZ
- Sewer ID
- Z00004
- PipeID
- P00307
- Time
- 2:08 AM
- Certificate
- U-111-11880
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- No Pre-Cleaning
- Media Label
- K3631
- Sewer Name
- 08 DEL AMO TRUNK
- City
- CARSON
- Loc. details
- Light Highway
- Location Code
- C
- Use of Sewer
- Sanitary Sewer
- District
- District 08
- Page No.
- 08
- Purpose
- Routine Assessment
- Project
- WO_580478_TV08039_JULY2016
- Sewer Type
- Gravity
- Material
- Vitrified Clay Pipe
- Shape
- Circular
- Height
- 18 in.
- Width
- 18 in.
- Upstream MH
- 08 0266
- Downstream MH
- 08 0265
- Dir. of Survey
- Downstream
- Length Surveyed
- 83.7 ft.
- Total Length
- 83.7 ft.
- Structural Index
- 3
- Structural Quick
- 3100
- Structural Rating
- 3
- O&M Index
- 2
- O&M Quick
- 2B00
- O&M Rating
- 32
- Overall Index
- 2
- Overall Quick
- —
- Overall Rating
- 35
Observation photos (5)

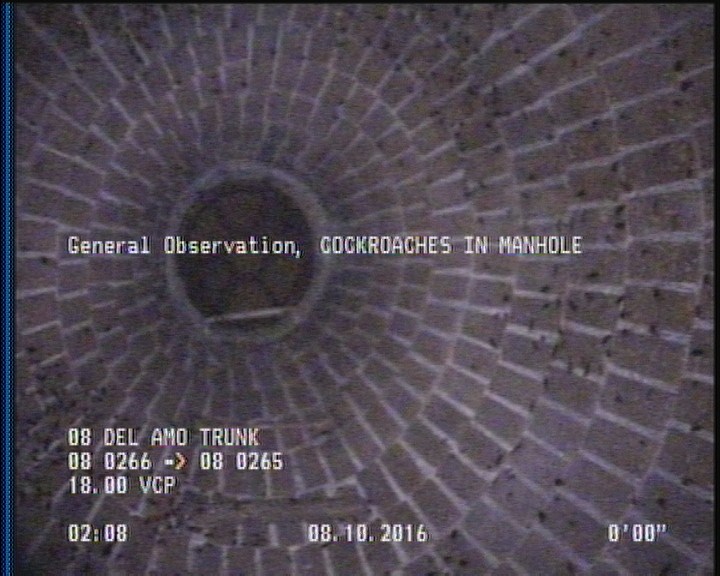

0 ft. - General Observation - COCKROACHES IN MANHOLE

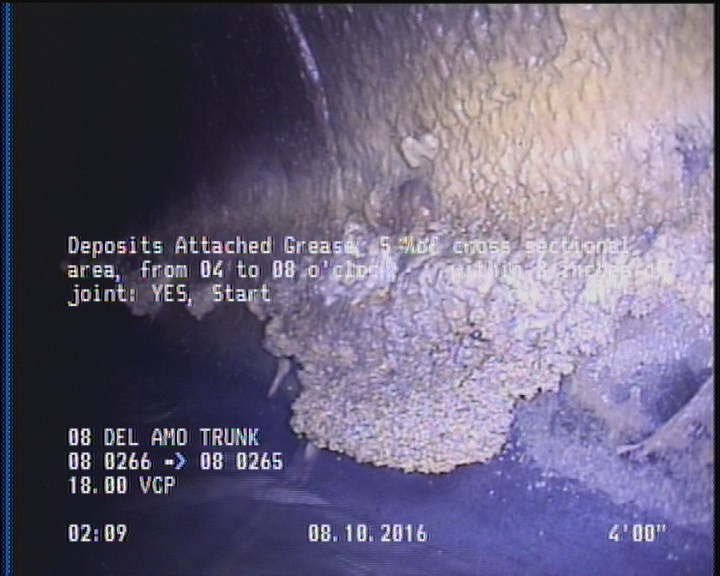

4 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start

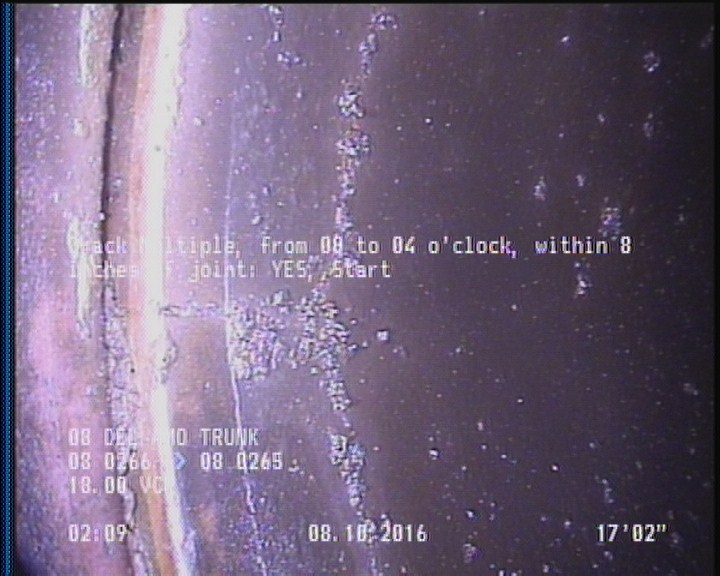

17.1 ft. - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES

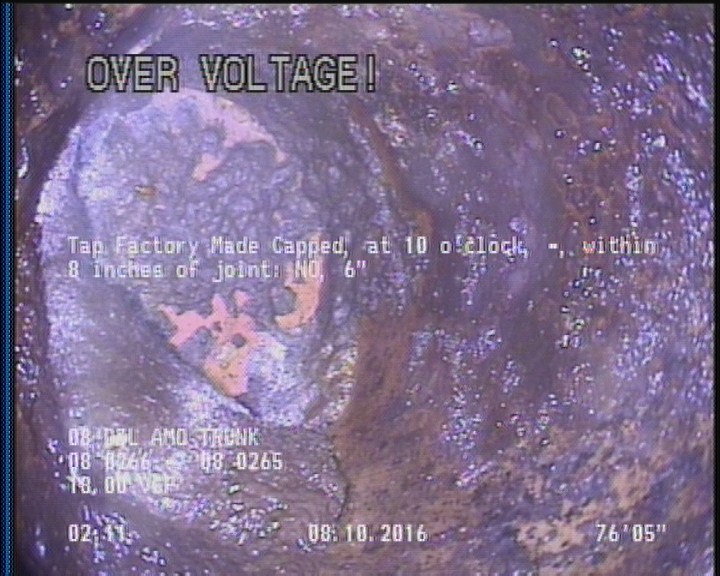

76.4 ft. - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: NO, 6"

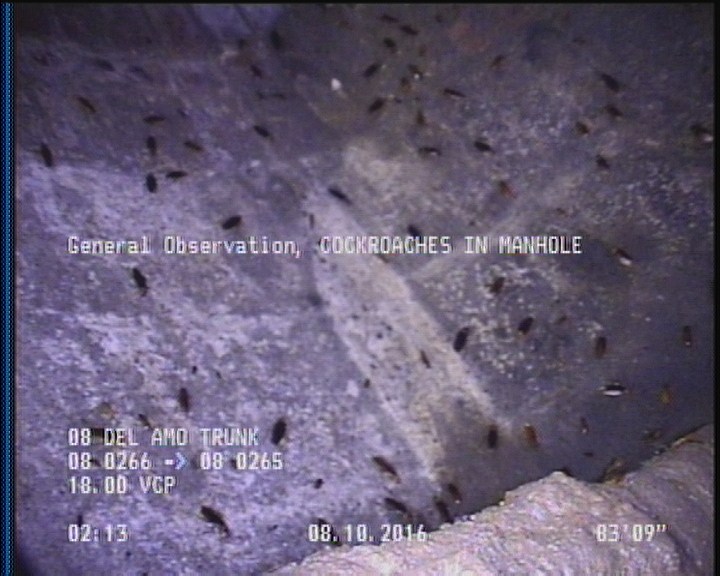

83.7 ft. - General Observation - COCKROACHES IN MANHOLE
Observations (11)
| Distance | Code | Observation |
|---|---|---|
| 79.5 | TFC | — |
| 83.7 | AMH | 08 0265 |
| 0 | MWL | — |
| 17.1 | CM | — |
| 0 | MGO | COCKROACHES IN MANHOLE |
| 83.7 | MGO | COCKROACHES IN MANHOLE |
| 0 | MWM | — |
| 0 | AMH | 08 0266 |
| 76.4 | TFC | — |
| 4 | DAGS | — |
| 83.5 | DAGS | — |
Properties (4)
- additional_info
- SC306065
- custom_field_two
- 4
- customer
- LACSD
- datetime
- 2016-08-10T02:08:08-07:00
