Wastewater/Activity/PacpInspection/1.0Mar 14, 2018, 05:41 PM
05 1529_05 1528_3142018_104532.mp4
- Date
- 03/14/2018
- W/O
- 0674248
- Weather
- Damp
- Operator/Surveyor
- SANTIAGO OBREGON
- Sewer ID
- Z00495
- PipeID
- P06751
- Time
- 10:41 AM
- Certificate
- U-1014-06022541
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- Not Known
- Media Label
- G7654
- Sewer Name
- 05 NORTH TORRANCE TRUNK
- City
- TORRANCE
- Loc. details
- Other
- Location Code
- Z
- Use of Sewer
- Sanitary Sewer
- District
- District 05
- Page No.
- 26
- Purpose
- Routine Assessment
- Project
- 20180314SHO_NORTH_TORRANCE_TRUNK
- Material
- Reinforced Concrete Pipe
- Shape
- Circular
- Height
- 24 in.
- Upstream MH
- 05 1529
- Downstream MH
- 05 1528
- Dir. of Survey
- Downstream
- Length Surveyed
- 424.3 ft.
- Total Length
- 424.3 ft.
- Structural Index
- 2
- Structural Quick
- 2200
- Structural Rating
- 4
- O&M Index
- 0
- O&M Quick
- 0000
- O&M Rating
- 0
- Overall Index
- 2
- Overall Quick
- —
- Overall Rating
- 4
Observation photos (2)

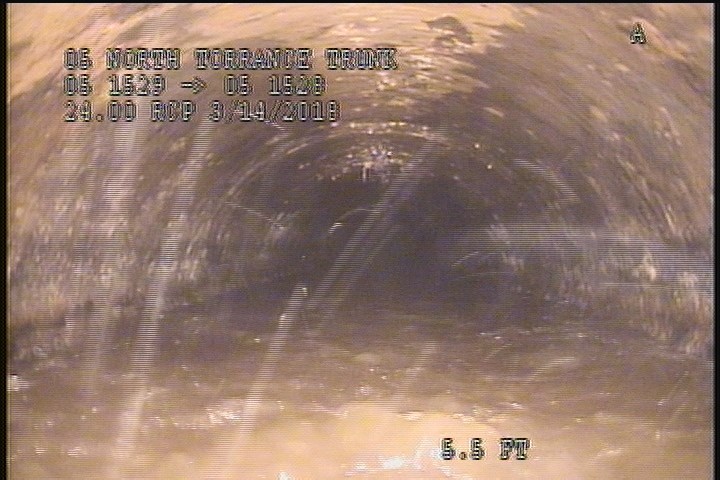

5.5 ft. - General Observation - 50% MAG COAT INTACT

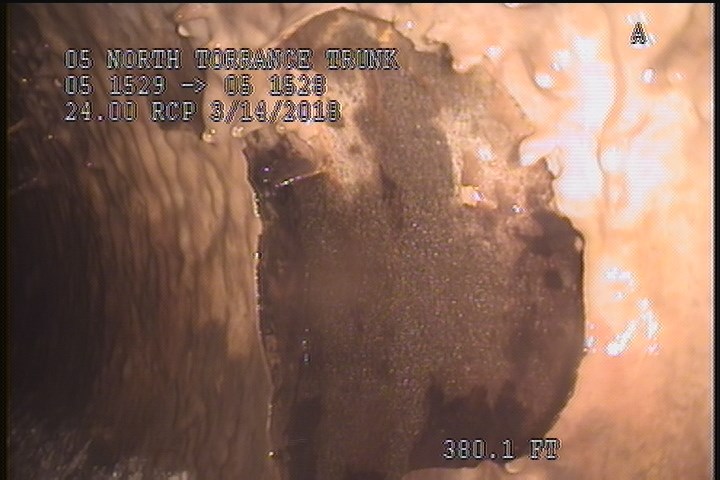

380.1 ft. - Surface Spalling, from 01 to 02 o'clock, within 8 inches of joint: NO - PEELING OF THE MAG COAT
Observations (8)
| Distance | Code | Observation |
|---|---|---|
| 0 | MWM | — |
| 424.3 | AMH | 1105 |
| 0 | AMH | 1045 |
| 0 | MWL | — |
| 422.3 | MGO | % OR LESS GREASE, THROUGHOUT THE REACH |
| 352.4 | SSS | — |
| 5.5 | MGO | 50% MAG COAT INTACT |
| 380.1 | SSS | PEELING OF THE MAG COAT |
Properties (2)
- customer
- LACSD
- datetime
- 2018-03-14T10:41:36-07:00
