Wastewater/Activity/PacpInspection/1.0Mar 14, 2018, 07:23 PM
Section#3_03 0476_03 0475__3142018__G6974.mp4
- Date
- 03/14/2018
- W/O
- 0694136
- Weather
- Dry
- Operator/Surveyor
- FRANKLIN
- Sewer ID
- Z00401
- PipeID
- P05196
- Time
- 12:23 PM
- Certificate
- U-415-06024039
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- Not Known
- Media Label
- G6974
- Sewer Name
- 03 PUMP DISTRICT #5 CONNECTION TRUNK
- City
- LONG BEACH
- Loc. details
- Sidewalk
- Location Code
- F
- Use of Sewer
- Sanitary Sewer
- District
- District 03
- Page No.
- 22
- Purpose
- Routine Assessment
- Project
- 20180314DF_PUMP_DISTRICTS_5_CONNECTION_TRUNK
- Material
- Vitrified Clay Pipe
- Shape
- Circular
- Height
- 10 in.
- Upstream MH
- 03 0476
- Downstream MH
- 03 0475
- Dir. of Survey
- Downstream
- Length Surveyed
- 2.1 ft.
- Total Length
- 2.1 ft.
- Structural Index
- 0
- Structural Quick
- 0000
- Structural Rating
- 0
- O&M Index
- 0
- O&M Quick
- 0000
- O&M Rating
- 0
- Overall Index
- 0
- Overall Quick
- —
- Overall Rating
- 0
Observation photos (5)

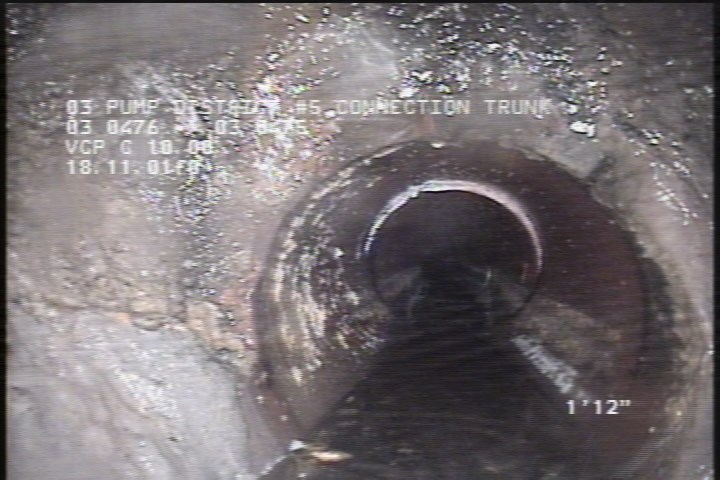

0 ft. - Upstream Manhole, Survey Begins - 12:23 PM

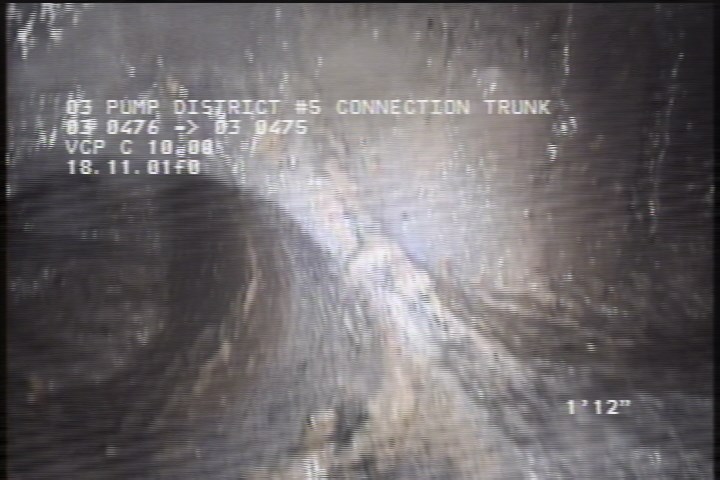

0.1 ft. - Water Mark, 25 %of cross sectional area
2 ft. - General Photograph
2 ft. - General Photograph
2 ft. - General Photograph
Observations (7)
| Distance | Code | Observation |
|---|---|---|
| 2.1 | MSA | 12:42 PM |
| 2 | MGP | — |
| 0 | AMH | 12:23 PM |
| 2 | MGP | — |
| 2 | MGP | — |
| 0.1 | MWM | — |
| 0.1 | MWL | — |
Properties (3)
- custom_field_two
- 5
- customer
- LACSD
- datetime
- 2018-03-14T12:23:18-07:00
