Wastewater/Activity/PacpInspection/1.0Mar 13, 2018, 06:15 PM
Section#2_B O581_B 0580__3132018__G6969.mp4
- Date
- 03/13/2018
- W/O
- 0694143
- Weather
- Dry
- Operator/Surveyor
- FRANKLIN
- Sewer ID
- Z00104
- PipeID
- P09152
- Time
- 11:15 AM
- Certificate
- U-415-06024039
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- Not Known
- Media Label
- G6969
- Sewer Name
- B JOINT OUTFALL B - UNIT 8A
- City
- EL MONTE
- Loc. details
- Parking Lot
- Location Code
- G
- Use of Sewer
- Sanitary Sewer
- District
- District 15
- Page No.
- 22
- Purpose
- Maintenance Related
- Project
- 20180313DF_JOINT_OUTFALL_B_UNIT_8A
- Material
- Reinforced Concrete Pipe
- Shape
- Circular
- Height
- 36 in.
- Upstream MH
- B 0580
- Downstream MH
- B O581
- Dir. of Survey
- Upstream
- Length Surveyed
- 2.1 ft.
- Total Length
- 2.1 ft.
- Structural Index
- 5
- Structural Quick
- 5100
- Structural Rating
- 5
- O&M Index
- 4
- O&M Quick
- 4100
- O&M Rating
- 4
- Overall Index
- 5
- Overall Quick
- —
- Overall Rating
- 9
Observation photos (2)

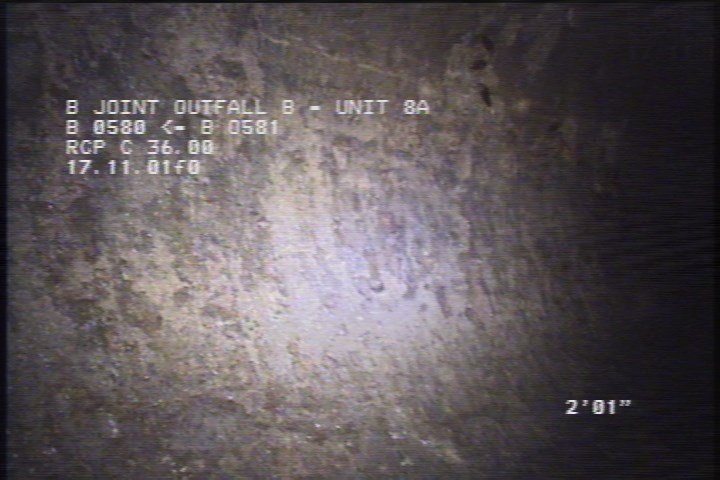

2 ft. - Surface Reinforcement Visible, from 08 to 04 o'clock, within 8 inches of joint: YES

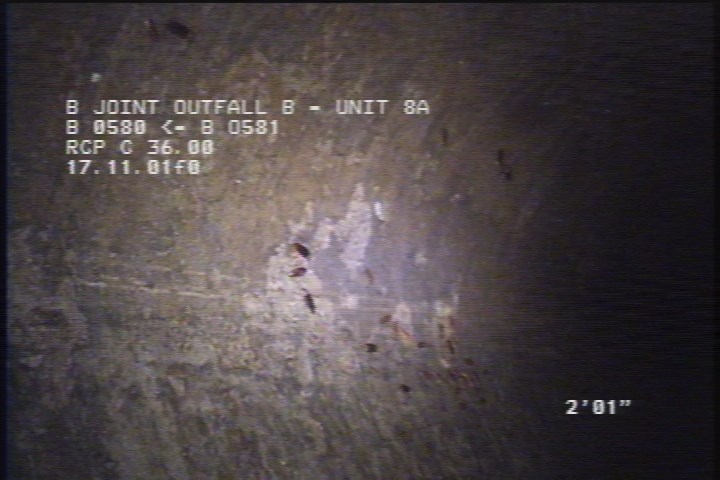

2 ft. - Surface Other, from 08 to 04 o'clock, within 8 inches of joint: YES - 35% MAG
Observations (7)
| Distance | Code | Observation |
|---|---|---|
| 0.1 | MWM | — |
| 2.1 | MSA | HIGH WATER |
| 0.1 | MWL | — |
| 2 | SRV | — |
| 2 | SZ | 35% MAG |
| 2 | LU | — |
| 0 | AMH | 11:40 AM |
Properties (4)
- additional_info
- UPLEG VIEW OF THE D/S SIPHON
- custom_field_two
- 5
- customer
- LACSD
- datetime
- 2018-03-13T11:15:50-07:00
