Wastewater/Activity/PacpInspection/1.0Mar 12, 2018, 05:16 PM
05 1535_05 1534_3122018_102540.mp4
- Date
- 03/12/2018
- W/O
- 0674248
- Weather
- Dry
- Operator/Surveyor
- SANTIAGO OBREGON
- Sewer ID
- Z00495
- PipeID
- P06757
- Time
- 10:16 AM
- Certificate
- U-1014-06022541
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- Not Known
- Media Label
- G7652
- Sewer Name
- 05 NORTH TORRANCE TRUNK
- City
- TORRANCE
- Loc. details
- Other
- Location Code
- Z
- Use of Sewer
- Sanitary Sewer
- District
- District 05
- Page No.
- 26
- Purpose
- Routine Assessment
- Project
- 20180312SHO_NORTH_TORRANCE_TRUNK
- Material
- Reinforced Concrete Pipe
- Shape
- Circular
- Height
- 24 in.
- Upstream MH
- 05 1535
- Downstream MH
- 05 1534
- Dir. of Survey
- Downstream
- Length Surveyed
- 437.8 ft.
- Total Length
- 437.8 ft.
- Structural Index
- 3
- Structural Quick
- 3121
- Structural Rating
- 5
- O&M Index
- 0
- O&M Quick
- 0000
- O&M Rating
- 0
- Overall Index
- 3
- Overall Quick
- —
- Overall Rating
- 5
Observation photos (2)

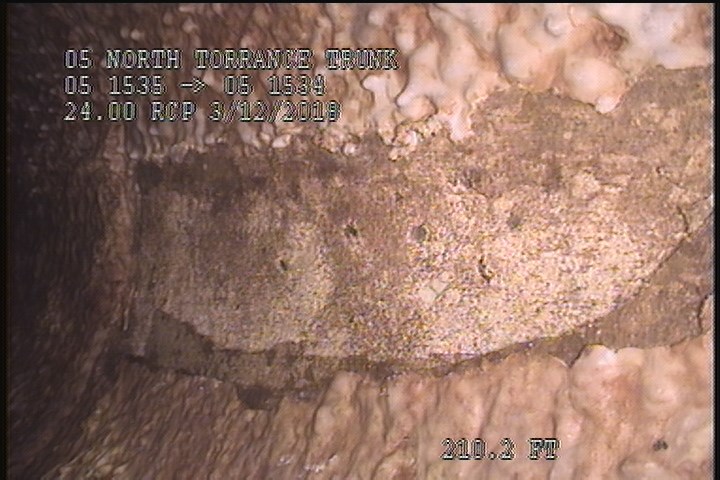

210.2 ft. - Surface Aggregate Visible, at 12 o'clock, within 8 inches of joint: NO

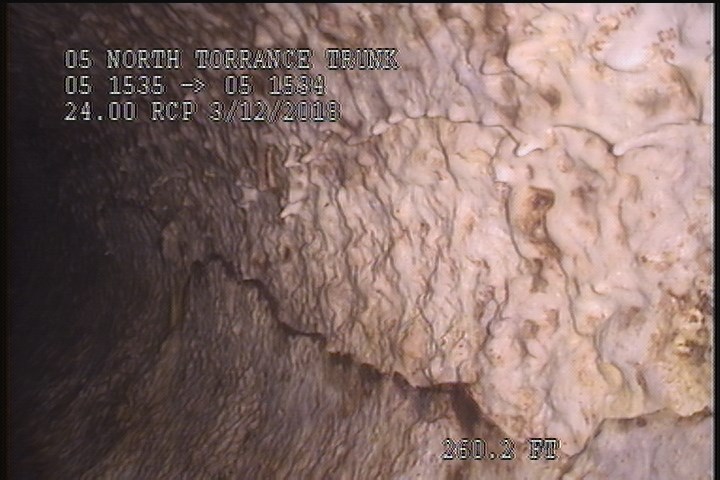

260.2 ft. - Surface Spalling, from 01 to 02 o'clock, within 8 inches of joint: NO
Observations (7)
| Distance | Code | Observation |
|---|---|---|
| 0 | MWL | — |
| 210.2 | SAV | — |
| 260.2 | SSS | — |
| 437.8 | AMH | 1040 |
| 0 | AMH | 1025 |
| 2.8 | MGO | 80% MAG COAT INTACT |
| 0 | MWM | — |
Properties (4)
- custom_field_three
- SMALL AMOUNT OF SPALLING & SAV
- custom_field_two
- 4
- customer
- LACSD
- datetime
- 2018-03-12T10:16:23-07:00
