Wastewater/Activity/PacpInspection/1.0Mar 12, 2018, 04:59 PM
Section#1_H 1491_H 1490__3122018__G6966.mp4
- Date
- 03/12/2018
- W/O
- PENDING
- Weather
- Dry
- Operator/Surveyor
- FRANKLIN
- Sewer ID
- Z01206
- PipeID
- P16451
- Time
- 9:59 AM
- Certificate
- U-415-06024039
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- Not Known
- Media Label
- G6966
- Sewer Name
- H JOINT OUTFALL H - UNIT 8M RELIEF
- City
- WEST COVINA
- Loc. details
- Light Highway
- Location Code
- C
- Use of Sewer
- Sanitary Sewer
- District
- District 22
- Page No.
- 30
- Purpose
- Routine Assessment
- Project
- 20180312DF_JOINT_OUTFALL_H_UNIT_8M_RELIEF
- Material
- Reinforced Concrete Pipe
- Shape
- Circular
- Height
- 36 in.
- Upstream MH
- H 1491
- Downstream MH
- H 1490
- Dir. of Survey
- Downstream
- Length Surveyed
- 626 ft.
- Total Length
- 626 ft.
- Structural Index
- 3
- Structural Quick
- 3X2X
- Structural Rating
- 631
- O&M Index
- 0
- O&M Quick
- 0000
- O&M Rating
- 0
- Overall Index
- 3
- Overall Quick
- —
- Overall Rating
- 631
Observation photos (5)

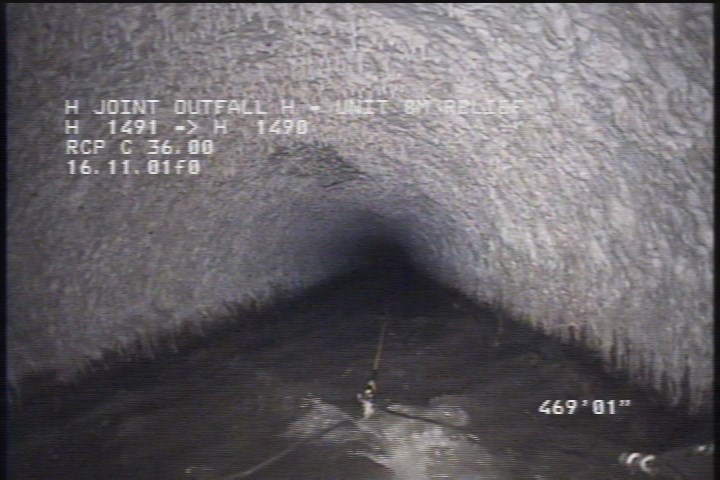

2 ft. - Surface Other Chemical, from 08 to 04 o'clock, within 8 inches of joint: YES, Start - 90% MAG

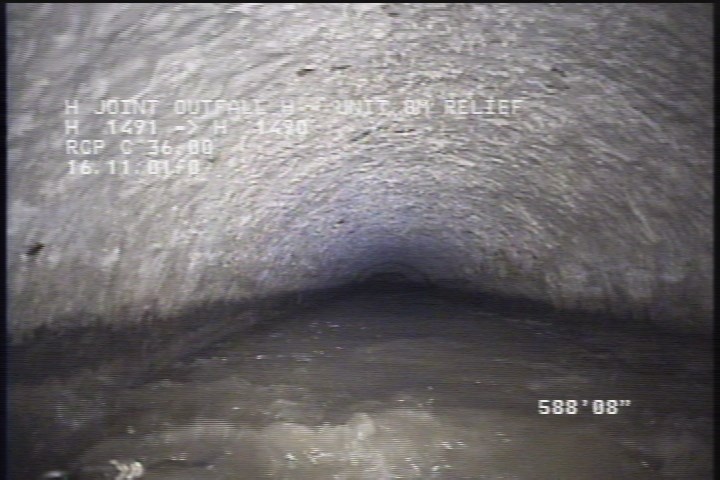

587.8 ft. - Water Level, Sag in pipe, 40 %of cross sectional area, Start

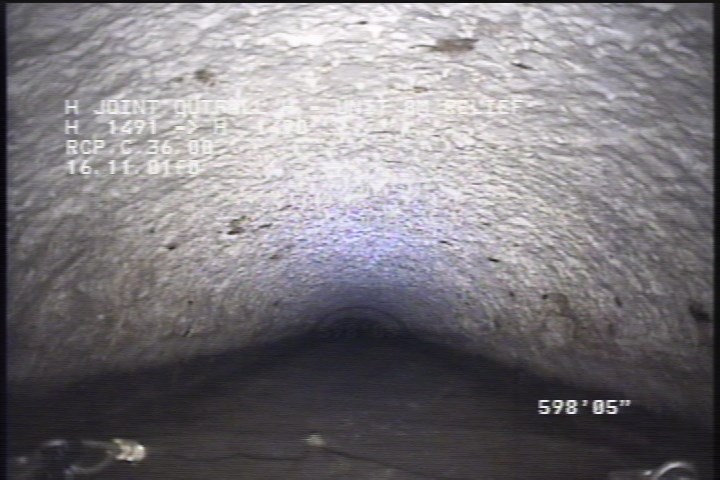

598.4 ft. - General Photograph - SAG

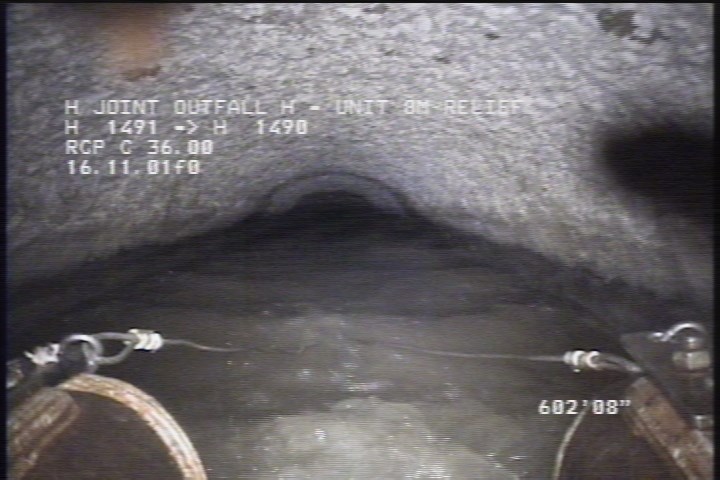

626 ft. - Surface Other Chemical, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish - 90% MAG

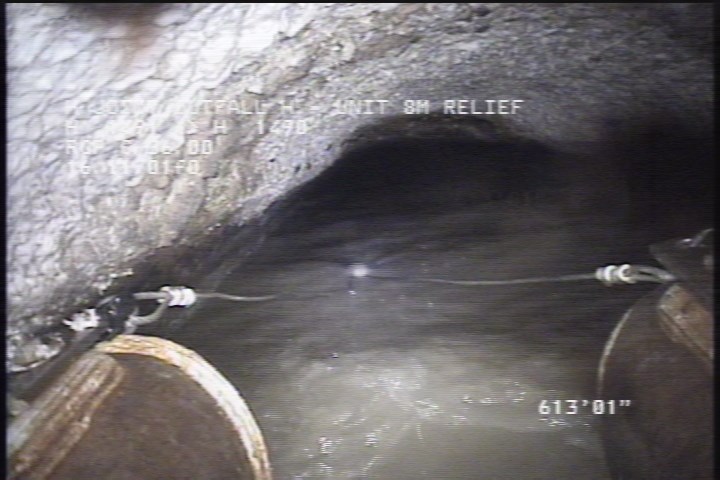

626 ft. - Survey Abandoned - SAG
Observations (13)
| Distance | Code | Observation |
|---|---|---|
| 2 | CM | — |
| 626 | SSS | — |
| 0 | AMH | 10:03 AM |
| 626 | CM | — |
| 626 | SZC | 90% MAG |
| 626 | MSA | SAG |
| 2 | SSS | — |
| 598.4 | MGP | SAG |
| 0.1 | MWM | — |
| 587.8 | MWLS | — |
| 626 | MWLS | — |
| 2 | SZC | 90% MAG |
| 0.1 | MWL | — |
Properties (3)
- custom_field_two
- 5
- customer
- LACSD
- datetime
- 2018-03-12T09:59:55-07:00
