Wastewater/Activity/PacpInspection/1.0Mar 12, 2018, 07:59 PM
Section#1_02 0007_02 0006__3122018__G6967.mp4
- Date
- 03/12/2018
- W/O
- PENDING
- Weather
- Dry
- Operator/Surveyor
- FRANKLIN
- Sewer ID
- Z00234
- PipeID
- P03033
- Time
- 12:59 PM
- Certificate
- U-415-06024039
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- Not Known
- Media Label
- G6967
- Sewer Name
- 02 ARTESIA EXTENSION TRUNK
- City
- BELLFLOWER
- Loc. details
- Light Highway
- Location Code
- C
- Use of Sewer
- Sanitary Sewer
- District
- District 02
- Page No.
- 38
- Purpose
- Maintenance Related
- Project
- 20180312DF_ARTESIA_EXTENSION_TRUNK
- Material
- Vitrified Clay Pipe
- Shape
- Circular
- Height
- 21 in.
- Upstream MH
- 02 0007
- Downstream MH
- 02 0006
- Dir. of Survey
- Downstream
- Length Surveyed
- 356 ft.
- Total Length
- 356 ft.
- Structural Index
- 0
- Structural Quick
- 0000
- Structural Rating
- 0
- O&M Index
- 2
- O&M Quick
- 2100
- O&M Rating
- 2
- Overall Index
- 2
- Overall Quick
- —
- Overall Rating
- 2
Observation photos (4)

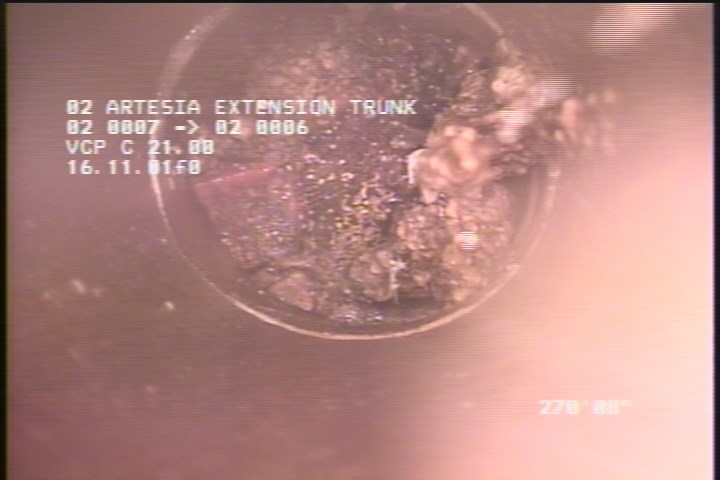

0.1 ft. - Water Mark, 35 %of cross sectional area

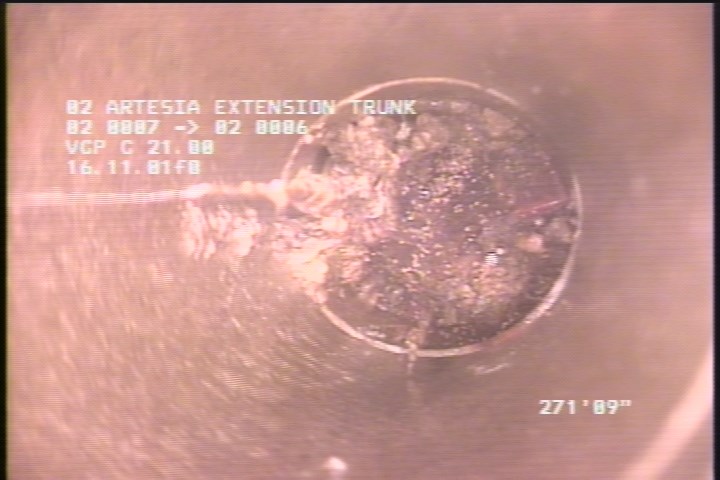

270.7 ft. - Tap Factory Made Defective, at 12 o'clock, -, within 8 inches of joint: YES, 4" - POSSIBLY COLLAPSED/BROKEN

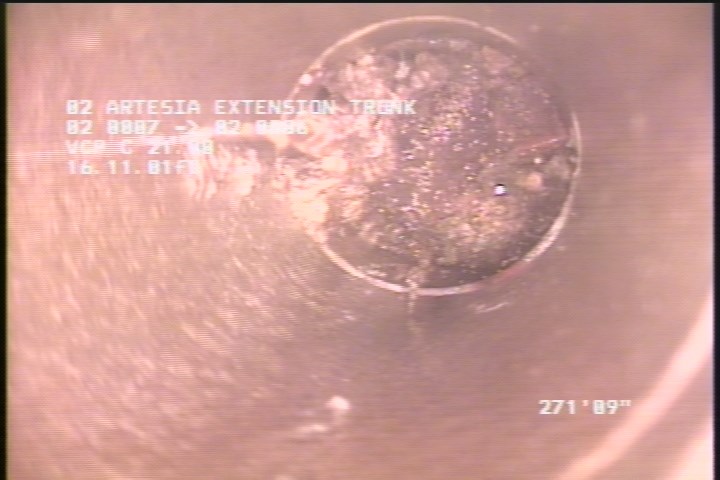

316.7 ft. - General Photograph

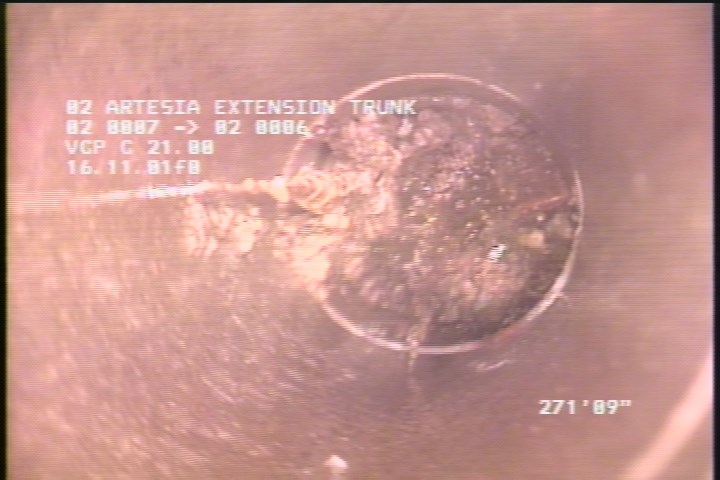

356 ft. - Downstream Manhole, Survey Ends - 1:33 PM
Observations (6)
| Distance | Code | Observation |
|---|---|---|
| 316.7 | MGP | — |
| 356 | AMH | 1:33 PM |
| 0 | AMH | 1:03 PM |
| 0.1 | MWM | — |
| 270.7 | TFD | POSSIBLY COLLAPSED/BROKEN |
| 0.1 | MWL | — |
Properties (5)
- additional_info
- SINK HOLE
- custom_field_three
- EMERGENCY INSPECTION
- custom_field_two
- 5
- customer
- LACSD
- datetime
- 2018-03-12T12:59:18-07:00
