Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Mar 9, 2018, 07:20 PM

  • Section#1_J 0342_J 0341__392018__H0769.mp4

Date
03/09/2018
W/O
0689827
Weather
Dry
Operator/Surveyor
SANTIAGO OBREGON
Sewer ID
Z00059
PipeID
P11586
Time
11:20 AM
Certificate
U-1014-06660254
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
H0769
Sewer Name
J JOINT OUTFALL J - UNIT 1G
City
PV
Loc. details
Other
Location Code
Z
Use of Sewer
Sanitary Sewer
District
District 30
Page No.
12
Purpose
Routine Assessment
Project
20180309SHO_JOINT_OUTFALL_J_UNIT_1G
Material
Vitrified Clay Pipe
Shape
Circular
Height
10 in.
Upstream MH
J 0342
Downstream MH
J 0341
Dir. of Survey
Downstream
Length Surveyed
89 ft.
Total Length
89 ft.
Structural Index
4
Structural Quick
5341
Structural Rating
25
O&M Index
4
O&M Quick
4100
O&M Rating
4
Overall Index
4
Overall Quick
—
Overall Rating
29
Pipe schematic from manhole J 0342 to J 0341
MH: J 0342MH: J 0341downstream0 ft. MWM - Water Mark, 30 %of cross sectional area0 ft. AMH - Upstream Manhole, Survey Begins - 11250 ft. MWL - Water Level, 20 %of cross sectional area0 ft. MGO - General Observation - ACTIVE CONNECTION IN THE MH @ 7 O CLOCK14.5 ft. CM - Crack Multiple, from 10 to 02 o'clock, within 8 inches of joint: YES27 ft. B - Broken, at 12 o'clock, within 8 inches of joint: NO, 6" - REPAIR IS VISIBLE39 ft. B - Broken, from 01 to 04 o'clock, within 8 inches of joint: YES44.2 ft. B - Broken, from 10 to 02 o'clock, within 8 inches of joint: YES48 ft. B - Broken, from 09 to 01 o'clock, within 8 inches of joint: YES50 ft. MCU - Camera Underwater59 ft. B - Broken, from 04 to 05 o'clock, within 8 inches of joint: YES89 ft. AMH - Downstream Manhole, Survey Ends

Observation photos (4)

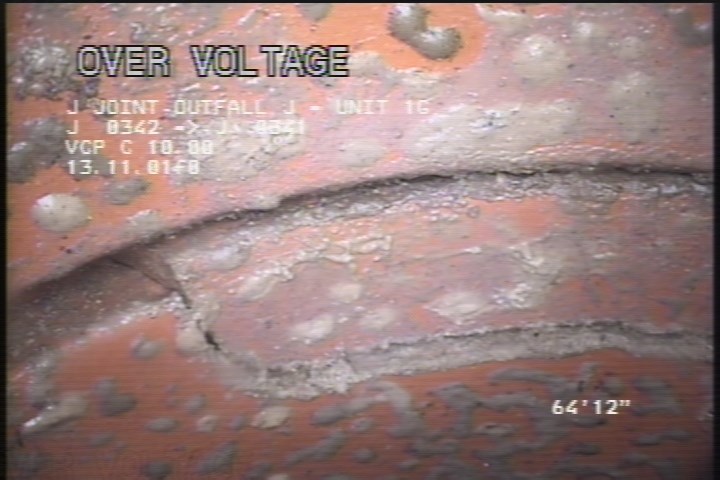

  • Broken, from 01 to 04 o'clock, within 8 inches of joint: YES

    39 ft. - Broken, from 01 to 04 o'clock, within 8 inches of joint: YES

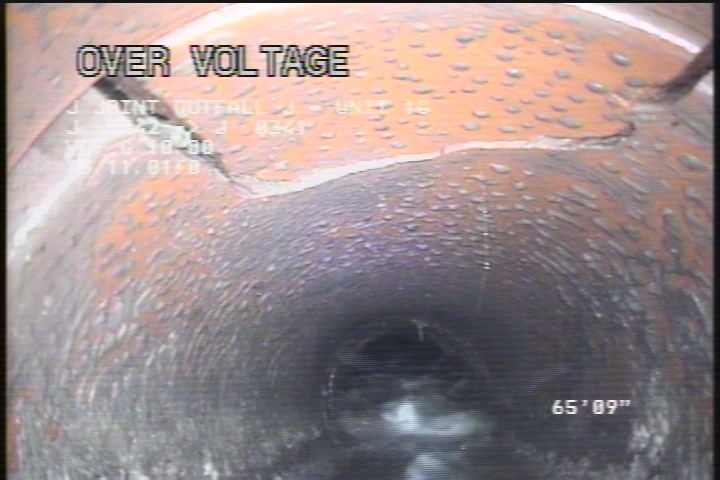

  • Broken, from 10 to 02 o'clock, within 8 inches of joint: YES

    44.2 ft. - Broken, from 10 to 02 o'clock, within 8 inches of joint: YES

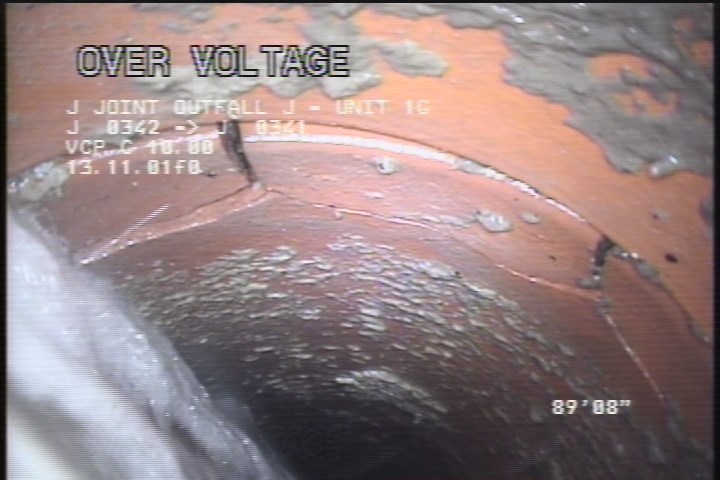

  • Broken, from 09 to 01 o'clock, within 8 inches of joint: YES

    48 ft. - Broken, from 09 to 01 o'clock, within 8 inches of joint: YES

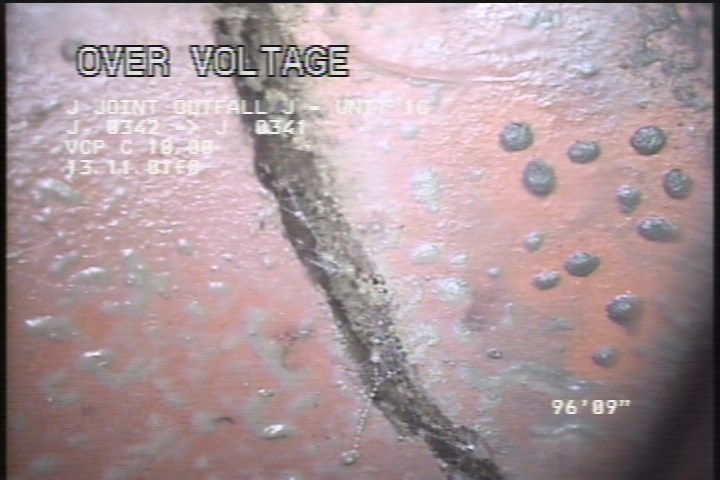

  • Broken, from 04 to 05 o'clock, within 8 inches of joint: YES

    59 ft. - Broken, from 04 to 05 o'clock, within 8 inches of joint: YES

All inspections of P11586Work order 0689827

Observations (12)

DistanceCodeObservation
0MWM—
89AMH—
0AMH1125
27BREPAIR IS VISIBLE
50MCU—
14.5CM—
44.2B—
0MWL—
0MGOACTIVE CONNECTION IN THE MH @ 7 O CLOCK
59B—
39B—
48B—

Properties (4)

additional_info
FOOTAGE ON THE VIDEO IS OFF
custom_field_two
2
customer
LACSD
datetime
2018-03-09T11:20:53-08:00
