Wastewater/Activity/PacpInspection/1.0Mar 8, 2018, 09:32 PM
H 0421_H 0420_382018_134138.mp4
- Date
- 03/08/2018
- W/O
- 0691280
- Weather
- Dry
- Operator/Surveyor
- FRANKLIN
- Sewer ID
- Z00180
- PipeID
- P10876
- Time
- 1:32 PM
- Certificate
- U-415-06024039
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- Not Known
- Media Label
- G7650
- Sewer Name
- H JOINT OUTFALL H - UNIT 5D
- City
- EL MONTE
- Loc. details
- Parking Lot
- Location Code
- G
- Use of Sewer
- Sanitary Sewer
- District
- District 15
- Page No.
- 27
- Purpose
- Routine Assessment
- Project
- 20180308DF_JOINT_OUTFALL_H_UNIT_5D
- Material
- Reinforced Concrete Pipe
- Shape
- Circular
- Height
- 33 in.
- Upstream MH
- H 0421
- Downstream MH
- H 0420
- Dir. of Survey
- Downstream
- Length Surveyed
- 496.1 ft.
- Total Length
- 496.1 ft.
- Structural Index
- 0
- Structural Quick
- 0000
- Structural Rating
- 0
- O&M Index
- 0
- O&M Quick
- 0000
- O&M Rating
- 0
- Overall Index
- 0
- Overall Quick
- —
- Overall Rating
- 0
Observation photos (4)

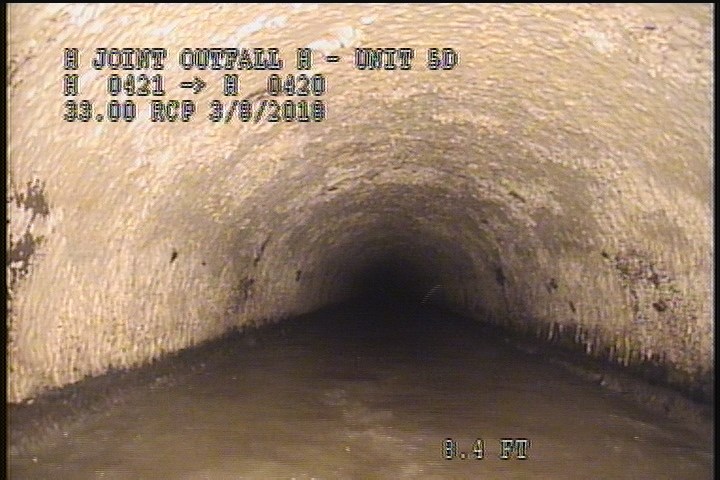

2 ft. - Surface Other, from 08 to 04 o'clock, within 8 inches of joint: YES, Start - 75% MAG

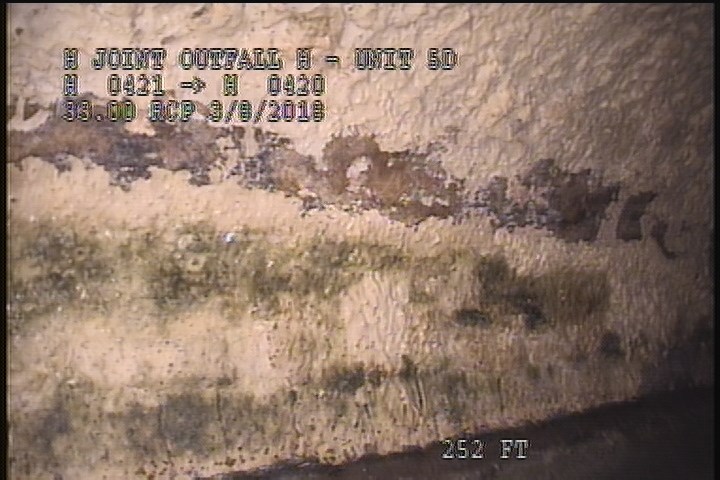

252 ft. - General Photograph

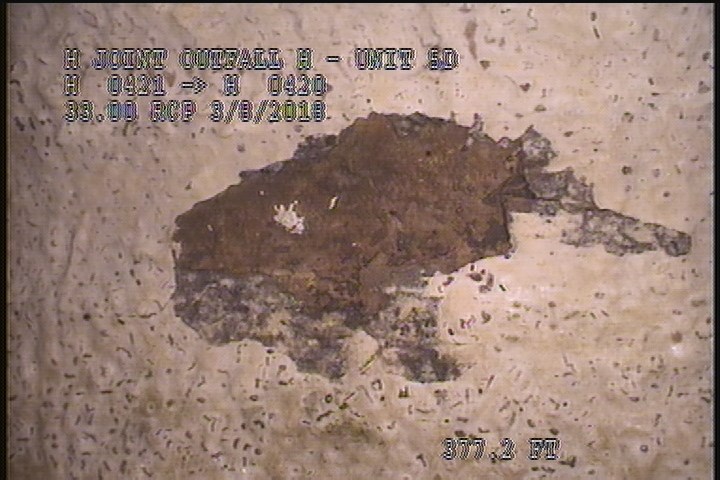

377.2 ft. - General Photograph

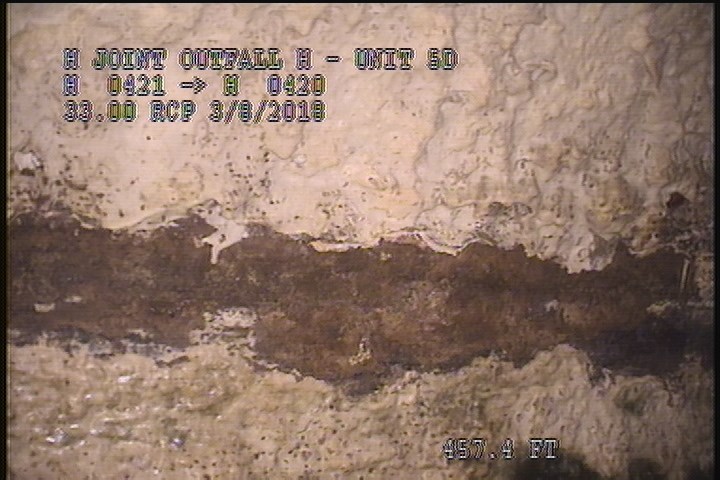

457.4 ft. - General Photograph
Observations (10)
| Distance | Code | Observation |
|---|---|---|
| 252 | MGP | — |
| 494.1 | MGO | Conn. @ Mh, 9 O' Clock. OPEN |
| 377.2 | MGP | — |
| 496.1 | AMH | 1:57 PM |
| 0.1 | MWL | — |
| 0 | AMH | 1:40 PM |
| 491.2 | SZ | 75% MAG |
| 2 | SZ | 75% MAG |
| 457.4 | MGP | — |
| 0.1 | MWM | — |
Properties (3)
- custom_field_two
- 4
- customer
- LACSD
- datetime
- 2018-03-08T13:32:17-08:00
