Wastewater/Activity/PacpInspection/1.0Nov 7, 2017, 11:23 AM
05 2489_05 2488 _11072017_032415.mp4
- Date
- 11/07/2017
- W/O
- 668788
- Weather
- Dry
- Operator/Surveyor
- S. LOPEZ
- Sewer ID
- Z00462
- PipeID
- P20884
- Time
- 3:23 AM
- Certificate
- U-111-11880
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- No Pre-Cleaning
- Media Label
- K5212
- Sewer Name
- 05 INGLEWOOD TRUNK #1 RELIEF
- City
- INGLEWOOD
- Loc. details
- Other
- Location Code
- Z
- Use of Sewer
- Sanitary Sewer
- District
- District 05
- Page No.
- 05
- Purpose
- Routine Assessment
- Project
- WO_668788_TV05326_NOV2017
- Sewer Type
- Gravity
- Material
- Vitrified Clay Pipe
- Shape
- Circular
- Height
- 15 in.
- Width
- 15 in.
- Upstream MH
- 05 2489
- Downstream MH
- 05 2488
- Dir. of Survey
- Downstream
- Length Surveyed
- 363.8 ft.
- Total Length
- 363.8 ft.
- Structural Index
- 5
- Structural Quick
- 5200
- Structural Rating
- 10
- O&M Index
- 2
- O&M Quick
- 2M00
- O&M Rating
- 144
- Overall Index
- 2
- Overall Quick
- —
- Overall Rating
- 154
Observation photos (3)

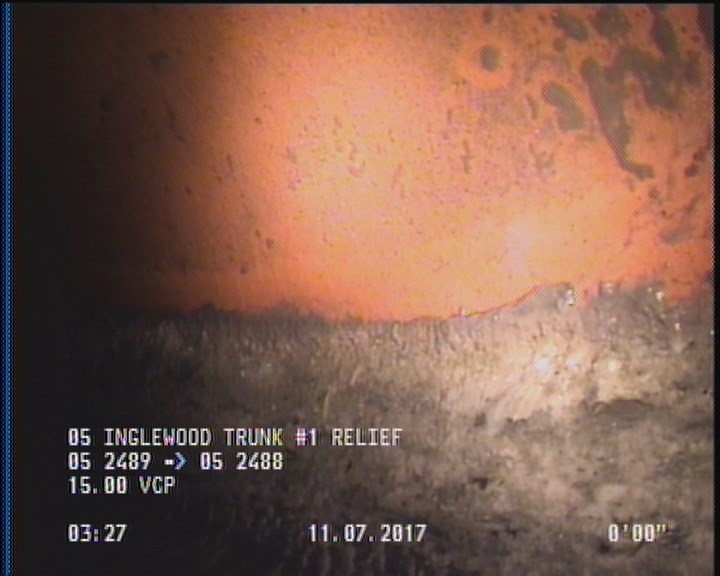

2 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 03 to 09 o'clock, , within 8 inches of joint: YES, Start

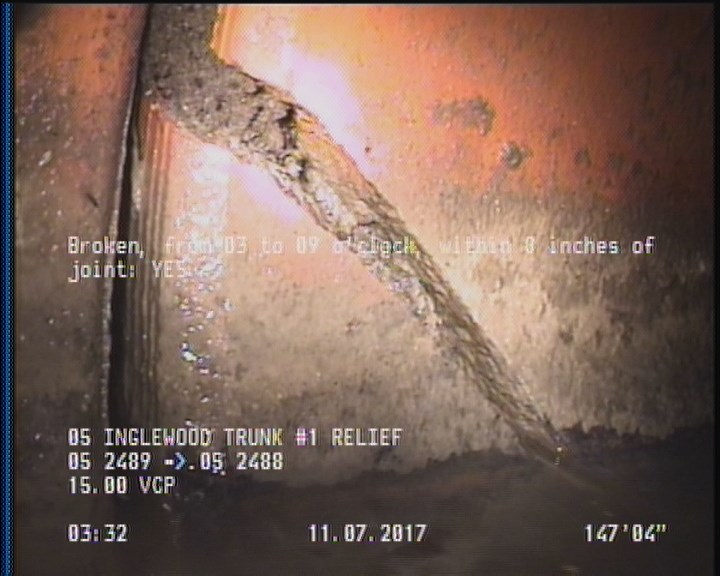

147.3 ft. - Broken, from 03 to 09 o'clock, within 8 inches of joint: YES

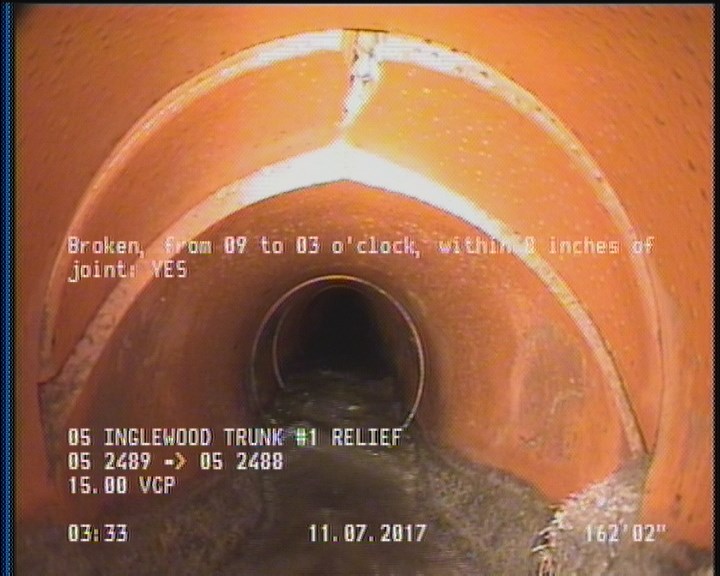

162.1 ft. - Broken, from 09 to 03 o'clock, within 8 inches of joint: YES
Observations (9)
| Distance | Code | Observation |
|---|---|---|
| 0 | MWM | — |
| 162.1 | B | — |
| 0 | MWL | — |
| 86.8 | TFA | — |
| 361.3 | DAGS | — |
| 0 | AMH | 05 2489 |
| 363.8 | AMH | 05 2488 |
| 147.3 | B | — |
| 2 | DAGS | — |
Properties (5)
- additional_info
- SC346083
- custom_field_two
- 1
- customer
- LACSD
- datetime
- 2017-11-07T03:23:58-08:00
- year_laid
- 35144
