Wastewater/Activity/PacpInspection/1.0Nov 7, 2017, 11:38 AM
05 0524_05 2489 _11072017_034741.mp4
- Date
- 11/07/2017
- W/O
- 668788
- Weather
- Dry
- Operator/Surveyor
- S. LOPEZ
- Sewer ID
- Z00462
- PipeID
- P20885
- Time
- 3:38 AM
- Certificate
- U-111-11880
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- No Pre-Cleaning
- Media Label
- K5212
- Sewer Name
- 05 INGLEWOOD TRUNK #1 RELIEF
- City
- INGLEWOOD
- Loc. details
- Other
- Location Code
- Z
- Use of Sewer
- Sanitary Sewer
- District
- District 05
- Page No.
- 05
- Purpose
- Routine Assessment
- Project
- WO_668788_TV05326_NOV2017
- Sewer Type
- Gravity
- Material
- Vitrified Clay Pipe
- Shape
- Circular
- Height
- 15 in.
- Width
- 15 in.
- Upstream MH
- 05 2489
- Downstream MH
- 05 0524
- Dir. of Survey
- Upstream
- Length Surveyed
- 379.7 ft.
- Total Length
- 379.7 ft.
- Structural Index
- 3
- Structural Quick
- 3100
- Structural Rating
- 3
- O&M Index
- 2
- O&M Quick
- 2N00
- O&M Rating
- 150
- Overall Index
- 2
- Overall Quick
- —
- Overall Rating
- 153
Observation photos (2)

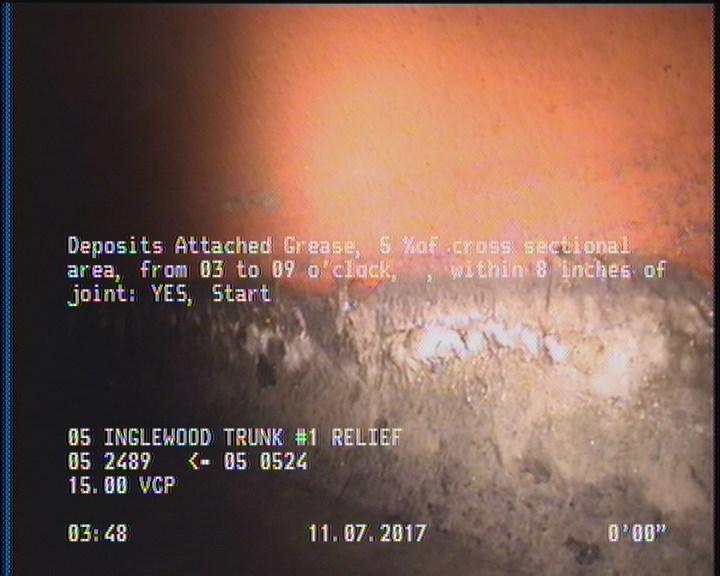

2 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 03 to 09 o'clock, , within 8 inches of joint: YES, Start

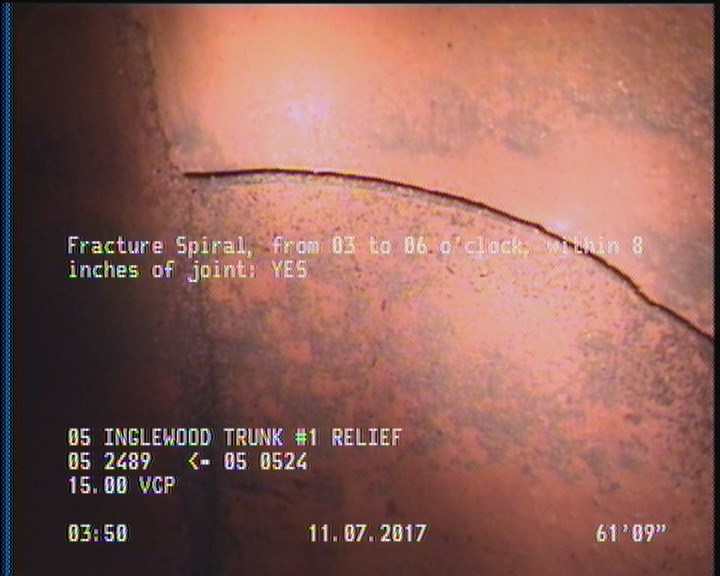

61.7 ft. - Fracture Spiral, from 03 to 06 o'clock, within 8 inches of joint: YES
Observations (9)
| Distance | Code | Observation |
|---|---|---|
| 353.8 | TB | — |
| 0 | MWL | — |
| 0 | AMH | 05 2489 |
| 2 | DAGS | — |
| 0 | MWM | — |
| 379.7 | AMH | 05 0524 |
| 378.7 | DAGS | — |
| 379.7 | MGO | STOP LOG CONNECTION AT MH 3 O'CLOCK |
| 61.7 | FS | — |
Properties (4)
- additional_info
- SC346083
- custom_field_two
- 2
- customer
- LACSD
- datetime
- 2017-11-07T03:38:42-08:00
