Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Nov 6, 2017, 11:26 AM

  • B 0457 N_B 0456 N_06112017_033718.mpg

Date
11/06/2017
W/O
668759
Weather
Dry
Operator/Surveyor
ERUIZ
Sewer ID
Z00093
PipeID
P20279
Time
3:26 AM
Certificate
123456
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
K5125
Sewer Name
B JOINT OUTFALL B - UNIT 5C
City
PASADENA
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 16
Page No.
11
Purpose
Routine Assessment
Project
WO_668759_TV16079_NOV2017
Sewer Type
Siphon
Material
Reinforced Concrete Pipe
Shape
Circular
Height
24 in.
Width
24 in.
Upstream MH
B 0457 N
Downstream MH
B 0456 N
Dir. of Survey
Downstream
Length Surveyed
2 ft.
Total Length
2 ft.
Structural Index
3
Structural Quick
3100
Structural Rating
3
O&M Index
4
O&M Quick
4100
O&M Rating
4
Overall Index
4
Overall Quick
—
Overall Rating
7
Pipe schematic from manhole B 0457 N to B 0456 N
MH: B 0457 NMH: B 0456 Ndownstream0 ft. MWL - Water Level, 30 %of cross sectional area0 ft. MWM - Water Mark, 60 %of cross sectional area0 ft. AMH - Upstream Manhole, Survey Begins2 ft. MGO - General Observation - DEBRIS IN LINE2 ft. SAP - Surface Aggregate Projecting, from 10 to 02 o'clock, within 8 inches of joint: YES2 ft. MSA - Survey Abandoned - VIEW OF THE D/S SIPHON FROM THE U/S MH

Observation photos (2)

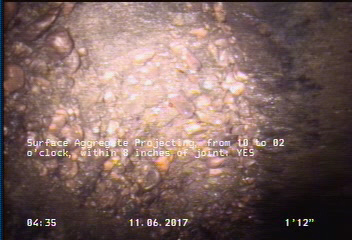

  • Surface Aggregate Projecting, from 10 to 02 o'clock, within 8 inches of joint: YES

    2 ft. - Surface Aggregate Projecting, from 10 to 02 o'clock, within 8 inches of joint: YES

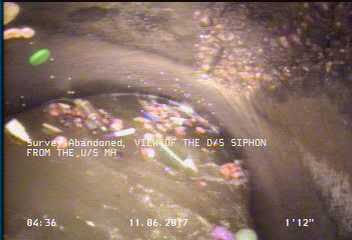

  • Survey Abandoned - VIEW OF THE D/S SIPHON FROM THE U/S MH

    2 ft. - Survey Abandoned - VIEW OF THE D/S SIPHON FROM THE U/S MH

All inspections of P20279Work order 668759

Observations (6)

DistanceCodeObservation
0MWL—
2MGODEBRIS IN LINE
0MWM—
2SAP—
2MSAVIEW OF THE D/S SIPHON FROM THE U/S MH
0AMH—

Properties (3)

custom_field_two
3
customer
LACSD
datetime
2017-11-06T03:26:17-08:00
