Wastewater/Activity/PacpInspection/1.0May 20, 2015, 06:42 AM
03 0552_03 0427_19052015_234239.mp4
- Date
- 05/19/2015
- W/O
- 496943
- Weather
- Dry
- Operator/Surveyor
- B.FUGATE
- Sewer ID
- Z00406
- PipeID
- P05179
- Time
- 11:42 PM
- Certificate
- U-508-7069
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- No Pre-Cleaning
- Media Label
- K2385
- Sewer Name
- 03 WATER STREET TRUNK
- City
- LONG BEACH
- Loc. details
- Light Highway
- Location Code
- C
- Use of Sewer
- Sanitary Sewer
- District
- District 03
- Page No.
- 22
- Purpose
- Routine Assessment
- Project
- WO_496943_TV03035_2015APRIL
- Sewer Type
- GRAVITY
- Material
- Reinforced Concrete Pipe
- Lining Method
- Segmented Panel
- Shape
- Circular
- Height
- 33 in.
- Upstream MH
- 03 0427
- Downstream MH
- 03 0552
- Dir. of Survey
- Upstream
- Length Surveyed
- 68.8 ft.
- Total Length
- 68.8 ft.
- Structural Index
- 0
- Structural Quick
- 0000
- Structural Rating
- 0
- O&M Index
- 4
- O&M Quick
- 4100
- O&M Rating
- 4
- Overall Index
- 4
- Overall Quick
- —
- Overall Rating
- 4
Observation photos (3)

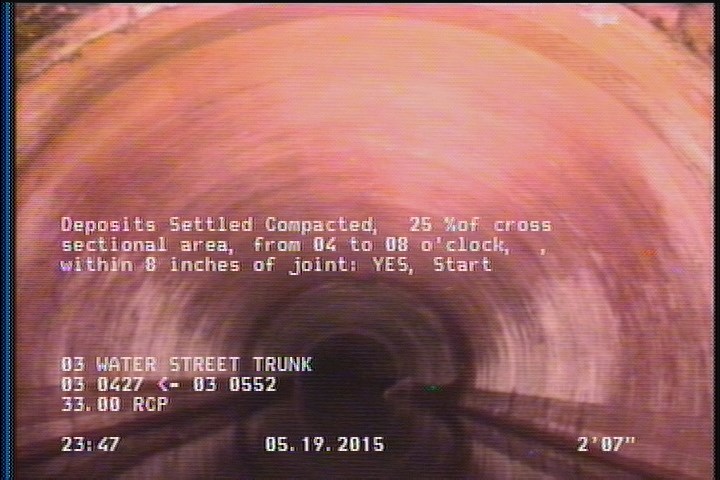

2.6 ft. - Deposits Settled Compacted, 25 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start

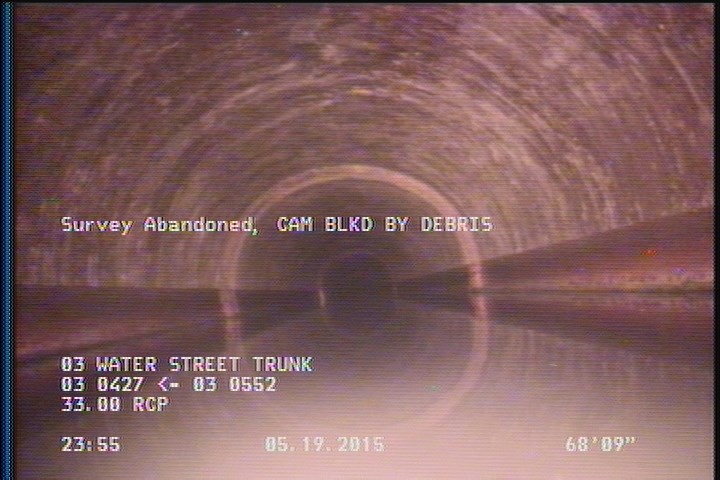

68.8 ft. - Survey Abandoned - CAM BLKD BY DEBRIS

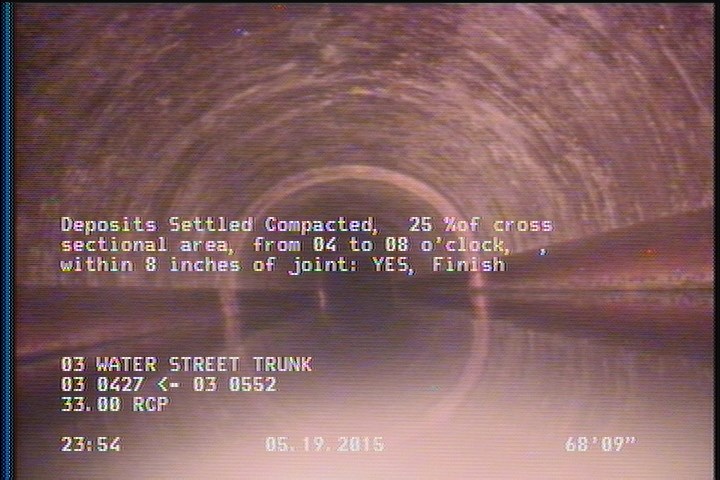

68.8 ft. - Deposits Settled Compacted, 25 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Finish
Observations (6)
| Distance | Code | Observation |
|---|---|---|
| 0 | MWM | — |
| 68.8 | MSA | CAM BLKD BY DEBRIS |
| 0 | AMH | 03 0427 |
| 0 | MWL | — |
| 2.6 | DSC | — |
| 68.8 | DSC | — |
Properties (5)
- additional_info
- SC200742
- custom_field_two
- 5
- customer
- LACSD
- datetime
- 2015-05-19T23:42:16-07:00
- lining
- FR POLY LINE
