Wastewater/Activity/PacpInspection/1.0Mar 4, 2015, 11:02 AM
03 0469_ 03 0468_20150304_042140.mp4
- Date
- 03/04/2015
- W/O
- 491456
- Weather
- Dry
- Operator/Surveyor
- N.ZAHREDDINE
- Sewer ID
- Z00387
- PipeID
- P04798
- Time
- 3:02 AM
- Certificate
- U-109-7948
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- Not Known
- Media Label
- K2144
- Sewer Name
- 03 NORTH LONG BEACH TRUNK
- City
- LONG BEACH
- Loc. details
- Light Highway
- Location Code
- C
- Use of Sewer
- Sanitary Sewer
- District
- District 03
- Page No.
- 14
- Purpose
- Routine Assessment
- Project
- WO_491456_TV03025_2015FEBRUARY
- Sewer Type
- SIPHON
- Material
- Reinforced Concrete Pipe
- Lining Method
- Segmented Panel
- Shape
- Circular
- Height
- 30 in.
- Upstream MH
- 03 0468
- Downstream MH
- 03 0469
- Dir. of Survey
- Upstream
- Length Surveyed
- 2 ft.
- Total Length
- 2 ft.
- Structural Index
- 4
- Structural Quick
- 5131
- Structural Rating
- 8
- O&M Index
- 4
- O&M Quick
- 4100
- O&M Rating
- 4
- Overall Index
- 4
- Overall Quick
- —
- Overall Rating
- 12
Observation photos (3)

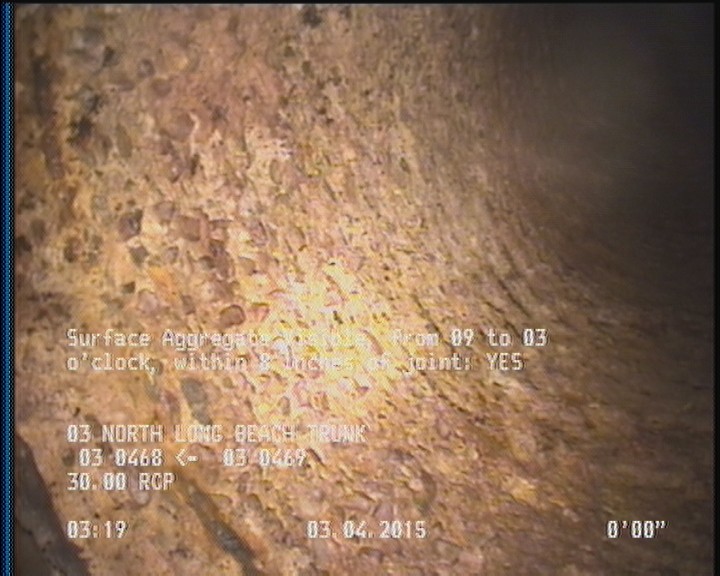

2 ft. - Surface Aggregate Visible, from 09 to 03 o'clock, within 8 inches of joint: YES

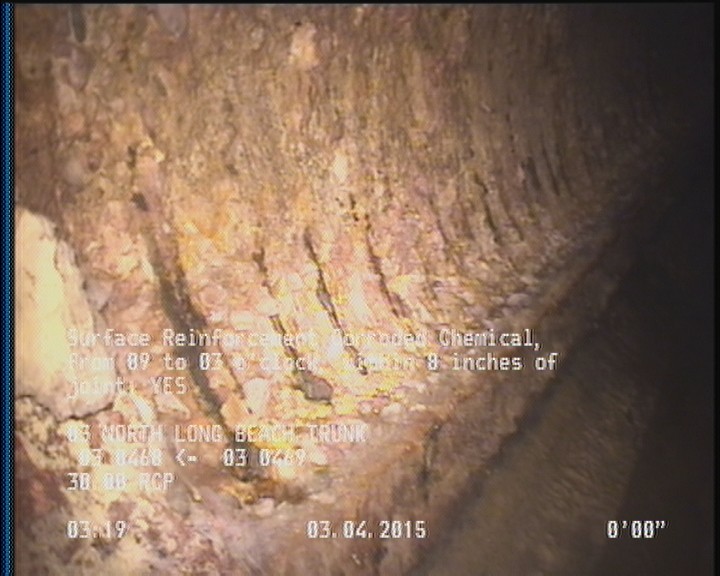

2 ft. - Surface Reinforcement Corroded Chemical, from 09 to 03 o'clock, within 8 inches of joint: YES
2 ft. - Survey Abandoned - DUE TO SIPHON
Observations (7)
| Distance | Code | Observation |
|---|---|---|
| 0 | MWL | — |
| 0 | MWM | — |
| 2 | SAV | — |
| 2 | SRCC | — |
| 0 | AMH | 03 0468 |
| 2 | MSA | DUE TO SIPHON |
| 2 | MGO | UPLEG SIPHON FROM DOWNSTREM MH |
Properties (5)
- additional_info
- SC207720
- custom_field_two
- 2
- customer
- LACSD
- datetime
- 2015-03-04T03:02:45-08:00
- year_laid
- 19981116
