Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Mar 8, 2018, 11:06 AM

  • Section#1_H 0047_H 1194__382018__G6963.mp4

Date
03/08/2018
W/O
0684704
Weather
Dry
Operator/Surveyor
MARTIN
Sewer ID
Z00161
PipeID
P25839
Time
3:06 AM
Certificate
U-1014-06022543
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
G6963
Sewer Name
H JOINT OUTFALL H - UNIT 1B
City
LYNWOOD
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 02
Page No.
26
Purpose
Routine Assessment
Project
20180308MDM_JOINT_OUTFALL_H_UNIT_1B
Material
Reinforced Concrete Pipe
Shape
Circular
Height
72.0999984741211 in.
Upstream MH
H 0047
Downstream MH
H 1194
Dir. of Survey
Downstream
Length Surveyed
865.6 ft.
Total Length
865.6 ft.
Structural Index
0
Structural Quick
0000
Structural Rating
0
O&M Index
0
O&M Quick
0000
O&M Rating
0
Overall Index
0
Overall Quick
—
Overall Rating
0
Pipe schematic from manhole H 0047 to H 1194
MH: H 0047MH: H 1194downstream0 ft. AMH - Upstream Manhole, Survey Begins - 3:20AM0 ft. MWL - Water Level, 10 %of cross sectional area0 ft. MWM - Water Mark, 20 %of cross sectional area9.9 ft. MGO - General Observation - 72.1" RCP-FR POLY LINE105.4 ft. MGO - General Observation - FR POLY LINE143.1 ft. MGO - General Observation - FR POLY LINE323.7 ft. MGO - General Observation - FR POLY LINE516 ft. MGO - General Observation - 2785.8 ft. MGO - General Observation - 72.1" FR POLY LINE865.1 ft. MGO - General Observation - MH 1194 DROP MH865.6 ft. AMH - Downstream Manhole, Survey Ends - 4:25AM

Observation photos (7)

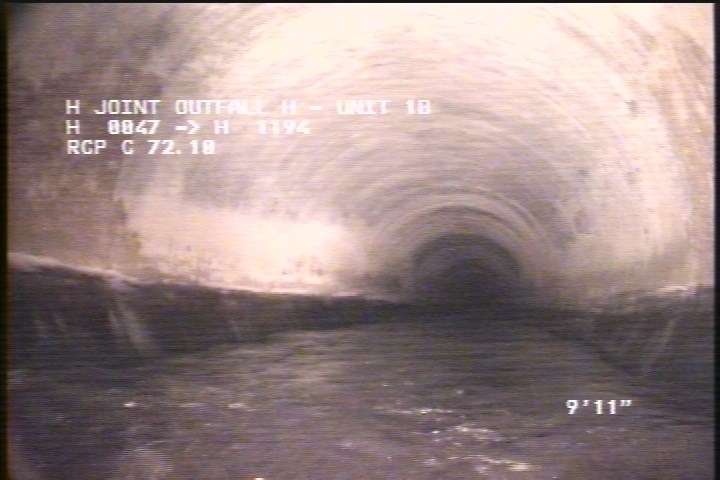

  • General Observation - 72.1" RCP-FR POLY LINE

    9.9 ft. - General Observation - 72.1" RCP-FR POLY LINE

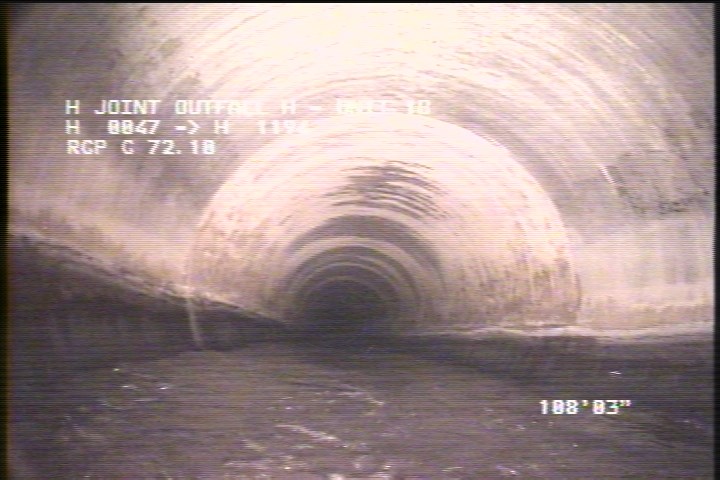

  • General Observation - FR POLY LINE

    105.4 ft. - General Observation - FR POLY LINE

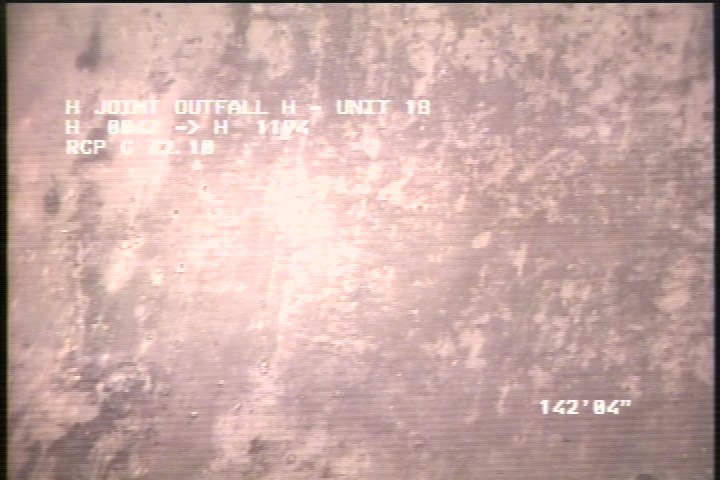

  • General Observation - FR POLY LINE

    143.1 ft. - General Observation - FR POLY LINE

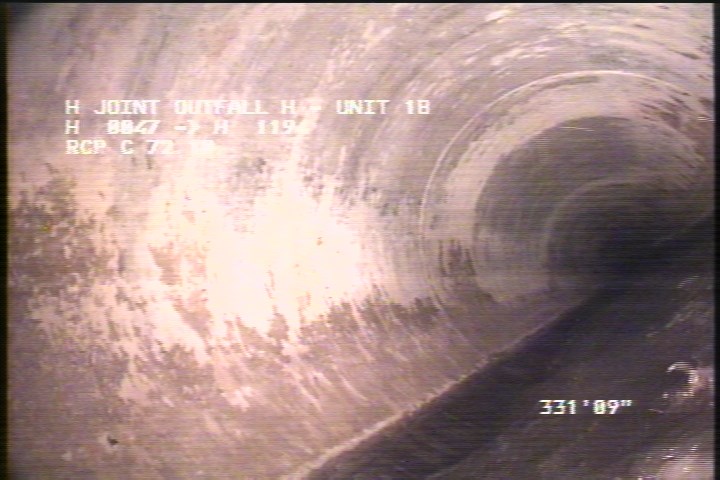

  • General Observation - FR POLY LINE

    323.7 ft. - General Observation - FR POLY LINE

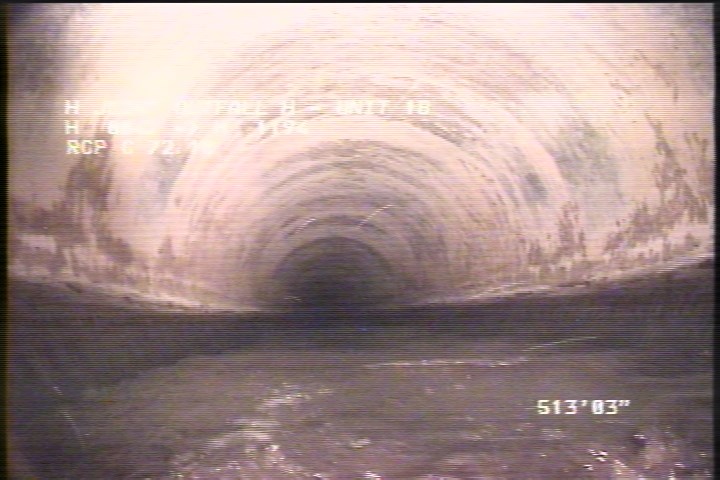

  • General Observation - 2

    516 ft. - General Observation - 2

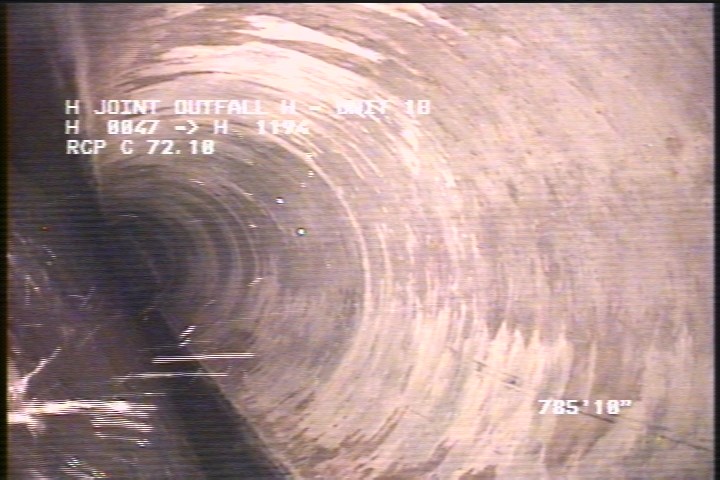

  • General Observation - 72.1" FR POLY LINE

    785.8 ft. - General Observation - 72.1" FR POLY LINE

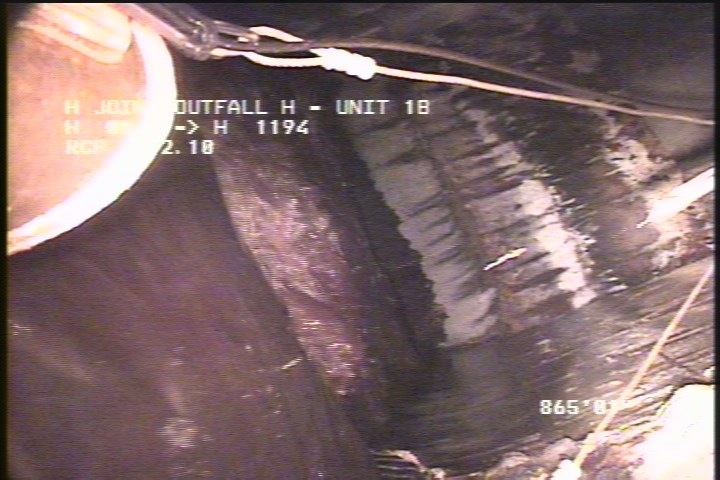

  • General Observation - MH 1194 DROP MH

    865.1 ft. - General Observation - MH 1194 DROP MH

All inspections of P25839Work order 0684704

Observations (11)

DistanceCodeObservation
865.6AMH4:25AM
516MGO2
865.1MGOMH 1194 DROP MH
323.7MGOFR POLY LINE
785.8MGO72.1" FR POLY LINE
0AMH3:20AM
105.4MGOFR POLY LINE
143.1MGOFR POLY LINE
0MWL—
0MWM—
9.9MGO72.1" RCP-FR POLY LINE

Properties (6)

custom_field_three
FR POLY LINE IN GOOD CONDITION
custom_field_two
4
customer
LACSD
datetime
2018-03-08T03:06:56-08:00
lining
FR POLY LINE
year_laid
20040227
