Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Mar 7, 2018, 12:26 PM

  • J 0309_J 0308_372018_042709.mp4

Date
03/07/2018
W/O
0684725
Weather
Dry
Operator/Surveyor
MARTIN
Sewer ID
Z00059
PipeID
P11563
Time
4:26 AM
Certificate
U-1014-06022543
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
H0768
Sewer Name
J JOINT OUTFALL J - UNIT 1G
City
PALO VERDES
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 30
Page No.
10
Purpose
Routine Assessment
Project
20180307MDM_JOINT_OUTFALL_J_UNIT_1G
Material
Reinforced Concrete Pipe
Shape
Circular
Height
18 in.
Upstream MH
J 0308
Downstream MH
J 0309
Dir. of Survey
Upstream
Length Surveyed
380.3 ft.
Total Length
380.3 ft.
Structural Index
4
Structural Quick
4100
Structural Rating
4
O&M Index
4
O&M Quick
5221
O&M Rating
12
Overall Index
4
Overall Quick
—
Overall Rating
16
Pipe schematic from manhole J 0308 to J 0309
MH: J 0308MH: J 0309upstream0 ft. AMH - Upstream Manhole, Survey Ends - 5:15AM103.6 ft. MWL - Water Level, 5 %of cross sectional area103.6 ft. DSZ - Deposits Settled Other, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: NO, Finish - SLUDGE103.6 ft. MWM - Water Mark, 30 %of cross sectional area163 ft. MWL - Water Level, 80 %of cross sectional area163 ft. MWLS - Water Level, Sag in pipe, 70 %of cross sectional area163 ft. MWM - Water Mark, 100 %of cross sectional area193.3 ft. MWL - Water Level, 30 %of cross sectional area195.2 ft. MWM - Water Mark, 80 %of cross sectional area195.2 ft. DSZ - Deposits Settled Other, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: NO, Start - SLUDGE278.3 ft. MGP - General Photograph - CIPP LINER372.3 ft. MGO - General Observation - 18" RCP & CIPP380.3 ft. MWL - Water Level, 10 %of cross sectional area380.3 ft. MWM - Water Mark, 40 %of cross sectional area380.3 ft. AMH - Downstream Manhole, Survey Begins - 4:45AM

Observation photos (5)

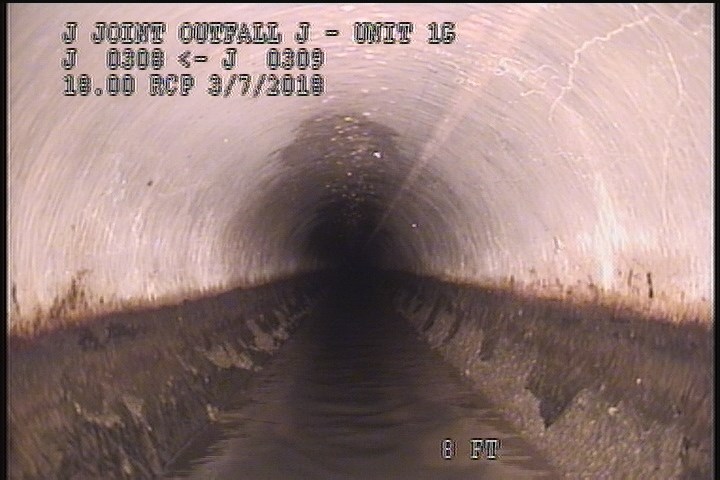

  • General Observation - 18" RCP & CIPP

    8 ft. - General Observation - 18" RCP & CIPP

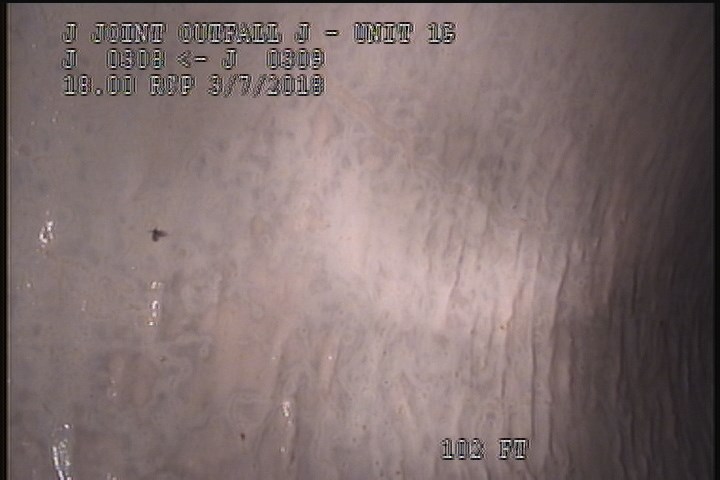

  • General Photograph - CIPP LINER

    102 ft. - General Photograph - CIPP LINER

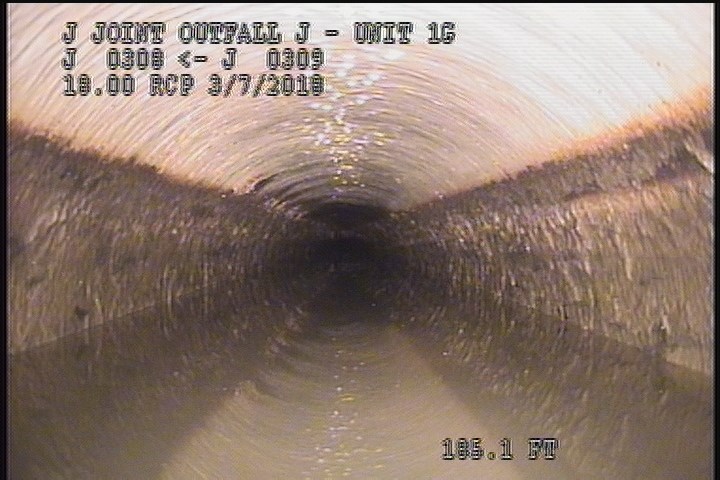

  • Water Mark, 80 %of cross sectional area

    185.1 ft. - Water Mark, 80 %of cross sectional area

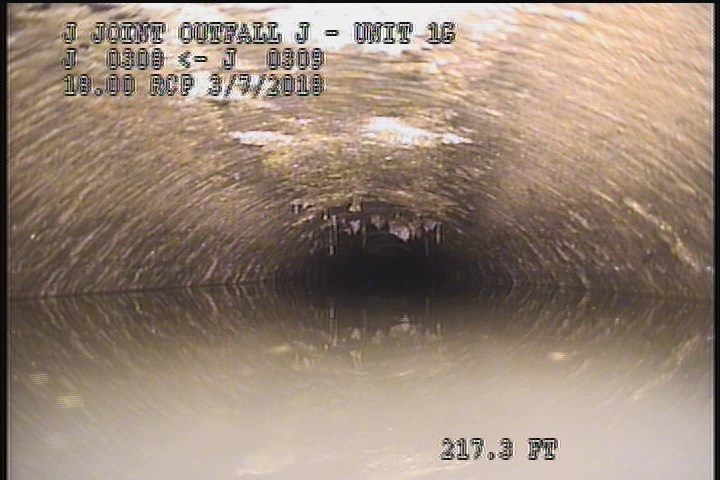

  • Water Mark, 100 %of cross sectional area

    217.3 ft. - Water Mark, 100 %of cross sectional area

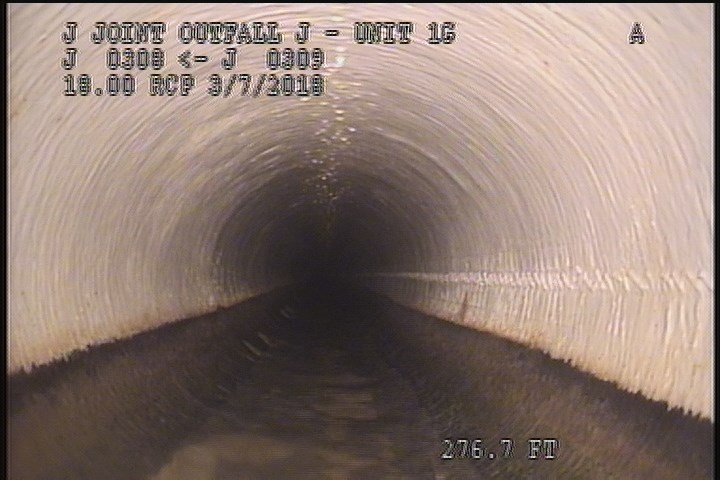

  • Water Mark, 30 %of cross sectional area

    276.7 ft. - Water Mark, 30 %of cross sectional area

All inspections of P11563Work order 0684725

Observations (15)

DistanceCodeObservation
102MGPCIPP LINER
185.1MWM—
276.7MWL—
0MWL—
217.3MWL—
217.3MWLS—
276.7DSZSLUDGE
187MWL—
185.1DSZSLUDGE
380.3AMH5:15AM
8MGO18" RCP & CIPP
0MWM—
0AMH4:45AM
217.3MWM—
276.7MWM—

Properties (5)

custom_field_three
CIPP LINER GOOD CONDITION-70% SAG IN REACH
custom_field_two
4
customer
LACSD
datetime
2018-03-07T04:26:35-08:00
lining
CIPP
