Wastewater/Activity/PacpInspection/1.0Mar 6, 2018, 08:45 AM
H 0268_H 0267_362018_010529.mp4
- Date
- 03/06/2018
- W/O
- 0693760
- Weather
- Dry
- Operator/Surveyor
- MARTIN
- Sewer ID
- Z00173
- PipeID
- P10720
- Time
- 12:45 AM
- Certificate
- U-1014-06022543
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- Not Known
- Media Label
- H0766
- Sewer Name
- H JOINT OUTFALL H - UNIT 2H
- City
- VERNON
- Loc. details
- Main Highway - Urban
- Location Code
- A
- Use of Sewer
- Sanitary Sewer
- District
- District 23
- Page No.
- 02
- Purpose
- Maintenance Related
- Project
- 20180306MDM_JOINT_OUTFALL_H_UNIT_2H
- Material
- Vitrified Clay Pipe
- Shape
- Circular
- Height
- 18 in.
- Upstream MH
- H 0267
- Downstream MH
- H 0268
- Dir. of Survey
- Upstream
- Length Surveyed
- 388.7 ft.
- Total Length
- 388.7 ft.
- Structural Index
- 0
- Structural Quick
- 0000
- Structural Rating
- 0
- O&M Index
- 3
- O&M Quick
- 3121
- O&M Rating
- 5
- Overall Index
- 3
- Overall Quick
- —
- Overall Rating
- 5
Observation photos (2)

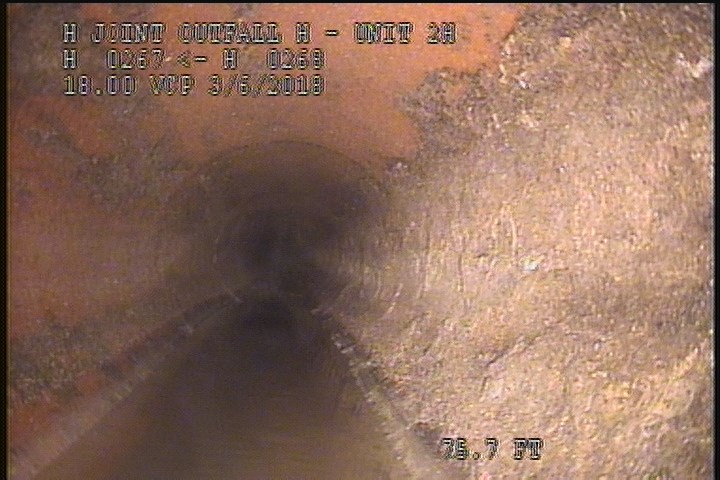

75.7 ft. - Deposits Attached Other, 15 %of cross sectional area, from 01 to 05 o'clock, , within 8 inches of joint: YES, Start - GREASE OR SCALE

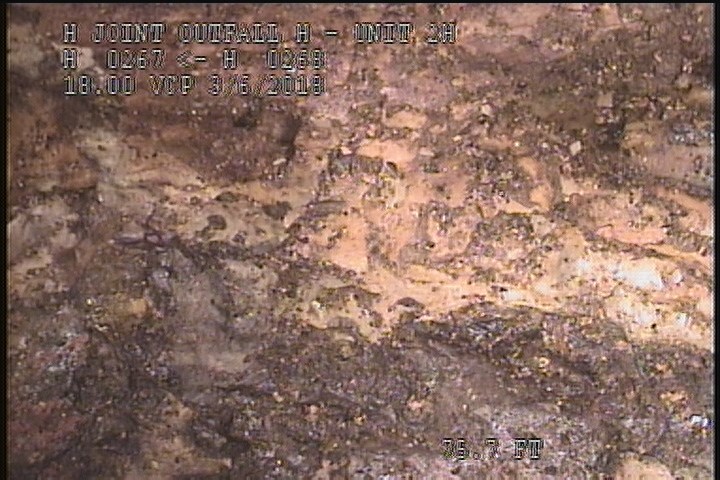

75.7 ft. - General Photograph - GREASE OR SCALE BUILD UP
Observations (15)
| Distance | Code | Observation |
|---|---|---|
| 0 | MWM | — |
| 388.4 | MGO | Conn. @ Mh, 3 O' Clock. Capped |
| 75.7 | DAZ | GREASE OR SCALE |
| 75.7 | MGP | GREASE OR SCALE BUILD UP |
| 228.8 | TF | Open |
| 303.1 | TFD | Open-95% GREASE |
| 108.9 | DAZ | GREASE OR SCALE |
| 225.5 | TFC | Capped |
| 0 | MWL | — |
| 388.7 | AMH | 1:15AM |
| 75.7 | TFC | Capped |
| 152.5 | TFC | Capped |
| 388.4 | MGO | NO MISSING PIPE IN REACH |
| 0 | AMH | 12:55AM |
| 388.4 | MGO | Conn. @ Mh, 9 O' Clock. Capped |
Properties (3)
- additional_info
- REVERSE INSPECTION-LOOKING FOR MISSING PIPE
- customer
- LACSD
- datetime
- 2018-03-06T00:45:05-08:00
