Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Mar 5, 2018, 10:13 AM

  • H 0049_H 0048_352018_035943.mp4

Date
03/05/2018
W/O
0684704
Weather
Dry
Operator/Surveyor
MARTIN
Sewer ID
Z00161
PipeID
P10499
Time
2:13 AM
Certificate
U-1014-06022543
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
H0765
Sewer Name
H JOINT OUTFALL H - UNIT 1B
City
SOUTH GATE
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 02
Page No.
26
Purpose
Routine Assessment
Project
20180305MDM_JOINT_OUTFALL_H_UNIT_1B
Material
Reinforced Concrete Pipe
Shape
Circular
Height
72.0999984741211 in.
Upstream MH
H 0048
Downstream MH
H 0047
Dir. of Survey
Downstream
Length Surveyed
209.7 ft.
Total Length
209.7 ft.
Structural Index
0
Structural Quick
0000
Structural Rating
0
O&M Index
0
O&M Quick
0000
O&M Rating
0
Overall Index
0
Overall Quick
—
Overall Rating
0
Pipe schematic from manhole H 0048 to H 0047
MH: H 0048MH: H 0047downstream0 ft. MWM - Water Mark, 20 %of cross sectional area0 ft. AMH - Upstream Manhole, Survey Begins - 4:15AM0 ft. MWL - Water Level, 10 %of cross sectional area17.1 ft. MGO - General Observation - FR POLY LINER77.9 ft. MGO - General Observation - FR POLY LINER77.9 ft. MGP - General Photograph - FR POLY LINER122.8 ft. TB - Tap Break-In, at 12 o'clock, -, within 8 inches of joint: YES, 8" - Active122.8 ft. MGO - General Observation - FR POLY LINER139.9 ft. MGO - General Observation - FR POLY LINER188.4 ft. MGO - General Observation - FR POLY LINER209.4 ft. MGO - General Observation - AREA INSIDE MH NO LINER209.7 ft. AMH - Downstream Manhole, Survey Ends - 4:30AM

Observation photos (6)

  • General Observation - FR POLY LINER

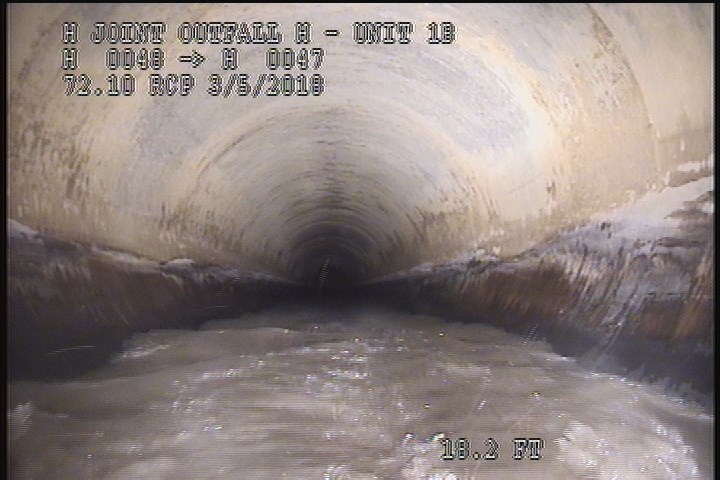

    17.1 ft. - General Observation - FR POLY LINER

  • General Observation - FR POLY LINER

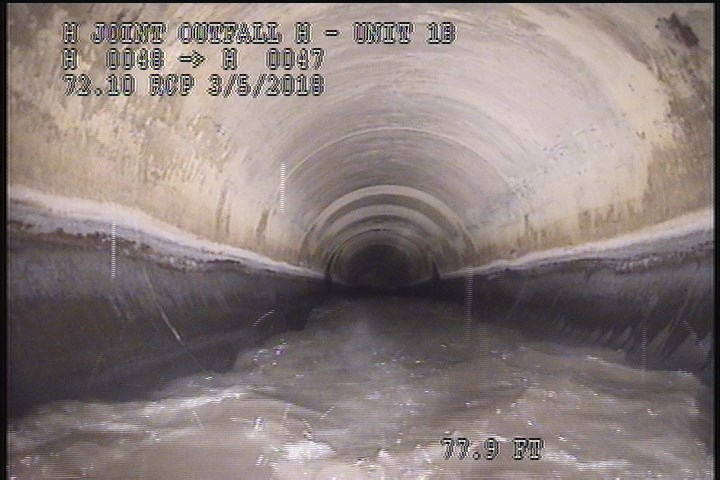

    77.9 ft. - General Observation - FR POLY LINER

  • General Photograph - FR POLY LINER

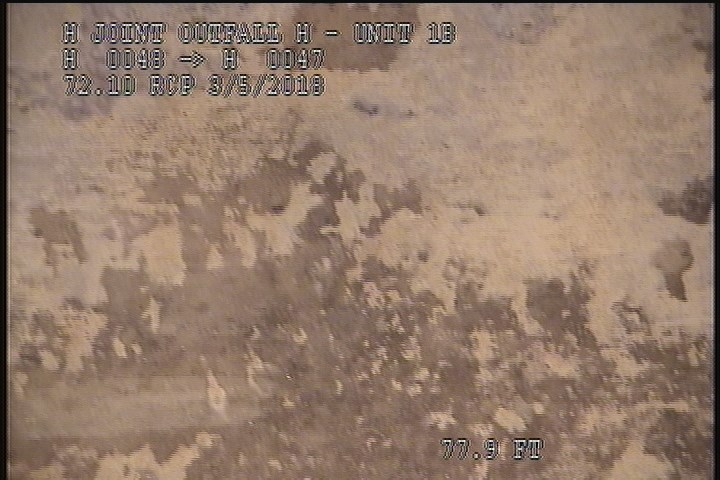

    77.9 ft. - General Photograph - FR POLY LINER

  • General Observation - FR POLY LINER

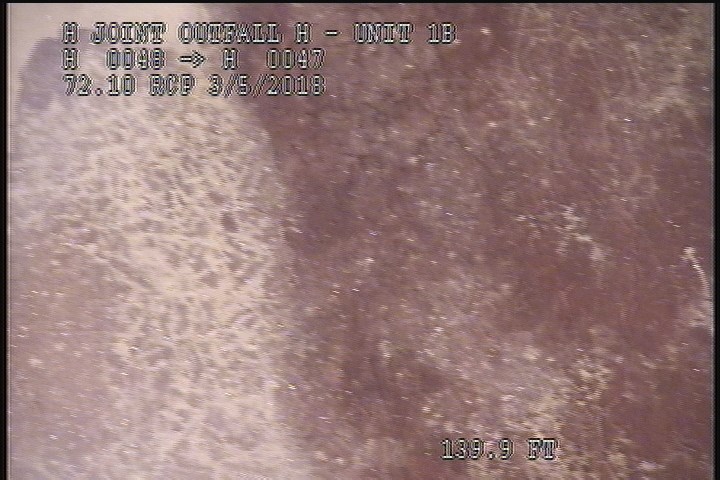

    139.9 ft. - General Observation - FR POLY LINER

  • General Observation - FR POLY LINER

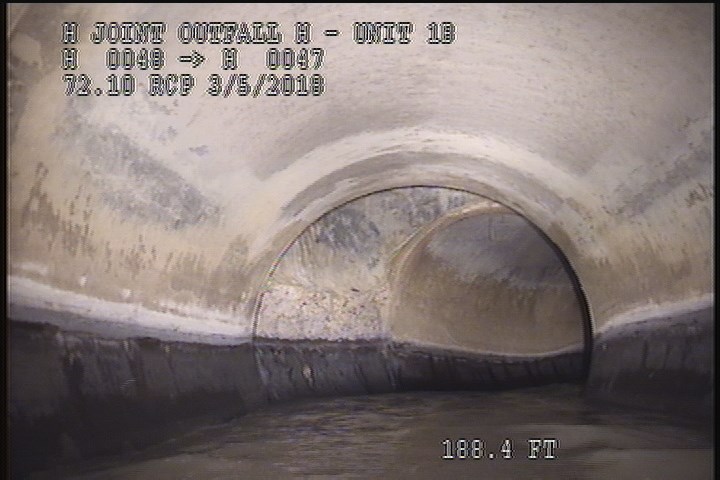

    188.4 ft. - General Observation - FR POLY LINER

  • General Observation - AREA INSIDE MH NO LINER

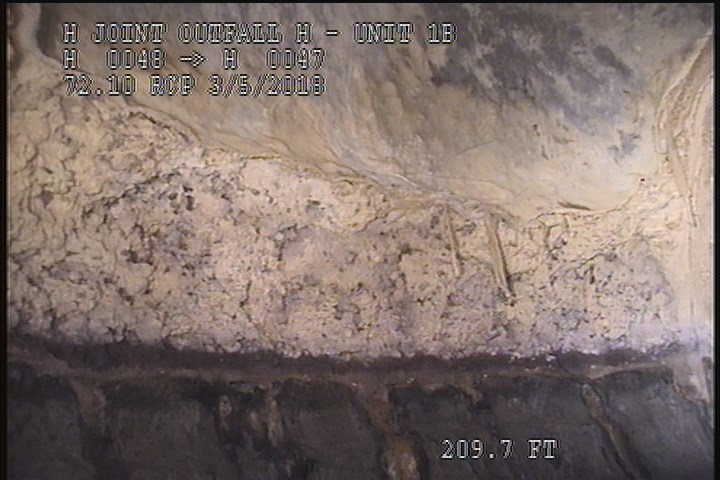

    209.4 ft. - General Observation - AREA INSIDE MH NO LINER

All inspections of P10499Work order 0684704

Observations (12)

DistanceCodeObservation
0MWM—
77.9MGOFR POLY LINER
122.8TBActive
139.9MGOFR POLY LINER
122.8MGOFR POLY LINER
0AMH4:15AM
0MWL—
188.4MGOFR POLY LINER
209.4MGOAREA INSIDE MH NO LINER
209.7AMH4:30AM
77.9MGPFR POLY LINER
17.1MGOFR POLY LINER

Properties (5)

custom_field_three
FR POLY LINER GOOD CONDITION
custom_field_two
4
customer
LACSD
datetime
2018-03-05T02:13:04-08:00
lining
FR POLY LINER
