Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Mar 5, 2018, 05:22 PM

  • A 0956_D 0020_352018_102416.mp4

Date
03/05/2018
W/O
0674351
Weather
Dry
Operator/Surveyor
FRANKLIN
Sewer ID
Z00151
PipeID
P09913
Time
9:22 AM
Certificate
U-414-06024039
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
G7646
Sewer Name
D JOINT OUTFALL D - UNIT 2A
City
TORRANCE
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 08
Page No.
10
Purpose
Routine Assessment
Project
20180305DF_JOINT_OUTFALL_D_UNIT_2A
Material
Reinforced Concrete Pipe
Shape
Circular
Height
57 in.
Upstream MH
A 0956
Downstream MH
D 0020
Dir. of Survey
Downstream
Length Surveyed
731.9 ft.
Total Length
731.9 ft.
Structural Index
0
Structural Quick
0000
Structural Rating
0
O&M Index
0
O&M Quick
0000
O&M Rating
0
Overall Index
0
Overall Quick
—
Overall Rating
0
Pipe schematic from manhole A 0956 to D 0020
MH: A 0956MH: D 0020downstream0 ft. AMH - Upstream Manhole, Survey Begins - 10:23 AM0.1 ft. MWM - Water Mark, 40 %of cross sectional area0.1 ft. MWL - Water Level, 35 %of cross sectional area96.8 ft. MGP - General Photograph323.3 ft. MGP - General Photograph516.4 ft. MGP - General Photograph621.3 ft. MGP - General Photograph731.9 ft. AMH - Downstream Manhole, Survey Ends - 11:48 AM

Observation photos (4)

  • General Photograph

    96.8 ft. - General Photograph

  • General Photograph

    323.3 ft. - General Photograph

  • General Photograph

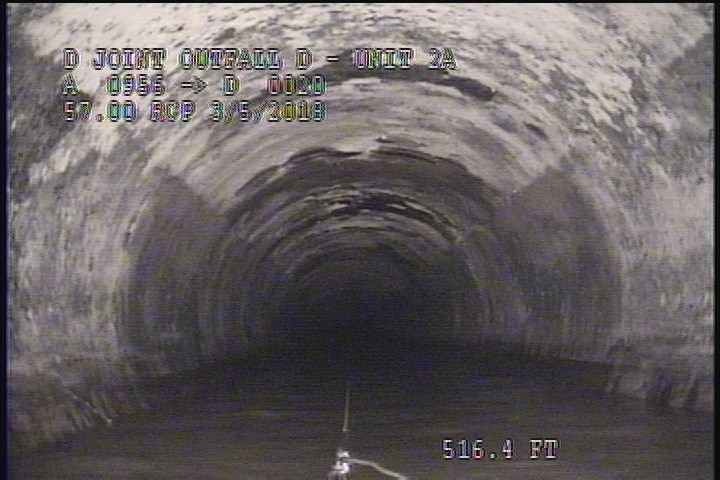

    516.4 ft. - General Photograph

  • General Photograph

    621.3 ft. - General Photograph

All inspections of P09913Work order 0674351

Observations (8)

DistanceCodeObservation
731.9AMH11:48 AM
96.8MGP—
0.1MWM—
516.4MGP—
323.3MGP—
621.3MGP—
0.1MWL—
0AMH10:23 AM

Properties (6)

additional_info
THE PAPERWORK SAYS THIS IS A 63" LINE, BUT THE PIPE INFO ON SCREEN READS A 57"
custom_field_two
4
customer
LACSD
datetime
2018-03-05T09:22:27-08:00
lining
FR POLY LINE
year_laid
19990126
