Wastewater/Activity/PacpInspection/1.0Mar 2, 2018, 10:12 PM
C 0345_C 0344_322018_141610.mp4
- Date
- 03/02/2018
- W/O
- PENDING
- Weather
- Light Rain
- Operator/Surveyor
- FRANKLIN
- Sewer ID
- Z00138
- PipeID
- P09808
- Time
- 2:12 PM
- Certificate
- U-415-06024039
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- Not Known
- Media Label
- G7643
- Sewer Name
- C JOINT OUTFALL C - UNIT 7B
- City
- LONG BEACH
- Loc. details
- Light Highway
- Location Code
- C
- Use of Sewer
- Sanitary Sewer
- District
- District 03
- Page No.
- 17
- Purpose
- Routine Assessment
- Project
- 20180302DF_JOINT_OUTFALL_C_UNIT_7B
- Material
- Reinforced Concrete Pipe
- Shape
- Circular
- Height
- 33 in.
- Upstream MH
- C 0345
- Downstream MH
- C 0344
- Dir. of Survey
- Downstream
- Length Surveyed
- 2 ft.
- Total Length
- 2 ft.
- Structural Index
- 0
- Structural Quick
- 0000
- Structural Rating
- 0
- O&M Index
- 5
- O&M Quick
- 5100
- O&M Rating
- 5
- Overall Index
- 5
- Overall Quick
- —
- Overall Rating
- 5
Observation photos (4)

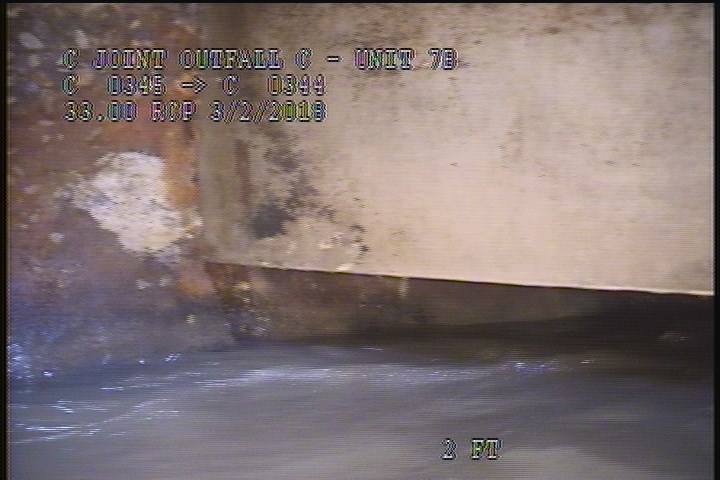

0 ft. - Upstream Manhole, Survey Begins - 2:14 PM

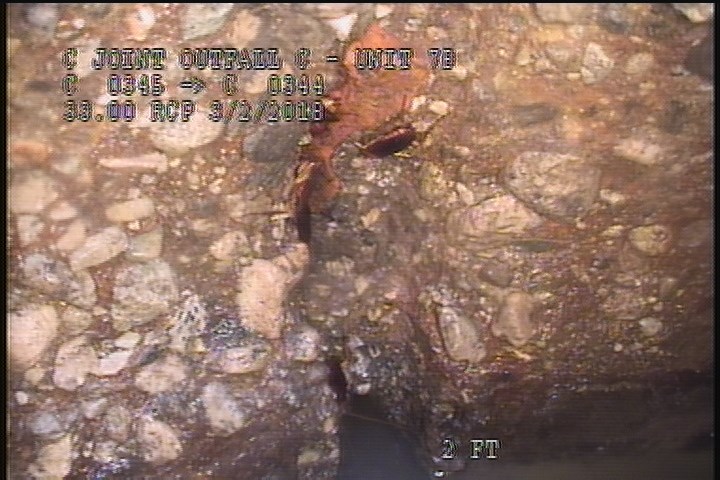

0.1 ft. - Water Level, 80 %of cross sectional area

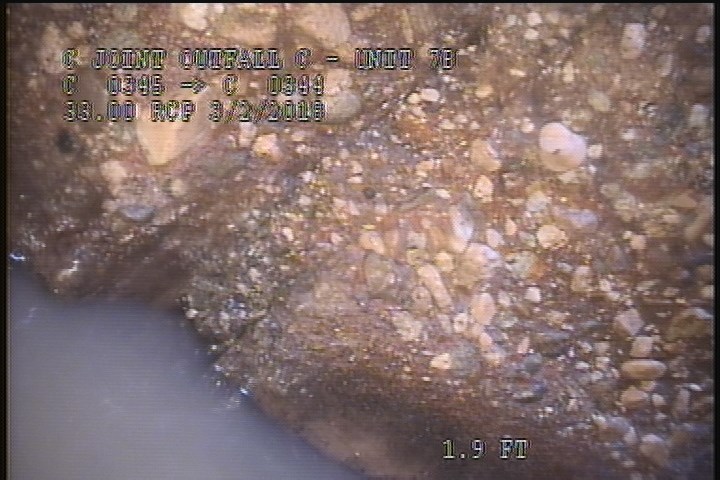

0.1 ft. - Water Mark, 85 %of cross sectional area

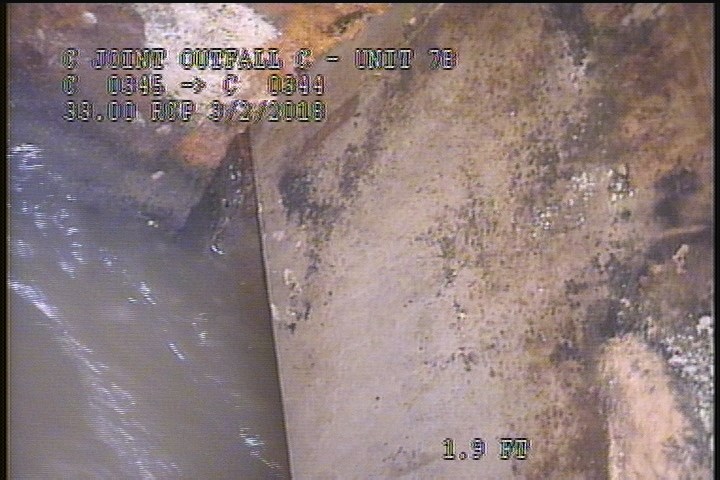

1.9 ft. - General Photograph
Observations (5)
| Distance | Code | Observation |
|---|---|---|
| 0 | AMH | 2:14 PM |
| 0.1 | MWL | — |
| 1.9 | MGP | — |
| 0.1 | MWM | — |
| 2 | MSA | INSPECTION OF STACK COMPLETED |
Properties (3)
- custom_field_two
- 5
- customer
- LACSD
- datetime
- 2018-03-02T14:12:22-08:00
