Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Feb 12, 2018, 10:20 AM

  • 01 1084_01 1083_12022018_023252.mp4

Date
02/12/2018
W/O
685073
Weather
Dry
Operator/Surveyor
S. LOPEZ
Sewer ID
Z00210
PipeID
P01933
Time
2:20 AM
Certificate
U-111-11880
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
No Pre-Cleaning
Media Label
K5401
Sewer Name
01 HUNTINGTON PARK TRUNK
City
HUNTINGTON PARK
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 01
Page No.
08
Purpose
Routine Assessment
Project
WO_685073_TV01246_FEB2018
Sewer Type
Gravity
Material
Vitrified Clay Pipe
Shape
Circular
Height
24 in.
Width
24 in.
Upstream MH
01 1084
Downstream MH
01 1083
Dir. of Survey
Downstream
Length Surveyed
392.7 ft.
Total Length
392.7 ft.
Structural Index
3
Structural Quick
3F22
Structural Rating
109
O&M Index
0
O&M Quick
0000
O&M Rating
0
Overall Index
3
Overall Quick
—
Overall Rating
109
Pipe schematic from manhole 01 1084 to 01 1083
MH: 01 1084MH: 01 1083downstream0 ft. MWL - Water Level, 20 %of cross sectional area0 ft. AMH - Upstream Manhole, Survey Begins - 01 10840 ft. MWM - Water Mark, 40 %of cross sectional area98.7 ft. CL - Crack Longitudinal, at 03 o'clock, within 8 inches of joint: YES183.5 ft. CL - Crack Longitudinal, at 02 o'clock, within 8 inches of joint: YES216.3 ft. CM - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start391.3 ft. CM - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish392.7 ft. AMH - Downstream Manhole, Survey Ends - 01 1083392.7 ft. MGO - General Observation - COCKROACHES IN MANHOLE

Observation photos (3)

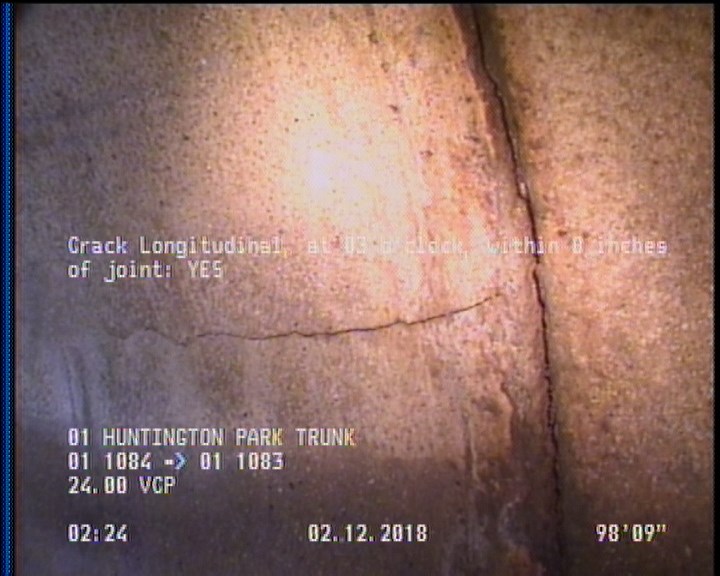

  • Crack Longitudinal, at 03 o'clock, within 8 inches of joint: YES

    98.7 ft. - Crack Longitudinal, at 03 o'clock, within 8 inches of joint: YES

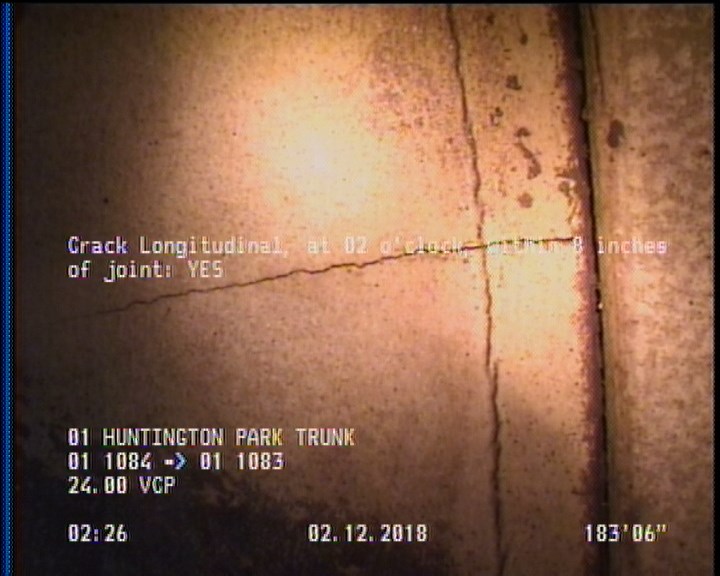

  • Crack Longitudinal, at 02 o'clock, within 8 inches of joint: YES

    183.5 ft. - Crack Longitudinal, at 02 o'clock, within 8 inches of joint: YES

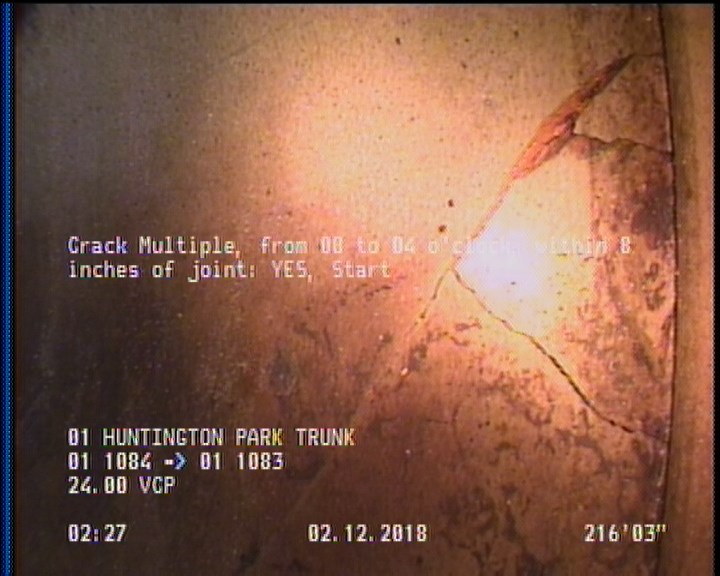

  • Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

    216.3 ft. - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

All inspections of P01933Work order 685073

Observations (9)

DistanceCodeObservation
392.7AMH01 1083
0MWL—
0AMH01 1084
391.3CM—
98.7CL—
392.7MGOCOCKROACHES IN MANHOLE
216.3CM—
183.5CL—
0MWM—

Properties (4)

additional_info
SC346985
custom_field_two
3
customer
LACSD
datetime
2018-02-12T02:20:34-08:00
