Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Feb 12, 2018, 12:06 PM

  • 01 1082_01 1081_12022018_042441.mp4

Date
02/12/2018
W/O
685073
Weather
Dry
Operator/Surveyor
S. LOPEZ
Sewer ID
Z00210
PipeID
P01931
Time
4:06 AM
Certificate
U-111-11880
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
No Pre-Cleaning
Media Label
K5401
Sewer Name
01 HUNTINGTON PARK TRUNK
City
CUDAHY
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 01
Page No.
08
Purpose
Routine Assessment
Project
WO_685073_TV01246_FEB2018
Sewer Type
Gravity
Material
Vitrified Clay Pipe
Shape
Circular
Height
24 in.
Width
24 in.
Upstream MH
01 1082
Downstream MH
01 1081
Dir. of Survey
Downstream
Length Surveyed
395.4 ft.
Total Length
395.4 ft.
Structural Index
3
Structural Quick
3M00
Structural Rating
213
O&M Index
0
O&M Quick
0000
O&M Rating
0
Overall Index
3
Overall Quick
—
Overall Rating
213
Pipe schematic from manhole 01 1082 to 01 1081
MH: 01 1082MH: 01 1081downstream0 ft. MWM - Water Mark, 35 %of cross sectional area0 ft. MGO - General Observation - COCKROACHES IN MANHOLE0 ft. AMH - Upstream Manhole, Survey Begins - 01 10820 ft. MWL - Water Level, 15 %of cross sectional area28.4 ft. CM - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start215.3 ft. FL - Fracture Longitudinal, at 12 o'clock, within 8 inches of joint: YES, Start215.3 ft. CM - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish362.1 ft. FL - Fracture Longitudinal, at 12 o'clock, within 8 inches of joint: YES, Finish369.1 ft. CM - Crack Multiple, from 09 to 03 o'clock, within 8 inches of joint: YES, Start393 ft. CM - Crack Multiple, from 09 to 03 o'clock, within 8 inches of joint: YES, Finish395.4 ft. MGO - General Observation - COCKROACHES IN MANHOLE395.4 ft. AMH - Downstream Manhole, Survey Ends - 01 1081

Observation photos (3)

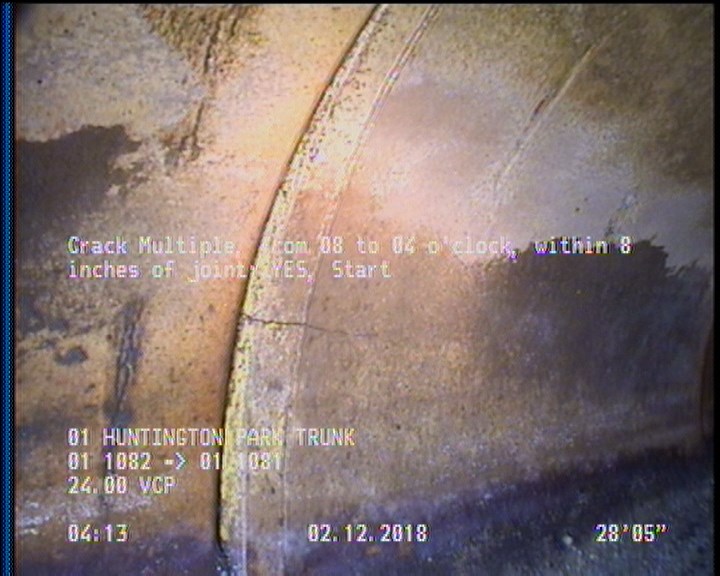

  • Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

    28.4 ft. - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

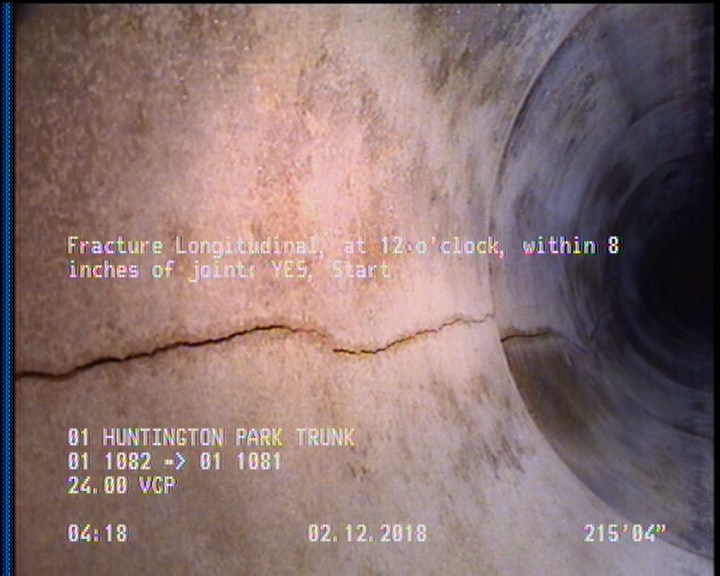

  • Fracture Longitudinal, at 12 o'clock, within 8 inches of joint: YES, Start

    215.3 ft. - Fracture Longitudinal, at 12 o'clock, within 8 inches of joint: YES, Start

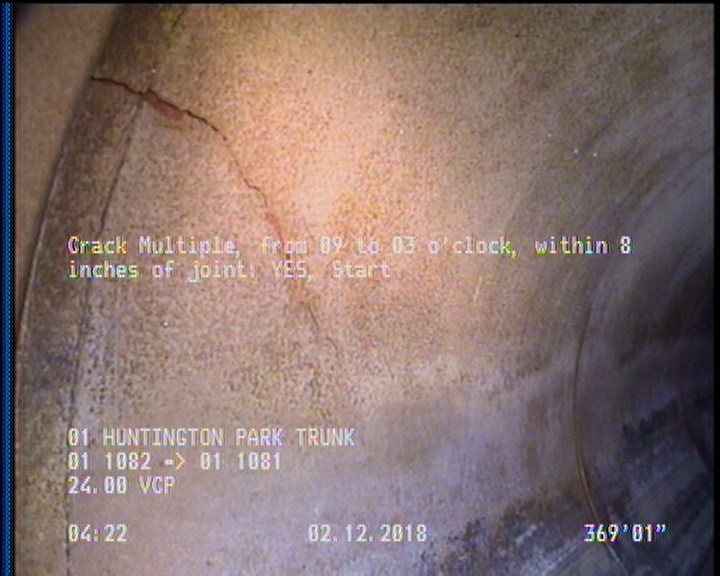

  • Crack Multiple, from 09 to 03 o'clock, within 8 inches of joint: YES, Start

    369.1 ft. - Crack Multiple, from 09 to 03 o'clock, within 8 inches of joint: YES, Start

All inspections of P01931Work order 685073

Observations (12)

DistanceCodeObservation
215.3FL—
395.4MGOCOCKROACHES IN MANHOLE
362.1FL—
369.1CM—
0MWM—
215.3CM—
0MGOCOCKROACHES IN MANHOLE
0AMH01 1082
395.4AMH01 1081
393CM—
28.4CM—
0MWL—

Properties (4)

additional_info
SC346985
custom_field_two
1
customer
LACSD
datetime
2018-02-12T04:06:12-08:00
