Wastewater/Activity/PacpInspection/1.0Feb 12, 2018, 09:39 AM
01 1085_01 1516_12022018_014605.mp4
- Date
- 02/12/2018
- W/O
- 685073
- Weather
- Dry
- Operator/Surveyor
- S. LOPEZ
- Sewer ID
- Z00210
- PipeID
- P26311
- Time
- 1:39 AM
- Certificate
- U-111-11880
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- No Pre-Cleaning
- Media Label
- K5401
- Sewer Name
- 01 HUNTINGTON PARK TRUNK
- City
- HUNTINGTON PARK
- Loc. details
- Light Highway
- Location Code
- C
- Use of Sewer
- Sanitary Sewer
- District
- District 01
- Page No.
- 08
- Purpose
- Routine Assessment
- Project
- WO_685073_TV01246_FEB2018
- Sewer Type
- Gravity
- Material
- Vitrified Clay Pipe
- Shape
- Circular
- Height
- 24 in.
- Width
- 24 in.
- Upstream MH
- 01 1085
- Downstream MH
- 01 1516
- Dir. of Survey
- Downstream
- Length Surveyed
- 63.5 ft.
- Total Length
- 63.5 ft.
- Structural Index
- 2
- Structural Quick
- 2A00
- Structural Rating
- 22
- O&M Index
- 0
- O&M Quick
- 0000
- O&M Rating
- 0
- Overall Index
- 2
- Overall Quick
- —
- Overall Rating
- 22
Observation photos (2)

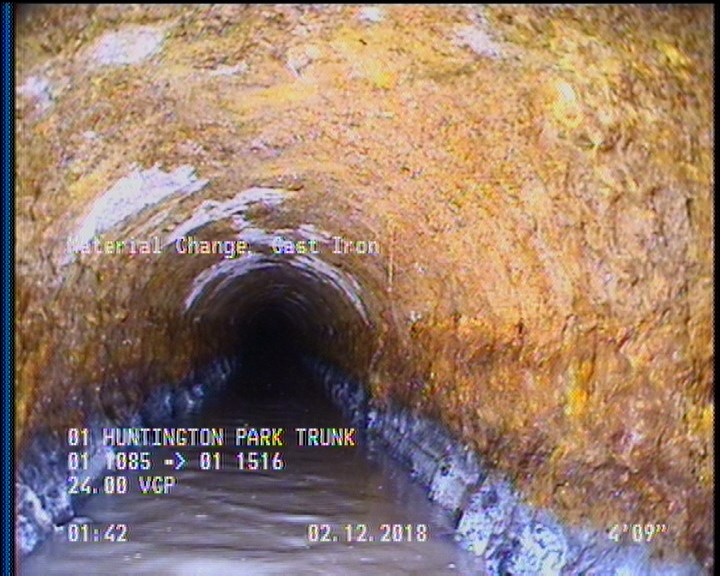

2 ft. - Material Change, Cast Iron - GOES THROUGHOUT LINE

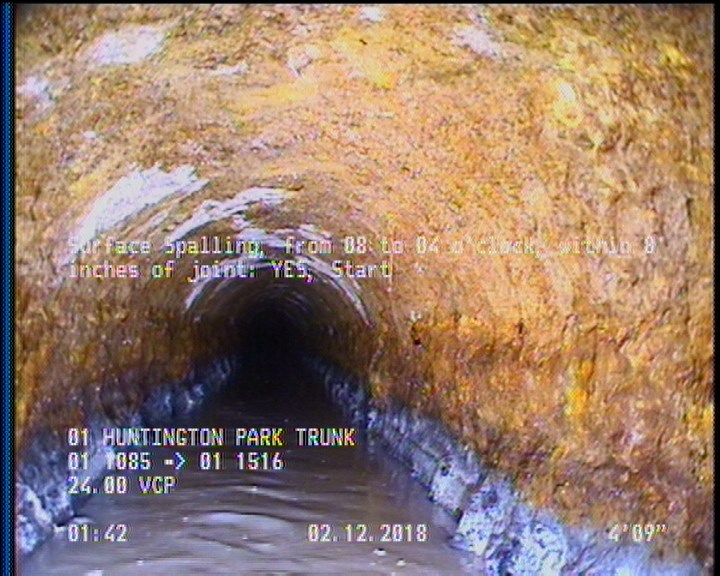

4.8 ft. - Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: YES, Start
Observations (10)
| Distance | Code | Observation |
|---|---|---|
| 4.8 | SSS | — |
| 0 | MWM | — |
| 0 | AMH | 01 1085 |
| 63.5 | AMH | 01 1516 |
| 63.5 | MGO | ACTIVE CONNECTION AT MH 3 O'CLOCK |
| 0 | MWL | — |
| 63.5 | MGO | COCKROACHES IN MANHOLE |
| 2 | MMC | — |
| 61.8 | MGO | ACTIVE CONNECTION AT MH 7 O'CLOCK |
| 60.4 | SSS | — |
Properties (4)
- additional_info
- SC346985
- custom_field_two
- 3
- customer
- LACSD
- datetime
- 2018-02-12T01:39:22-08:00
