Wastewater/Activity/PacpInspection/1.0Feb 13, 2018, 10:49 AM
F 0155_F 0259 _13022018_031452.mp4
- Date
- 02/13/2018
- W/O
- 679308
- Weather
- Dry
- Operator/Surveyor
- S. LOPEZ
- Sewer ID
- Z00043
- PipeID
- P10289
- Time
- 2:49 AM
- Certificate
- U-111-11880
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- Not Known
- Media Label
- K5404
- Sewer Name
- F JOINT OUTFALL F - UNIT 7A
- City
- CERRITOS
- Loc. details
- Main Highway - Urban
- Location Code
- A
- Use of Sewer
- Sanitary Sewer
- District
- District 02
- Page No.
- 37
- Purpose
- Routine Assessment
- Project
- WO_679308_TV02202_JAN2018
- Sewer Type
- Gravity
- Material
- Reinforced Concrete Pipe
- Shape
- Circular
- Height
- 51 in.
- Width
- 51 in.
- Upstream MH
- F 0155
- Downstream MH
- F 0259
- Dir. of Survey
- Downstream
- Length Surveyed
- 400.3 ft.
- Total Length
- 400.3 ft.
- Structural Index
- 3
- Structural Quick
- 3O00
- Structural Rating
- 240
- O&M Index
- 2
- O&M Quick
- 2O00
- O&M Rating
- 160
- Overall Index
- 3
- Overall Quick
- —
- Overall Rating
- 400
Observation photos (3)

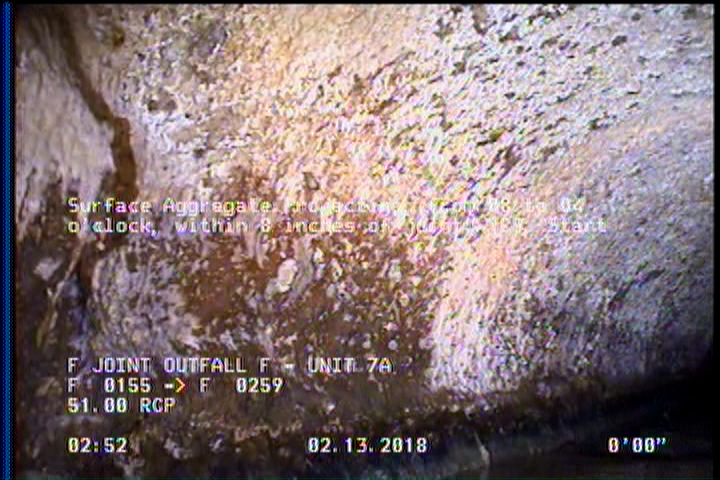

2 ft. - Surface Aggregate Projecting, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

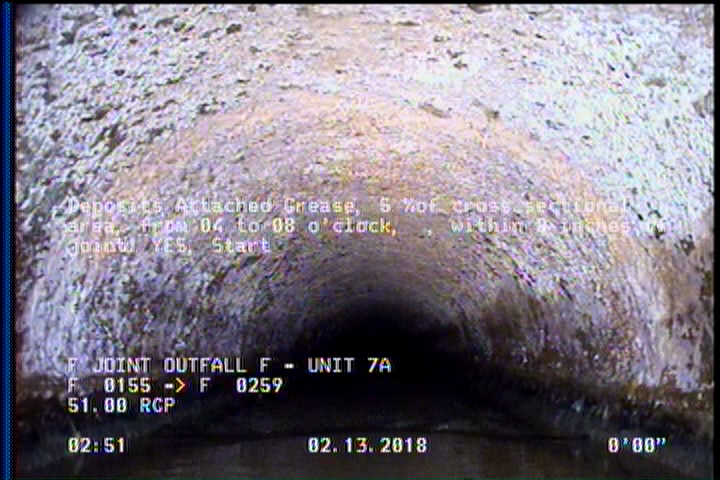

2 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start

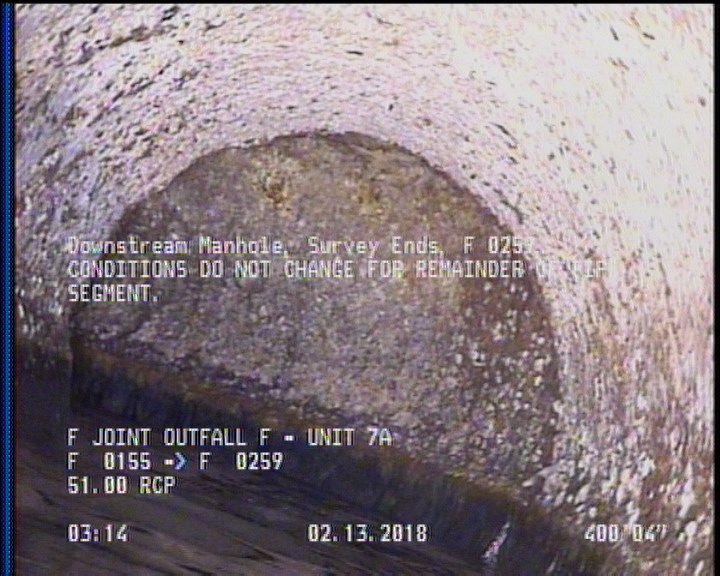

400.3 ft. - Downstream Manhole, Survey Ends - F 0259, CONDITIONS DO NOT CHANGE FOR REMAINDER OF PIPE SEGMENT.
Observations (9)
| Distance | Code | Observation |
|---|---|---|
| 400.3 | DAGS | — |
| 2 | MGO | MAG COATING 40% |
| 2 | SAP | — |
| 0 | AMH | F 0155 |
| 0 | MWM | — |
| 400.3 | AMH | F 0259, CONDITIONS DO NOT CHANGE FOR REMAINDER OF PIPE SEGMENT. |
| 400.3 | SAP | — |
| 0 | MWL | — |
| 2 | DAGS | — |
Properties (4)
- additional_info
- SC346988
- custom_field_two
- 3
- customer
- LACSD
- datetime
- 2018-02-13T02:49:41-08:00
