Wastewater/Activity/PacpInspection/1.0Jan 3, 2018, 06:41 AM
F 0258_F 0080_02012018_231848.mp4
- Date
- 01/02/2018
- W/O
- 679308
- Weather
- Dry
- Operator/Surveyor
- JUAN B
- Sewer ID
- Z00043
- PipeID
- P10285
- Time
- 10:41 PM
- Certificate
- U-715-07000770
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- Not Known
- Media Label
- K5169
- Sewer Name
- F JOINT OUTFALL F - UNIT 7A
- City
- CERRITOS
- Loc. details
- Main Highway - Urban
- Location Code
- A
- Use of Sewer
- Sanitary Sewer
- District
- District 02
- Page No.
- 37
- Purpose
- Routine Assessment
- Project
- WO_679308_TV02202_JAN2018
- Sewer Type
- Gravity
- Material
- Reinforced Concrete Pipe
- Shape
- Circular
- Height
- 60 in.
- Width
- 60 in.
- Upstream MH
- F 0258
- Downstream MH
- F 0080
- Dir. of Survey
- Downstream
- Length Surveyed
- 603.6 ft.
- Total Length
- 603.6 ft.
- Structural Index
- 1
- Structural Quick
- 1100
- Structural Rating
- 1
- O&M Index
- 3
- O&M Quick
- 4121
- O&M Rating
- 6
- Overall Index
- 2
- Overall Quick
- —
- Overall Rating
- 7
Observation photos (2)

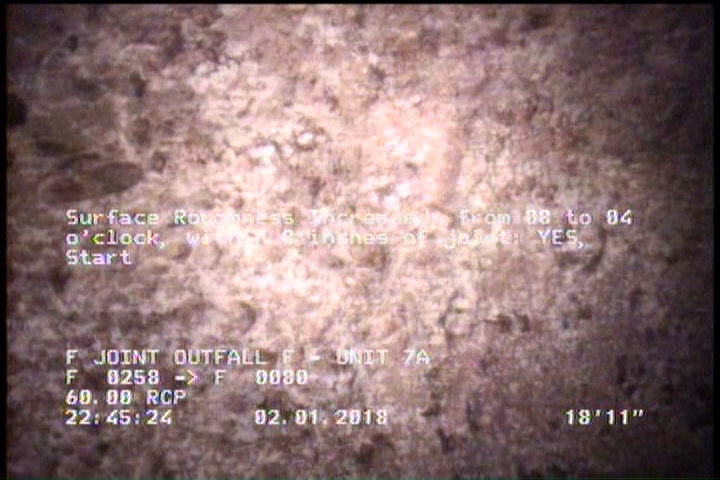

19.9 ft. - Surface Roughness Increased, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

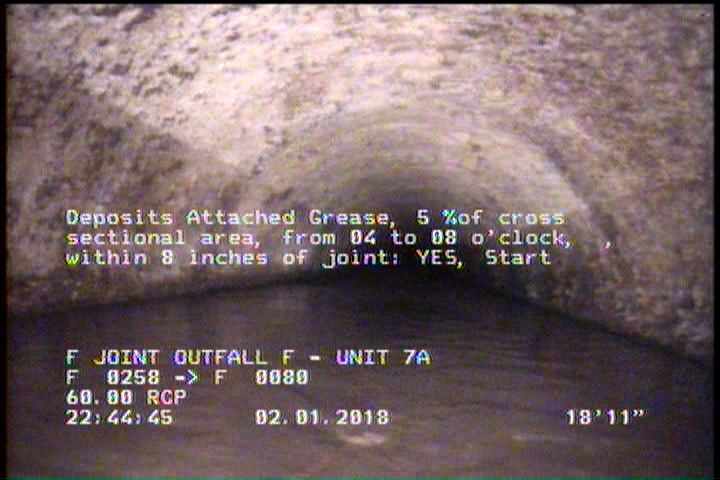

19.9 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start
Observations (9)
| Distance | Code | Observation |
|---|---|---|
| 19.9 | SRI | — |
| 599.8 | SRI | — |
| 0 | MWL | — |
| 0 | AMH | F 0258 |
| 19.9 | DAGS | — |
| 603.6 | AMH | F 0080 |
| 0 | MWM | — |
| 19.9 | MGO | MAG COATING |
| 599.8 | DAGS | — |
Properties (4)
- additional_info
- SC350387
- custom_field_two
- 3
- customer
- LACSD
- datetime
- 2018-01-02T22:41:24-08:00
