Wastewater/Activity/PacpInspection/1.0Dec 20, 2017, 06:43 AM
F 0160_F 0153 _05012018_125653.mp4
- Date
- 12/19/2017
- W/O
- 679308
- Weather
- Dry
- Operator/Surveyor
- JUAN B
- Sewer ID
- Z00043
- PipeID
- P10295
- Time
- 10:43 PM
- Certificate
- U-715-0700070
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- Not Known
- Media Label
- K5168
- Sewer Name
- F JOINT OUTFALL F - UNIT 7A
- City
- CERRITOS
- Loc. details
- Main Highway - Urban
- Location Code
- A
- Use of Sewer
- Sanitary Sewer
- District
- District 02
- Page No.
- 37
- Purpose
- Routine Assessment
- Project
- WO_679308_TV02202_JAN2018
- Sewer Type
- Gravity
- Material
- Reinforced Concrete Pipe
- Shape
- Circular
- Height
- 51 in.
- Width
- 51 in.
- Upstream MH
- F 0160
- Downstream MH
- F 0153
- Dir. of Survey
- Downstream
- Length Surveyed
- 32 ft.
- Total Length
- 32 ft.
- Structural Index
- 4
- Structural Quick
- 5121
- Structural Rating
- 7
- O&M Index
- 2
- O&M Quick
- 2100
- O&M Rating
- 2
- Overall Index
- 3
- Overall Quick
- —
- Overall Rating
- 9
Observation photos (3)

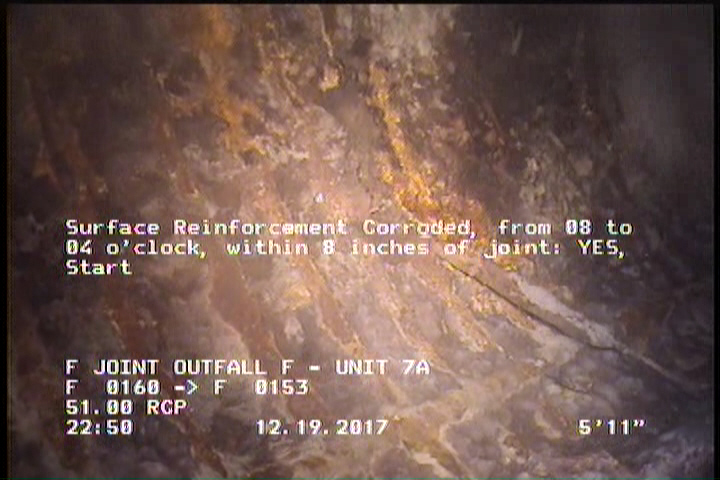

5.9 ft. - Surface Reinforcement Corroded, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

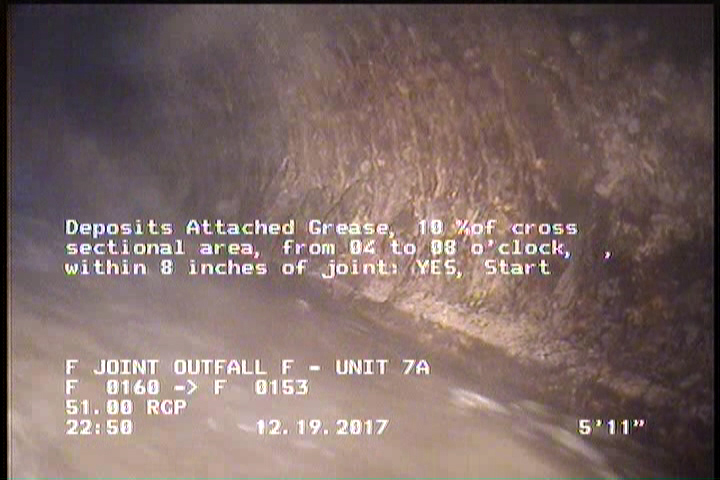

5.9 ft. - Deposits Attached Grease, 10 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start

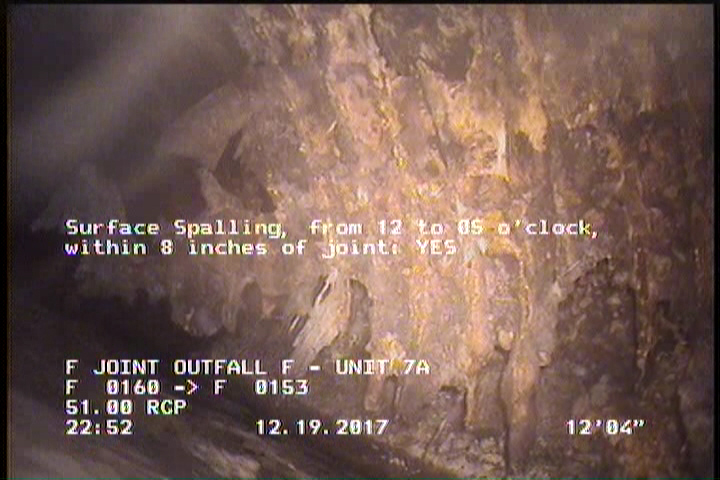

12.3 ft. - Surface Spalling, from 12 to 05 o'clock, within 8 inches of joint: YES
Observations (14)
| Distance | Code | Observation |
|---|---|---|
| 12.3 | SSS | — |
| 2 | MGO | MAG COAT FLAKING-OFF THROUGHOUT - 8 TO 4 O'CLOCK |
| 25.4 | SRC | — |
| 5.9 | SRC | — |
| 25.4 | MGO | CONNECTION AT MH 9 O'CLOCK |
| 25.4 | DAGS | — |
| 5.9 | DAGS | — |
| 0 | AMH | F 0160 |
| 25.4 | AMH | F 0153 |
| 0 | MGO | CONNECTION AT MH 3 O'CLOCK |
| 0 | MWM | — |
| 0 | MWL | — |
| 32 | MGO | 3 O'CLOCK CONNECTION @ D/S MH DAMAGED (BENT METAL) |
| 25.4 | MGO | CONNECTION AT MH 3 O'CLOCK |
Properties (5)
- additional_info
- SC350382
- custom_field_two
- 2
- customer
- LACSD
- datetime
- 2017-12-19T22:43:57-08:00
- year_laid
- 34088
