Wastewater/Activity/PacpInspection/1.0Dec 20, 2017, 07:56 AM
F 0158_F 0157 _05012018_125506.mp4
- Date
- 12/19/2017
- W/O
- 679308
- Weather
- Dry
- Operator/Surveyor
- JUAN B
- Sewer ID
- Z00043
- PipeID
- P10292
- Time
- 11:56 PM
- Certificate
- U-715-07000770
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- Not Known
- Media Label
- K5168
- Sewer Name
- F JOINT OUTFALL F - UNIT 7A
- City
- CERRITOS
- Loc. details
- Main Highway - Urban
- Location Code
- A
- Use of Sewer
- Sanitary Sewer
- District
- District 02
- Page No.
- 37
- Purpose
- Routine Assessment
- Project
- WO_679308_TV02202_JAN2018
- Sewer Type
- Gravity
- Material
- Reinforced Concrete Pipe
- Shape
- Circular
- Height
- 51 in.
- Width
- 51 in.
- Upstream MH
- F 0158
- Downstream MH
- F 0157
- Dir. of Survey
- Downstream
- Length Surveyed
- 455.6 ft.
- Total Length
- 455.6 ft.
- Structural Index
- 2
- Structural Quick
- 3111
- Structural Rating
- 4
- O&M Index
- 3
- O&M Quick
- 4121
- O&M Rating
- 6
- Overall Index
- 3
- Overall Quick
- —
- Overall Rating
- 10
Observation photos (3)

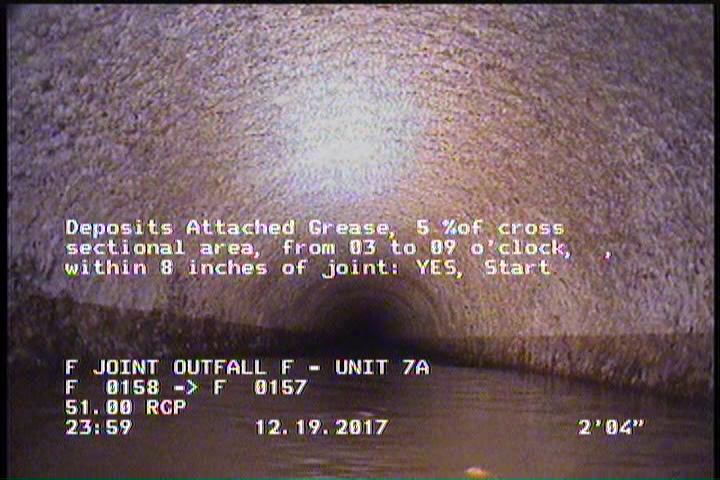

2.4 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 03 to 09 o'clock, , within 8 inches of joint: YES, Start

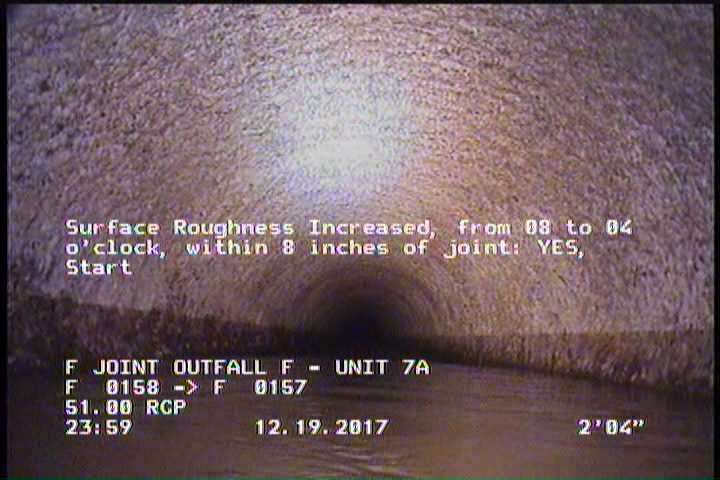

2.4 ft. - Surface Roughness Increased, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

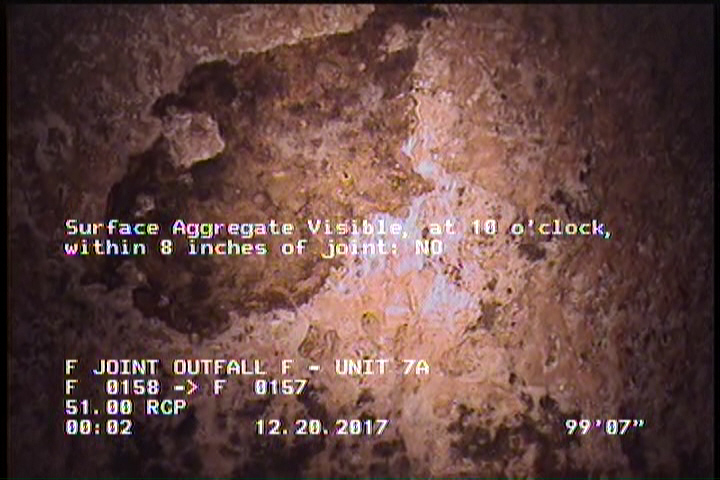

99.5 ft. - Surface Aggregate Visible, at 10 o'clock, within 8 inches of joint: NO
Observations (10)
| Distance | Code | Observation |
|---|---|---|
| 2.4 | DAGS | — |
| 0 | MWM | — |
| 452 | SRI | — |
| 2.4 | SRI | — |
| 455.6 | AMH | F 0157 |
| 0 | AMH | F 0158 |
| 2.4 | MGO | MAG COATING |
| 99.5 | SAV | — |
| 0 | MWL | — |
| 452 | DAGS | — |
Properties (4)
- additional_info
- SC350382
- custom_field_two
- 3
- customer
- LACSD
- datetime
- 2017-12-19T23:56:03-08:00
