Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Feb 7, 2018, 07:55 AM

  • 04 0084_04 0083A _07022018_000355.mp4

Date
02/06/2018
W/O
685064
Weather
Dry
Operator/Surveyor
B.FUGATE
Sewer ID
Z00415
PipeID
P11823
Time
11:55 PM
Certificate
U-508-7069
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
No Pre-Cleaning
Media Label
K5433
Sewer Name
04 SHERMAN TRUNK
City
WEST HOLLYWOOD
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 04
Page No.
01
Purpose
Routine Assessment
Project
WO_685064_TV04009_FEB2018
Sewer Type
Gravity
Material
Vitrified Clay Pipe
Shape
Circular
Height
12 in.
Width
12 in.
Upstream MH
04 0083A
Downstream MH
04 0084
Dir. of Survey
Upstream
Length Surveyed
126.9 ft.
Total Length
127 ft.
Structural Index
3
Structural Quick
3121
Structural Rating
5
O&M Index
0
O&M Quick
0000
O&M Rating
0
Overall Index
3
Overall Quick
—
Overall Rating
5
Pipe schematic from manhole 04 0083A to 04 0084
MH: 04 0083AMH: 04 0084upstream0 ft. AMH - Upstream Manhole, Survey Ends - 04 00840 ft. MGO - General Observation - CONNECTION AT MH 8 O'CLOCK55.6 ft. CL - Crack Longitudinal, at 12 o'clock, within 8 inches of joint: YES64.2 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: NO, 6"105.7 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: NO, 6"106.1 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: NO, 6"113.8 ft. CM - Crack Multiple, from 08 to 03 o'clock, within 8 inches of joint: YES127 ft. MWL - Water Level, 10 %of cross sectional area127 ft. MWM - Water Mark, 20 %of cross sectional area127 ft. AMH - Downstream Manhole, Survey Begins - 04 0083A

Observation photos (2)

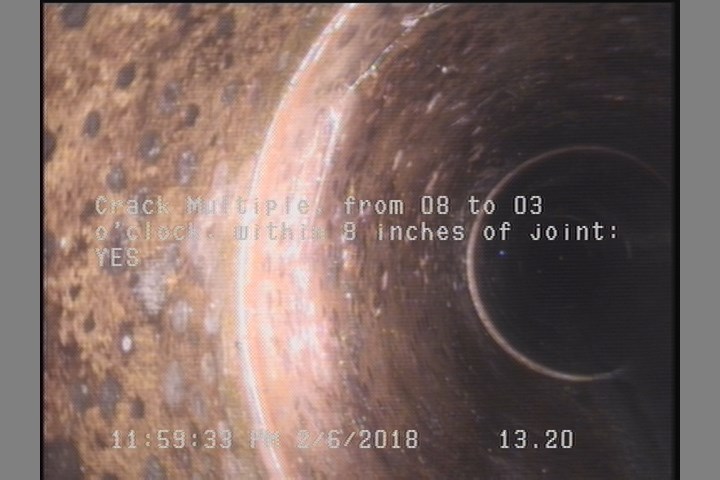

  • Crack Multiple, from 08 to 03 o'clock, within 8 inches of joint: YES

    13.2 ft. - Crack Multiple, from 08 to 03 o'clock, within 8 inches of joint: YES

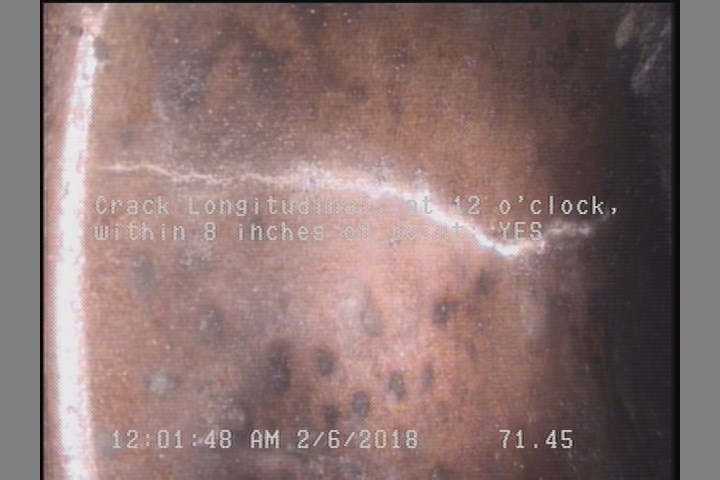

  • Crack Longitudinal, at 12 o'clock, within 8 inches of joint: YES

    71.4 ft. - Crack Longitudinal, at 12 o'clock, within 8 inches of joint: YES

All inspections of P11823Work order 685064

Observations (10)

DistanceCodeObservation
21.3TFC—
0MWL—
62.8TFC—
0MWM—
13.2CM—
71.4CL—
20.9TFC—
127AMH04 0084
0AMH04 0083A
127MGOCONNECTION AT MH 8 O'CLOCK

Properties (4)

additional_info
SC347071
custom_field_two
3
customer
LACSD
datetime
2018-02-06T23:55:42-08:00
