Wastewater/Activity/PacpInspection/1.0Feb 7, 2018, 08:42 AM
04 0078_04 0077 _07022018_004612.mp4
- Date
- 02/07/2018
- W/O
- 685064
- Weather
- Dry
- Operator/Surveyor
- B.FUGATE
- Sewer ID
- Z00415
- PipeID
- P11815
- Time
- 12:42 AM
- Certificate
- U-508-7069
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- No Pre-Cleaning
- Media Label
- K5433
- Sewer Name
- 04 SHERMAN TRUNK
- City
- WEST HOLLYWOOD
- Loc. details
- Light Highway
- Location Code
- C
- Use of Sewer
- Sanitary Sewer
- District
- District 04
- Page No.
- 01
- Purpose
- Routine Assessment
- Project
- WO_685064_TV04009_FEB2018
- Sewer Type
- Gravity
- Material
- Vitrified Clay Pipe
- Shape
- Circular
- Height
- 15 in.
- Width
- 15 in.
- Upstream MH
- 04 0078
- Downstream MH
- 04 0077
- Dir. of Survey
- Downstream
- Length Surveyed
- 30.4 ft.
- Total Length
- 30.4 ft.
- Structural Index
- 4
- Structural Quick
- 4332
- Structural Rating
- 18
- O&M Index
- 0
- O&M Quick
- 0000
- O&M Rating
- 0
- Overall Index
- 4
- Overall Quick
- —
- Overall Rating
- 18
Observation photos (3)

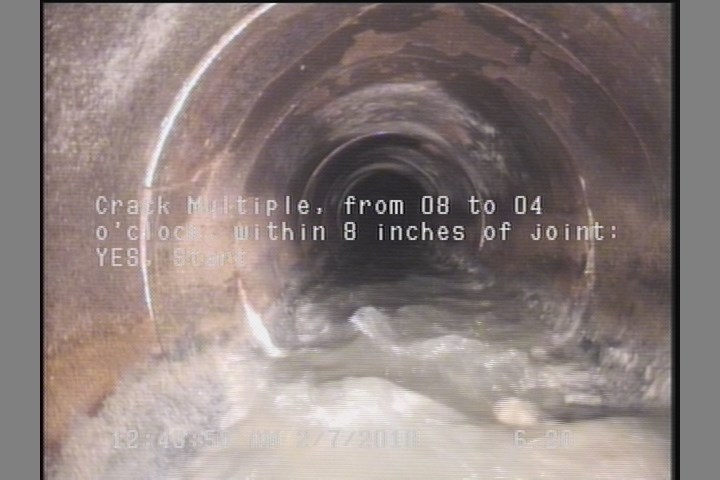

6.2 ft. - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

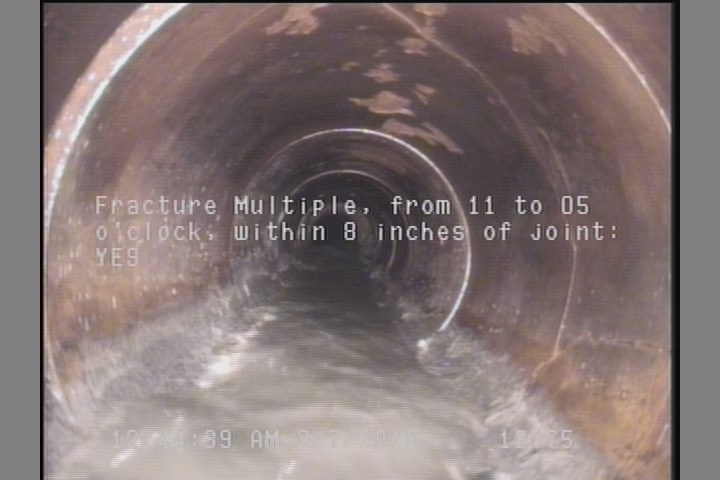

13.8 ft. - Fracture Multiple, from 11 to 05 o'clock, within 8 inches of joint: YES

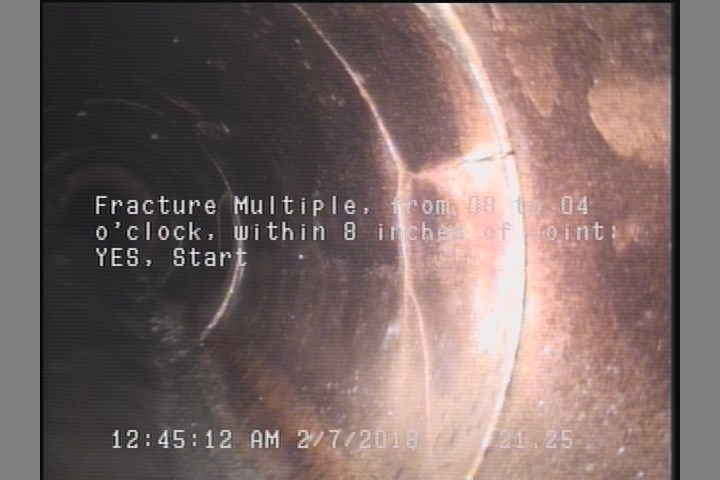

21.3 ft. - Fracture Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start
Observations (13)
| Distance | Code | Observation |
|---|---|---|
| 30.4 | MGO | CONNECTION AT MH 9 O'CLOCK |
| 21.3 | CM | — |
| 0 | AMH | 04 0078 |
| 30.4 | MGO | CONNECTION AT MH 3 O'CLOCK |
| 6.2 | CM | — |
| 27 | FM | — |
| 0 | MWM | — |
| 30.4 | AMH | 04 0077 |
| 0 | MWL | — |
| 0 | MGO | CONNECTION AT MH 3 O'CLOCK |
| 21.3 | FM | — |
| 29 | MGO | SPALLING/ROUGH SURFACE THROUGHOUT THE REACH |
| 13.8 | FM | — |
Properties (4)
- additional_info
- SC347071
- custom_field_two
- 2
- customer
- LACSD
- datetime
- 2018-02-07T00:42:08-08:00
