Wastewater/Activity/PacpInspection/1.0Feb 7, 2018, 10:57 AM
04 0038_04 0073 _07022018_030046.mp4
- Date
- 02/07/2018
- W/O
- 685064
- Weather
- Dry
- Operator/Surveyor
- B.FUGATE
- Sewer ID
- Z00415
- PipeID
- P11810
- Time
- 2:57 AM
- Certificate
- U-508-7069
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- No Pre-Cleaning
- Media Label
- K5433
- Sewer Name
- 04 SHERMAN TRUNK
- City
- WEST HOLLYWOOD
- Loc. details
- Main Highway - Urban
- Location Code
- A
- Use of Sewer
- Sanitary Sewer
- District
- District 04
- Page No.
- 03
- Purpose
- Routine Assessment
- Project
- WO_685064_TV04009_FEB2018
- Sewer Type
- Gravity
- Material
- Vitrified Clay Pipe
- Shape
- Circular
- Height
- 15 in.
- Width
- 15 in.
- Upstream MH
- 04 0073
- Downstream MH
- 04 0038
- Dir. of Survey
- Upstream
- Length Surveyed
- 5.1 ft.
- Total Length
- 5.1 ft.
- Structural Index
- 2
- Structural Quick
- 2100
- Structural Rating
- 2
- O&M Index
- 2
- O&M Quick
- 2100
- O&M Rating
- 2
- Overall Index
- 2
- Overall Quick
- —
- Overall Rating
- 4
Observation photos (2)

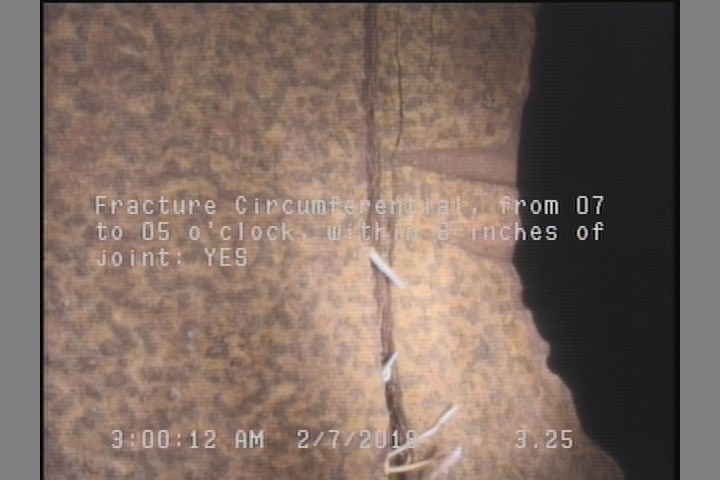

3.3 ft. - Fracture Circumferential, from 07 to 05 o'clock, within 8 inches of joint: YES

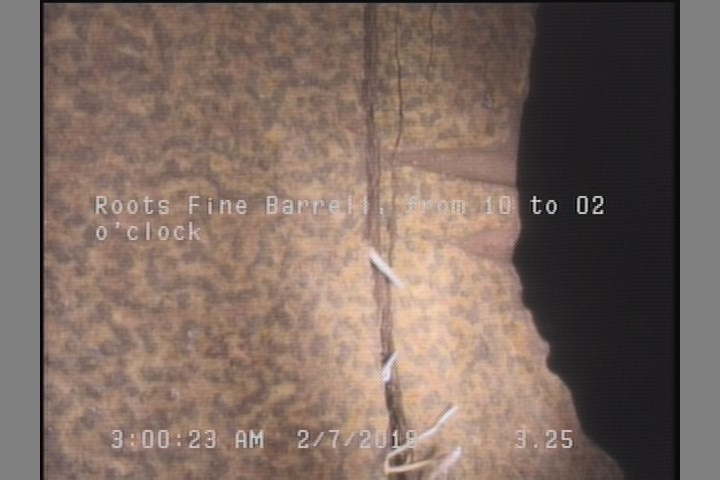

3.3 ft. - Roots Fine Barrell, from 10 to 02 o'clock
Observations (6)
| Distance | Code | Observation |
|---|---|---|
| 0 | MWM | — |
| 0 | AMH | 04 0073 |
| 5.1 | AMH | 04 0038 |
| 3.3 | FC | — |
| 0 | MWL | — |
| 3.3 | RFB | — |
Properties (4)
- additional_info
- SC347071
- custom_field_two
- 3
- customer
- LACSD
- datetime
- 2018-02-07T02:57:02-08:00
