Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Feb 7, 2018, 07:32 AM

  • 04 0082_04 0081 _06022018_234447.mp4

Date
02/06/2018
W/O
685064
Weather
Dry
Operator/Surveyor
B.FUGATE
Sewer ID
Z00415
PipeID
P11820
Time
11:32 PM
Certificate
U-508-7069
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
No Pre-Cleaning
Media Label
K5433
Sewer Name
04 SHERMAN TRUNK
City
WEST HOLLYWOOD
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 04
Page No.
01
Purpose
Routine Assessment
Project
WO_685064_TV04009_FEB2018
Sewer Type
Gravity
Material
Vitrified Clay Pipe
Shape
Circular
Height
12 in.
Width
12 in.
Upstream MH
04 0082
Downstream MH
04 0081
Dir. of Survey
Downstream
Length Surveyed
259.4 ft.
Total Length
259.4 ft.
Structural Index
4
Structural Quick
4F3B
Structural Rating
183
O&M Index
2
O&M Quick
2100
O&M Rating
2
Overall Index
4
Overall Quick
—
Overall Rating
185
Pipe schematic from manhole 04 0082 to 04 0081
MH: 04 0082MH: 04 0081downstream0 ft. MWM - Water Mark, 15 %of cross sectional area0 ft. AMH - Upstream Manhole, Survey Begins - 04 00820 ft. MWL - Water Level, 10 %of cross sectional area6.3 ft. CM - Crack Multiple, from 11 to 02 o'clock, within 8 inches of joint: YES17.6 ft. CC - Crack Circumferential, from 10 to 03 o'clock, within 8 inches of joint: YES23.8 ft. CM - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start25.8 ft. TF - Tap Factory Made, at 09 o'clock, -, within 8 inches of joint: NO, 6"36.4 ft. TF - Tap Factory Made, at 03 o'clock, -, within 8 inches of joint: NO, 6"47 ft. FM - Fracture Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES48.2 ft. TF - Tap Factory Made, at 03 o'clock, -, within 8 inches of joint: NO, 6"78.3 ft. TF - Tap Factory Made, at 09 o'clock, -, within 8 inches of joint: NO, 6"86.8 ft. FM - Fracture Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start86.8 ft. CM - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish94.2 ft. TF - Tap Factory Made, at 09 o'clock, -, within 8 inches of joint: NO, 6"134.9 ft. TF - Tap Factory Made, at 03 o'clock, -, within 8 inches of joint: NO, 6"180.6 ft. TF - Tap Factory Made, at 10 o'clock, -, within 8 inches of joint: NO, 6"185.4 ft. TF - Tap Factory Made, at 03 o'clock, -, within 8 inches of joint: NO, 6"191.2 ft. TFD - Tap Factory Made Defective, at 10 o'clock, -, within 8 inches of joint: NO, 6", 6" - CRACKS237.1 ft. TF - Tap Factory Made, at 03 o'clock, -, within 8 inches of joint: NO, 6"256 ft. FM - Fracture Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish259.4 ft. AMH - Downstream Manhole, Survey Ends - 04 0081

Observation photos (5)

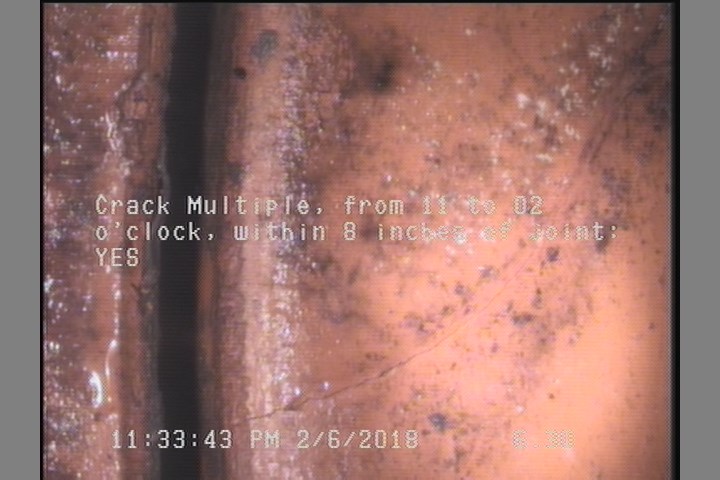

  • Crack Multiple, from 11 to 02 o'clock, within 8 inches of joint: YES

    6.3 ft. - Crack Multiple, from 11 to 02 o'clock, within 8 inches of joint: YES

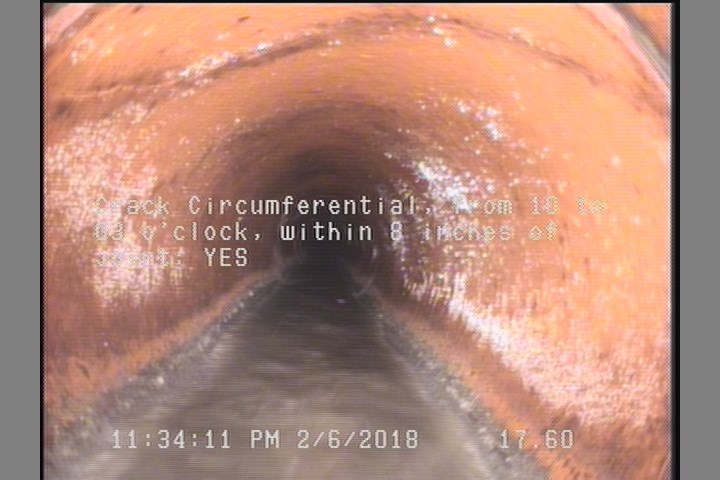

  • Crack Circumferential, from 10 to 03 o'clock, within 8 inches of joint: YES

    17.6 ft. - Crack Circumferential, from 10 to 03 o'clock, within 8 inches of joint: YES

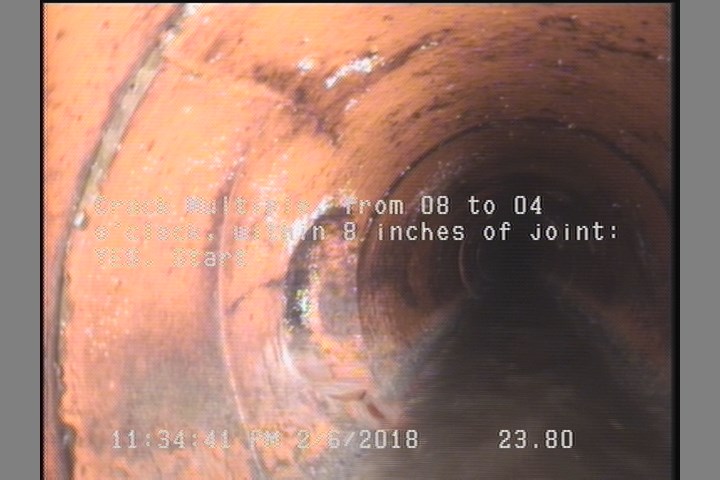

  • Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

    23.8 ft. - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

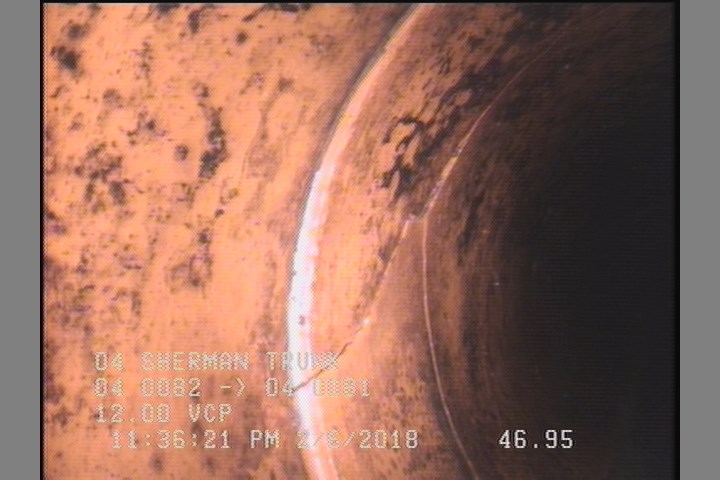

  • Fracture Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES

    47 ft. - Fracture Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES

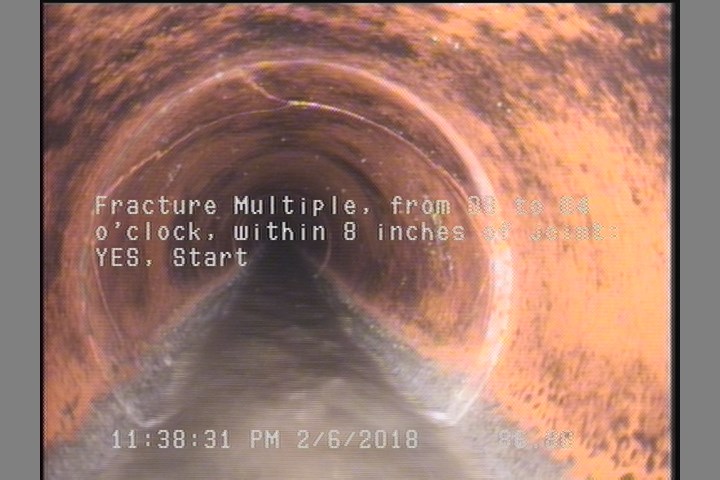

  • Fracture Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

    86.8 ft. - Fracture Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

All inspections of P11820Work order 685064

Observations (21)

DistanceCodeObservation
259.4AMH04 0081
0MWM—
94.2TF—
23.8CM—
86.8FM—
256FM—
0AMH04 0082
47FM—
134.9TF—
185.4TF—
17.6CC—
237.1TF—
36.4TF—
6.3CM—
86.8CM—
180.6TF—
48.2TF—
191.2TFDCRACKS
0MWL—
78.3TF—
25.8TF—

Properties (4)

additional_info
SC347071
custom_field_two
2
customer
LACSD
datetime
2018-02-06T23:32:03-08:00
