Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Feb 5, 2018, 09:36 AM

  • 05 0726_05 0725_05022018_015323.mp4

Date
02/05/2018
W/O
685334
Weather
Dry
Operator/Surveyor
S. LOPEZ
Sewer ID
Z00521
PipeID
P05949
Time
1:36 AM
Certificate
U-111-11880
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
No Pre-Cleaning
Media Label
K5398
Sewer Name
05 SOUTH INGLEWOOD-ORANGE AVENUE TRUNK, EXTENSION #1
City
INGLEWOOD
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 05
Page No.
07
Purpose
Routine Assessment
Project
WO_685334_TV05333_FEB2018
Sewer Type
Gravity
Material
Vitrified Clay Pipe
Shape
Circular
Height
8 in.
Width
8 in.
Upstream MH
05 0726
Downstream MH
05 0725
Dir. of Survey
Downstream
Length Surveyed
374.4 ft.
Total Length
374.4 ft.
Structural Index
4
Structural Quick
4N00
Structural Rating
292
O&M Index
1
O&M Quick
1J00
O&M Rating
57
Overall Index
3
Overall Quick
—
Overall Rating
349
Pipe schematic from manhole 05 0726 to 05 0725
MH: 05 0726MH: 05 0725downstream0 ft. MWM - Water Mark, 25 %of cross sectional area0 ft. AMH - Upstream Manhole, Survey Begins - 05 07260 ft. MGO - General Observation - COCKROACHES IN MANHOLE0 ft. MWL - Water Level, 10 %of cross sectional area5 ft. FM - Fracture Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start38.3 ft. RFJ - Roots Fine Joint, from 08 to 04 o'clock, within 8 inches of joint: YESR, Start97.2 ft. TFA - Tap Factory Made Active, at 03 o'clock, -, within 8 inches of joint: NO, 6"159.3 ft. TFA - Tap Factory Made Active, at 03 o'clock, -, within 8 inches of joint: NO, 6"222.4 ft. TFA - Tap Factory Made Active, at 03 o'clock, -, within 8 inches of joint: NO, 6"281.7 ft. TFA - Tap Factory Made Active, at 03 o'clock, -, within 8 inches of joint: NO, 6"322.6 ft. RFJ - Roots Fine Joint, from 08 to 04 o'clock, within 8 inches of joint: YESR, Finish334.9 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: NO, 6"372.2 ft. MGO - General Observation - COCKROACHES IN MANHOLE372.2 ft. FM - Fracture Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish374.4 ft. AMH - Downstream Manhole, Survey Ends - 05 0725374.4 ft. MGO - General Observation - ACTIVE CONNECTION AT MH 9 O'CLOCK

Observation photos (2)

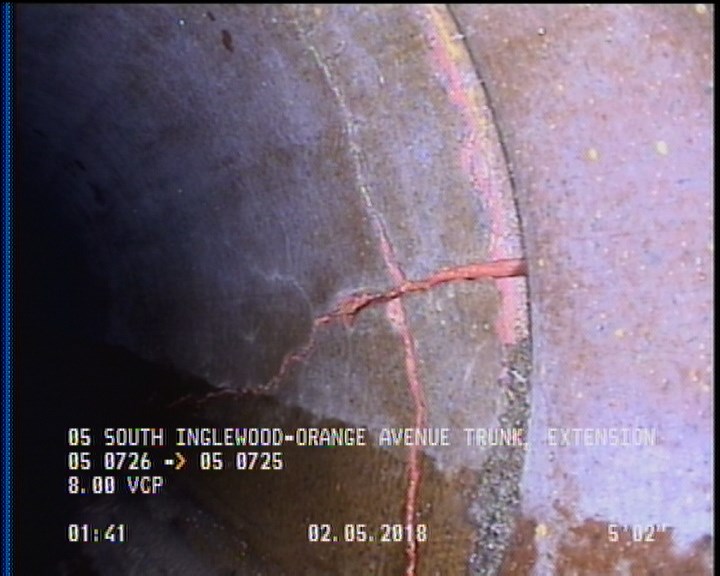

  • Fracture Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

    5 ft. - Fracture Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

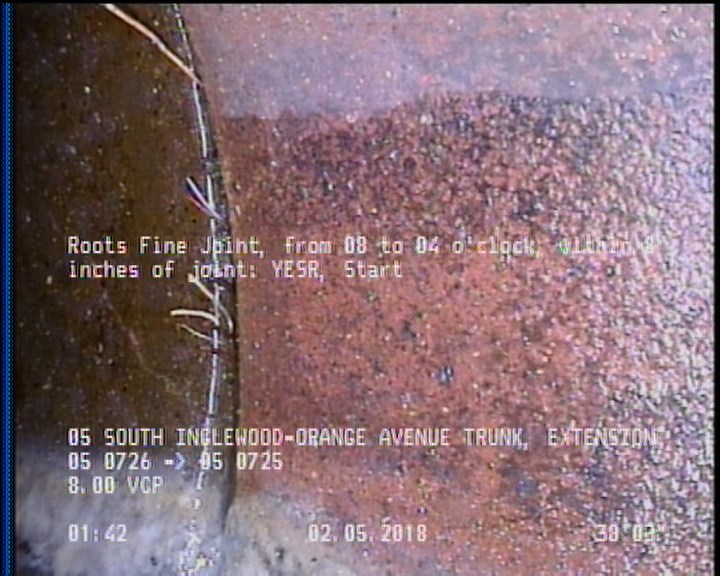

  • Roots Fine Joint, from 08 to 04 o'clock, within 8 inches of joint: YESR, Start

    38.3 ft. - Roots Fine Joint, from 08 to 04 o'clock, within 8 inches of joint: YESR, Start

All inspections of P05949Work order 685334

Observations (16)

DistanceCodeObservation
5FM—
281.7TFA—
322.6RFJ—
372.2MGOCOCKROACHES IN MANHOLE
38.3RFJ—
0MWM—
374.4AMH05 0725
159.3TFA—
97.2TFA—
374.4MGOACTIVE CONNECTION AT MH 9 O'CLOCK
0AMH05 0726
0MGOCOCKROACHES IN MANHOLE
222.4TFA—
372.2FM—
0MWL—
334.9TFC—

Properties (4)

additional_info
SC346977
custom_field_two
2
customer
LACSD
datetime
2018-02-05T01:36:54-08:00
