Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Feb 7, 2018, 06:54 AM

  • 04 0083A_04 0083 _06022018_232841.mp4

Date
02/06/2018
W/O
685064
Weather
Dry
Operator/Surveyor
B.FUGATE
Sewer ID
Z00415
PipeID
P11822
Time
10:54 PM
Certificate
U-508-7069
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
No Pre-Cleaning
Media Label
K5433
Sewer Name
04 SHERMAN TRUNK
City
WEST HOLLYWOOD
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 04
Page No.
01
Purpose
Routine Assessment
Project
WO_685064_TV04009_FEB2018
Sewer Type
Gravity
Material
Vitrified Clay Pipe
Shape
Circular
Height
12 in.
Width
12 in.
Upstream MH
04 0083A
Downstream MH
04 0083
Dir. of Survey
Downstream
Length Surveyed
391.5 ft.
Total Length
391.5 ft.
Structural Index
3
Structural Quick
413K
Structural Rating
183
O&M Index
2
O&M Quick
3122
O&M Rating
8
Overall Index
3
Overall Quick
—
Overall Rating
191
Pipe schematic from manhole 04 0083A to 04 0083
MH: 04 0083AMH: 04 0083downstream0 ft. MWL - Water Level, 10 %of cross sectional area0 ft. AMH - Upstream Manhole, Survey Begins - 04 0083A0 ft. MGO - General Observation - CONNECTION AT MH 9 O'CLOCK0 ft. MWM - Water Mark, 15 %of cross sectional area0 ft. MGO - General Observation - CONNECTION AT MH 3 O'CLOCK32.7 ft. TF - Tap Factory Made, at 10 o'clock, -, within 8 inches of joint: NO, 6"76.4 ft. FM - Fracture Multiple, from 07 to 05 o'clock, within 8 inches of joint: YES - SOIL VISIBLE79.2 ft. TF - Tap Factory Made, at 09 o'clock, -, within 8 inches of joint: NO, 6"80.8 ft. CM - Crack Multiple, from 01 to 04 o'clock, within 8 inches of joint: YES82.4 ft. TF - Tap Factory Made, at 03 o'clock, -, within 8 inches of joint: NO, 6"82.9 ft. CL - Crack Longitudinal, at 02 o'clock, within 8 inches of joint: YES88.8 ft. TF - Tap Factory Made, at 02 o'clock, -, within 8 inches of joint: NO, 6"99.3 ft. CM - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start102.6 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: NO, 6"108.6 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: NO, 6"128 ft. TF - Tap Factory Made, at 10 o'clock, -, within 8 inches of joint: NO, 6"136.4 ft. TF - Tap Factory Made, at 03 o'clock, -, within 8 inches of joint: NO, 6"141.6 ft. TFC - Tap Factory Made Capped, at 12 o'clock, -, within 8 inches of joint: NO, 6"177.7 ft. TF - Tap Factory Made, at 10 o'clock, -, within 8 inches of joint: NO, 6"186.1 ft. TF - Tap Factory Made, at 03 o'clock, -, within 8 inches of joint: NO, 6"229.5 ft. TFA - Tap Factory Made Active, at 09 o'clock, -, within 8 inches of joint: NO, 6"231.9 ft. TF - Tap Factory Made, at 03 o'clock, -, within 8 inches of joint: NO, 6"237.7 ft. RFB - Roots Fine Barrell, at 12 o'clock250.2 ft. RFJ - Roots Fine Joint, from 07 to 05 o'clock, within 8 inches of joint: YES252.2 ft. TF - Tap Factory Made, at 03 o'clock, -, within 8 inches of joint: NO, 6"282.3 ft. TF - Tap Factory Made, at 09 o'clock, -, within 8 inches of joint: NO, 6"282.3 ft. RML - Roots Medium Lateral, at 10 o'clock, 20 %, within 8 inches of joint: NO282.8 ft. RFB - Roots Fine Barrell, from 07 to 02 o'clock290.8 ft. TF - Tap Factory Made, at 10 o'clock, -, within 8 inches of joint: NO, 6"327.3 ft. TB - Tap Break-In, at 02 o'clock, -, within 8 inches of joint: NO, 6"329.9 ft. TFC - Tap Factory Made Capped, at 03 o'clock, -, within 8 inches of joint: NO, 6"373.2 ft. TF - Tap Factory Made, at 03 o'clock, -, within 8 inches of joint: NO, 6"378 ft. TF - Tap Factory Made, at 10 o'clock, -, within 8 inches of joint: NO, 6"391.3 ft. CM - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish391.4 ft. MGO - General Observation - NO MH 04 0083391.5 ft. AMH - Downstream Manhole, Survey Ends - 04 0082

Observation photos (7)

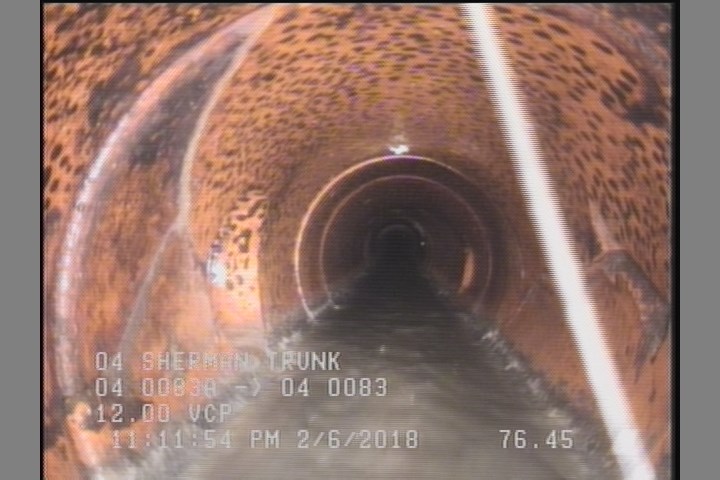

  • Fracture Multiple, from 07 to 05 o'clock, within 8 inches of joint: YES - SOIL VISIBLE

    76.4 ft. - Fracture Multiple, from 07 to 05 o'clock, within 8 inches of joint: YES - SOIL VISIBLE

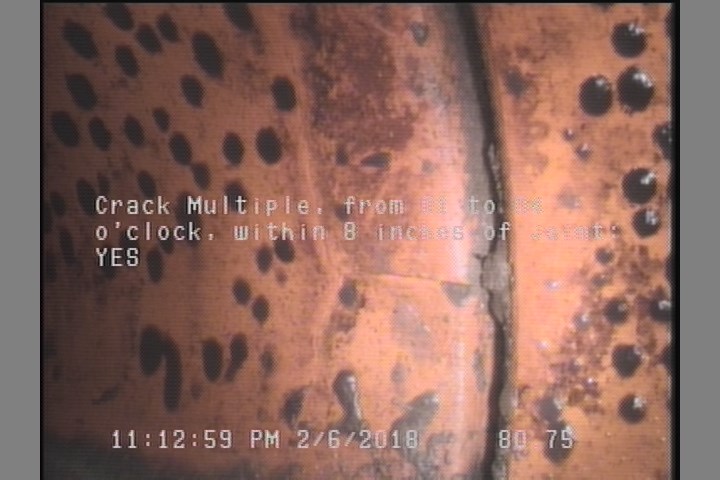

  • Crack Multiple, from 01 to 04 o'clock, within 8 inches of joint: YES

    80.8 ft. - Crack Multiple, from 01 to 04 o'clock, within 8 inches of joint: YES

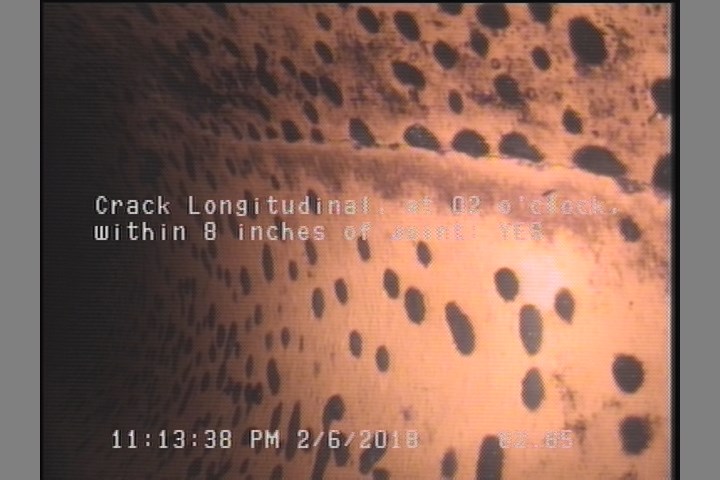

  • Crack Longitudinal, at 02 o'clock, within 8 inches of joint: YES

    82.9 ft. - Crack Longitudinal, at 02 o'clock, within 8 inches of joint: YES

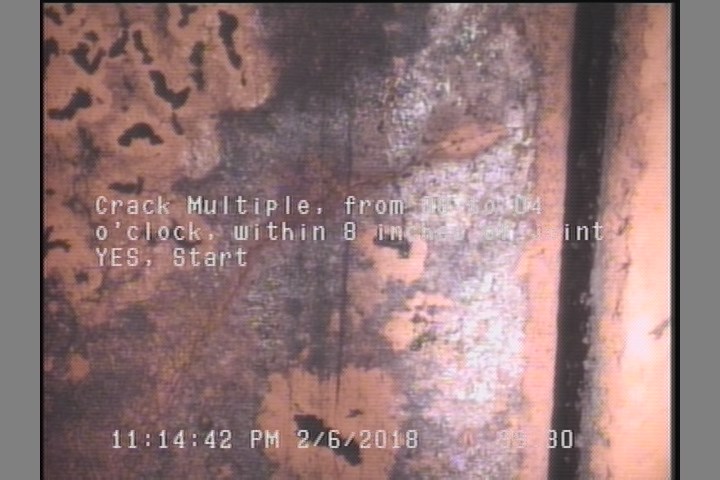

  • Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

    99.3 ft. - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

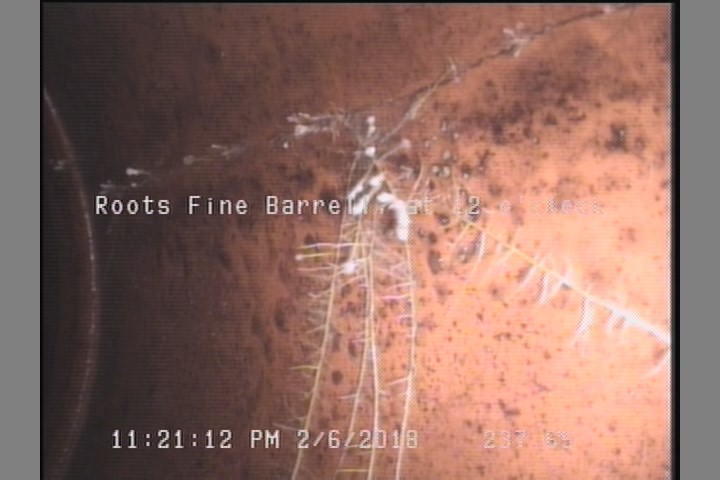

  • Roots Fine Barrell, at 12 o'clock

    237.7 ft. - Roots Fine Barrell, at 12 o'clock

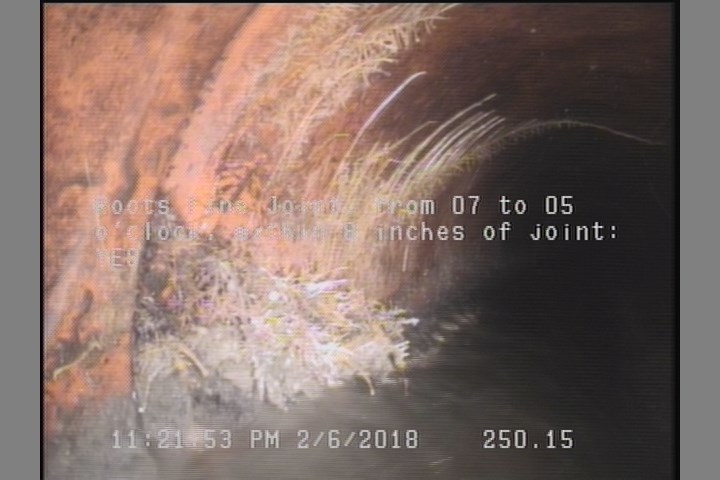

  • Roots Fine Joint, from 07 to 05 o'clock, within 8 inches of joint: YES

    250.2 ft. - Roots Fine Joint, from 07 to 05 o'clock, within 8 inches of joint: YES

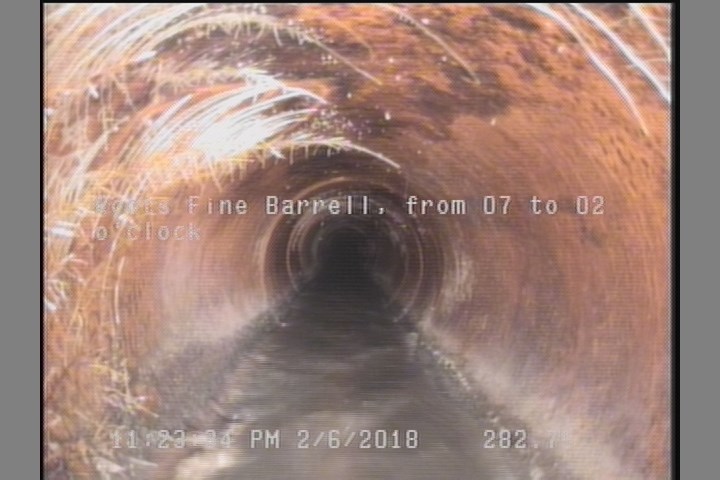

  • Roots Fine Barrell, from 07 to 02 o'clock

    282.8 ft. - Roots Fine Barrell, from 07 to 02 o'clock

All inspections of P11822Work order 685064

Observations (36)

DistanceCodeObservation
282.3TF—
82.9CL—
250.2RFJ—
108.6TFC—
282.3RML—
391.3CM—
0MWL—
82.4TF—
329.9TFC—
391.4MGONO MH 04 0083
252.2TF—
32.7TF—
79.2TF—
237.7RFB—
0AMH04 0083A
0MGOCONNECTION AT MH 9 O'CLOCK
229.5TFA—
99.3CM—
102.6TFC—
136.4TF—
88.8TF—
186.1TF—
282.8RFB—
373.2TF—
231.9TF—
0MWM—
327.3TB—
177.7TF—
76.4FMSOIL VISIBLE
378TF—
391.5AMH04 0082
141.6TFC—
128TF—
0MGOCONNECTION AT MH 3 O'CLOCK
290.8TF—
80.8CM—

Properties (4)

additional_info
SC347071
custom_field_two
2
customer
LACSD
datetime
2018-02-06T22:54:13-08:00
