Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Feb 24, 2018, 03:00 PM

  • 03 0057_03 0056_2242018_070814.mp4

Date
02/24/2018
W/O
0688149
Weather
Dry
Operator/Surveyor
FRANKLIN
Sewer ID
Z00366
PipeID
P05078
Time
7:00 AM
Certificate
U-415-06024039
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
G7639
Sewer Name
03 LOS COYOTES DIAGONAL TRUNK
City
LAKEWOOD
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 03
Page No.
09
Purpose
Routine Assessment
Project
20180224DF_LOS_COYOTES_DIAGONAL_TR
Material
Vitrified Clay Pipe
Shape
Circular
Height
15 in.
Upstream MH
03 0057
Downstream MH
03 0056
Dir. of Survey
Downstream
Length Surveyed
60.6 ft.
Total Length
60.6 ft.
Structural Index
0
Structural Quick
0000
Structural Rating
0
O&M Index
2
O&M Quick
2100
O&M Rating
2
Overall Index
2
Overall Quick
—
Overall Rating
2
Pipe schematic from manhole 03 0057 to 03 0056
MH: 03 0057MH: 03 0056downstream0 ft. AMH - Upstream Manhole, Survey Begins - 7:04 AM0 ft. MWM - Water Mark, 35 %of cross sectional area0 ft. MWL - Water Level, 30 %of cross sectional area8 ft. DAE - Deposits Attached Encrustation, 10 %of cross sectional area, from 08 to 04 o'clock, , within 8 inches of joint: YES, Start8.8 ft. MGP - General Photograph19.1 ft. MGP - General Photograph - 15%24.2 ft. MGP - General Photograph28.8 ft. MGP - General Photograph44.1 ft. MGP - General Photograph49.3 ft. MGP - General Photograph54.7 ft. MGP - General Photograph54.7 ft. MGP - General Photograph60.6 ft. MSA - Survey Abandoned - CALCIUM60.6 ft. DAE - Deposits Attached Encrustation, 10 %of cross sectional area, from 08 to 04 o'clock, , within 8 inches of joint: YES, Finish

Observation photos (10)

  • Upstream Manhole, Survey Begins - 7:04 AM

    0 ft. - Upstream Manhole, Survey Begins - 7:04 AM

  • Deposits Attached Encrustation, 10 %of cross sectional area, from 08 to 04 o'clock, , within 8 inches of joint: YES, Start

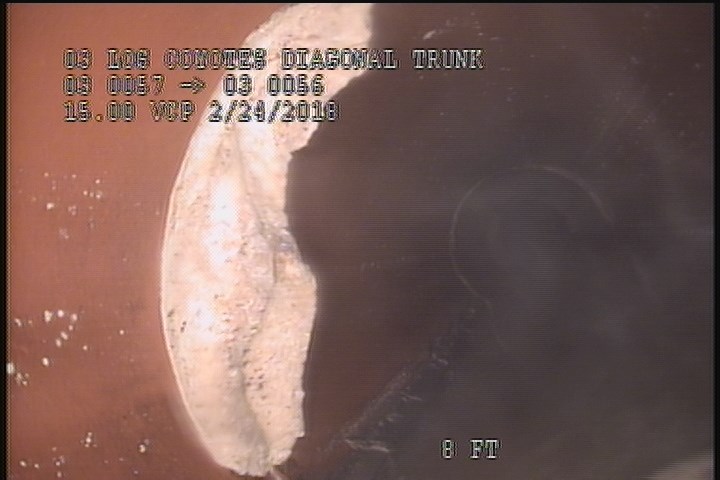

    8 ft. - Deposits Attached Encrustation, 10 %of cross sectional area, from 08 to 04 o'clock, , within 8 inches of joint: YES, Start

  • General Photograph

    8.8 ft. - General Photograph

  • General Photograph - 15%

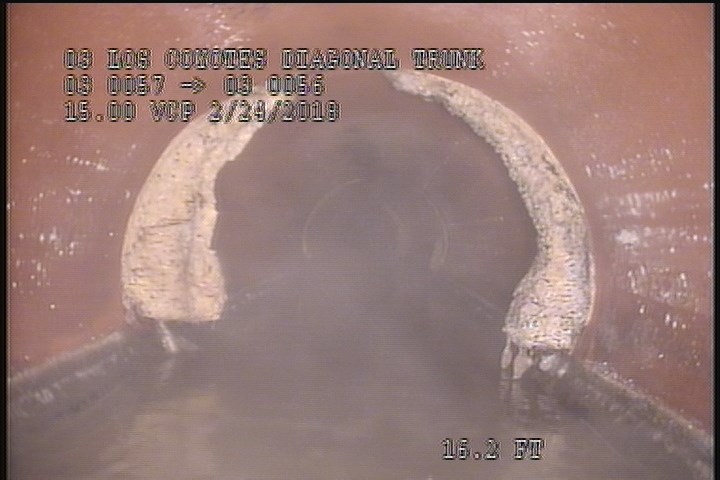

    19.1 ft. - General Photograph - 15%

  • General Photograph

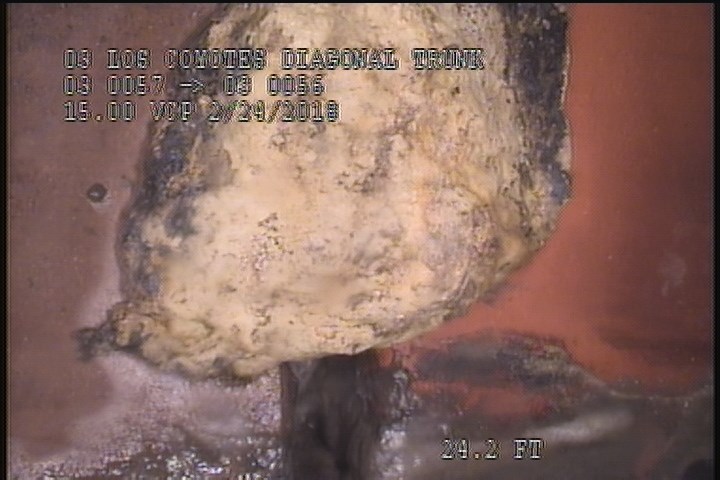

    24.2 ft. - General Photograph

  • General Photograph

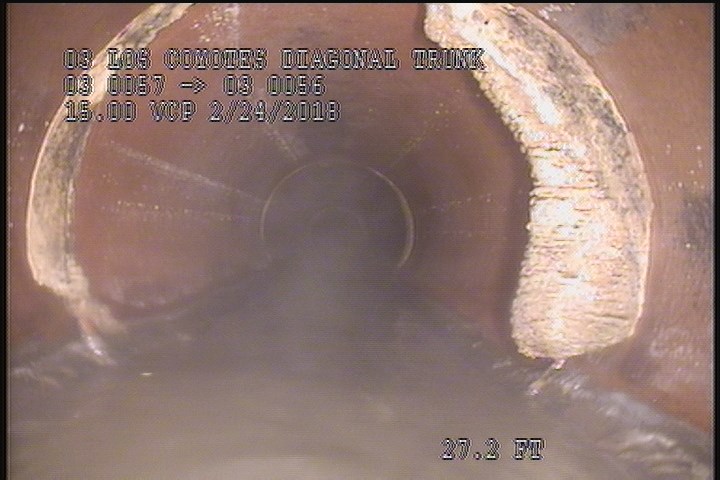

    28.8 ft. - General Photograph

  • General Photograph

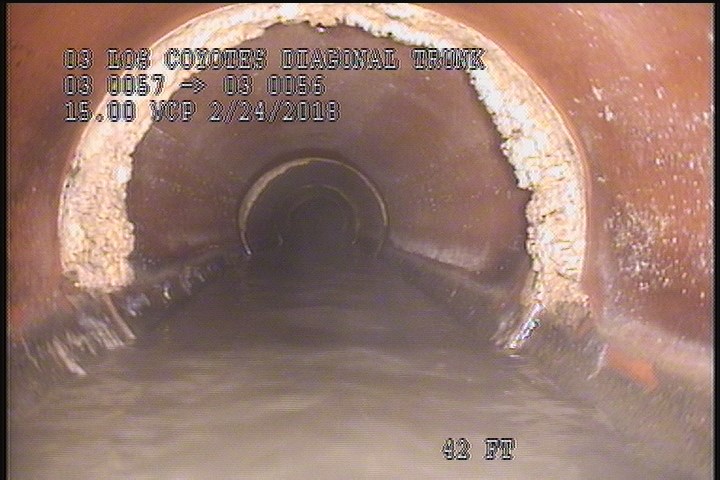

    44.1 ft. - General Photograph

  • General Photograph

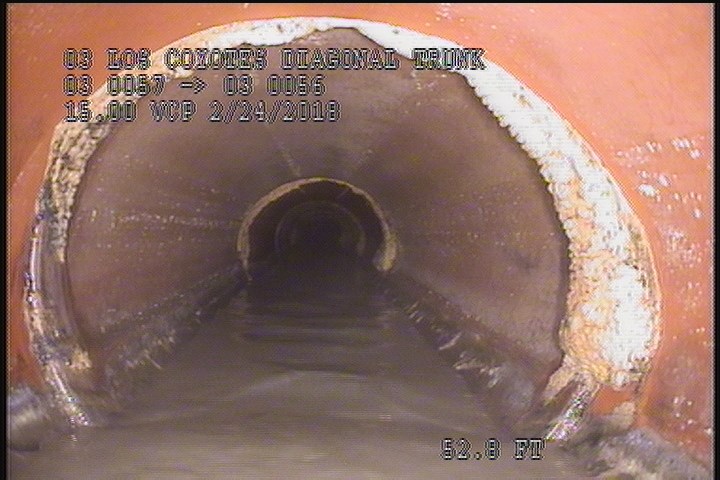

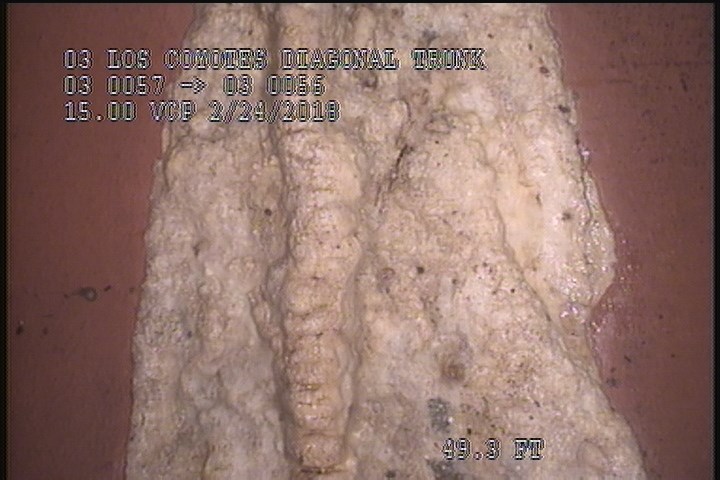

    49.3 ft. - General Photograph

  • General Photograph

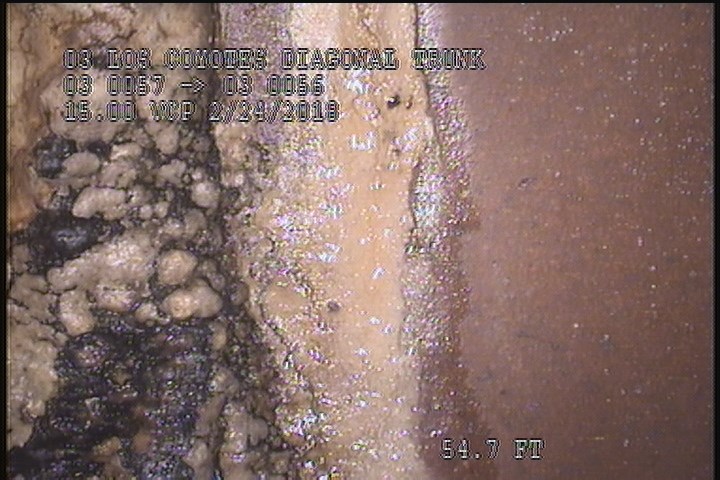

    54.7 ft. - General Photograph

  • General Photograph

    54.7 ft. - General Photograph

All inspections of P05078Work order 0688149

Observations (14)

DistanceCodeObservation
19.1MGP15%
8DAE—
54.7MGP—
54.7MGP—
60.6MSACALCIUM
0AMH7:04 AM
24.2MGP—
44.1MGP—
60.6DAE—
8.8MGP—
0MWM—
0MWL—
28.8MGP—
49.3MGP—

Properties (4)

additional_info
CALCIUM INSPECTION
custom_field_two
5
customer
LACSD
datetime
2018-02-24T07:00:02-08:00
