Wastewater/Activity/PacpInspection/1.0Feb 22, 2018, 05:54 PM
F 0069_F 0068_2222018_104632.mp4
- Date
- 02/22/2018
- W/O
- 0691319
- Weather
- Dry
- Operator/Surveyor
- SANTIAGO OBREGON
- Sewer ID
- Z00035
- PipeID
- P10154
- Time
- 9:54 AM
- Certificate
- U-1014-06022541
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- Not Known
- Media Label
- G7637
- Sewer Name
- F JOINT OUTFALL F - UNIT 3A
- City
- BELLFLOWER
- Loc. details
- Main Highway - Suburban/Rural
- Location Code
- B
- Use of Sewer
- Sanitary Sewer
- District
- District 02
- Page No.
- 39
- Purpose
- Routine Assessment
- Project
- 20180222SHO_JOINT_OUTFALL_F_UNIT_3A
- Material
- Reinforced Concrete Pipe
- Shape
- Circular
- Height
- 60 in.
- Upstream MH
- F 0069
- Downstream MH
- F 0068
- Dir. of Survey
- Downstream
- Length Surveyed
- 352.5 ft.
- Total Length
- 352.5 ft.
- Structural Index
- 3
- Structural Quick
- 3100
- Structural Rating
- 3
- O&M Index
- 0
- O&M Quick
- 0000
- O&M Rating
- 0
- Overall Index
- 3
- Overall Quick
- —
- Overall Rating
- 3
Observation photos (3)

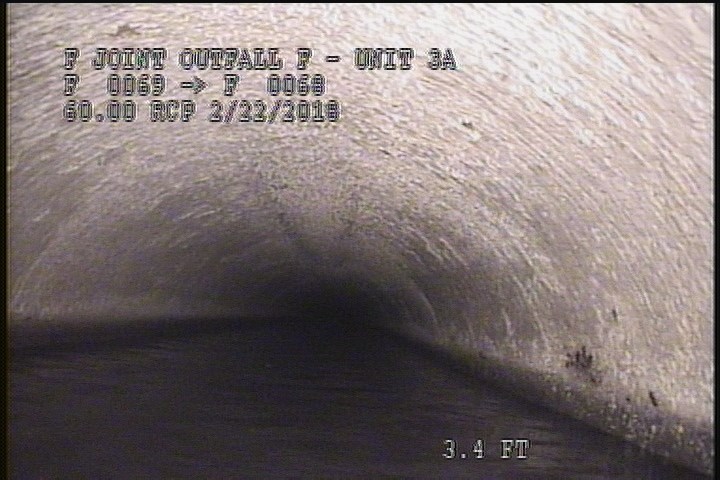

3.4 ft. - General Observation - 80% MAG COAT INTACT

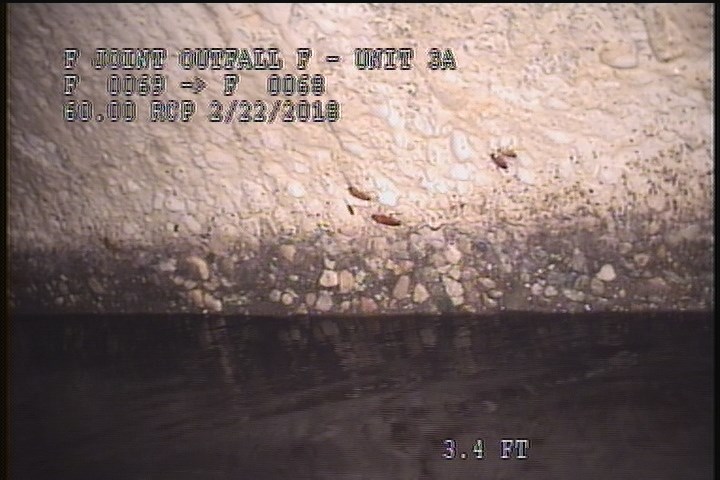

3.4 ft. - Surface Aggregate Visible, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

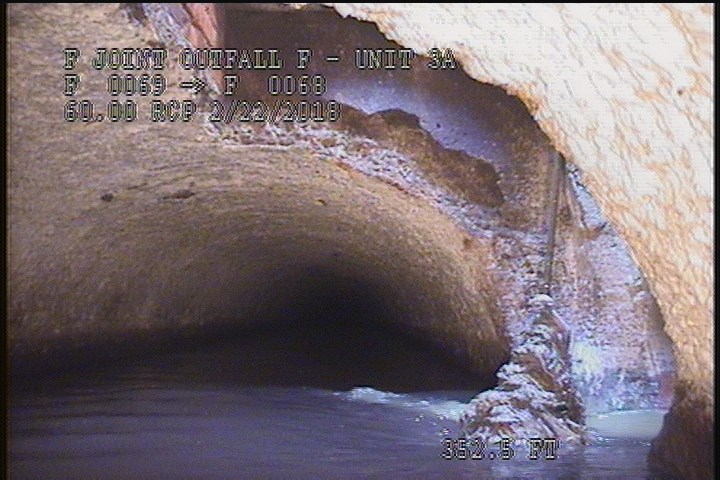

352.5 ft. - Downstream Manhole, Survey Ends - 1105
Observations (7)
| Distance | Code | Observation |
|---|---|---|
| 0 | MWM | — |
| 0 | AMH | 1045 |
| 351.2 | SAV | — |
| 0 | MWL | — |
| 3.4 | MGO | 80% MAG COAT INTACT |
| 3.4 | SAV | — |
| 352.5 | AMH | 1105 |
Properties (4)
- custom_field_three
- VISIBLE AGGREGATE THROUGHOUT THE REACH
- custom_field_two
- 3
- customer
- LACSD
- datetime
- 2018-02-22T09:54:30-08:00
