Wastewater/Activity/PacpInspection/1.0Feb 14, 2018, 07:41 AM
A 1077_A 0918_13022018_234626.mp4
- Date
- 02/13/2018
- W/O
- 685324
- Weather
- Dry
- Operator/Surveyor
- S. LOPEZ
- Sewer ID
- Z00335
- PipeID
- P09452
- Time
- 11:41 PM
- Certificate
- U-111-11880
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- No Pre-Cleaning
- Media Label
- K5405
- Sewer Name
- A JOINT OUTFALL A - UNIT 4
- City
- LONG BEACH
- Loc. details
- Easement/Right of Way
- Location Code
- D
- Use of Sewer
- Sanitary Sewer
- District
- District 03
- Page No.
- 03
- Purpose
- Routine Assessment
- Project
- WO_685324_TV08133_FEB2018
- Sewer Type
- Siphon
- Material
- Reinforced Concrete Pipe
- Shape
- Circular
- Height
- 42 in.
- Width
- 42 in.
- Upstream MH
- A 1077
- Downstream MH
- A 0918
- Dir. of Survey
- Downstream
- Length Surveyed
- 2 ft.
- Total Length
- 2 ft.
- Structural Index
- 0
- Structural Quick
- 0000
- Structural Rating
- 0
- O&M Index
- 2
- O&M Quick
- 2100
- O&M Rating
- 2
- Overall Index
- 2
- Overall Quick
- —
- Overall Rating
- 2
Observation photos (2)

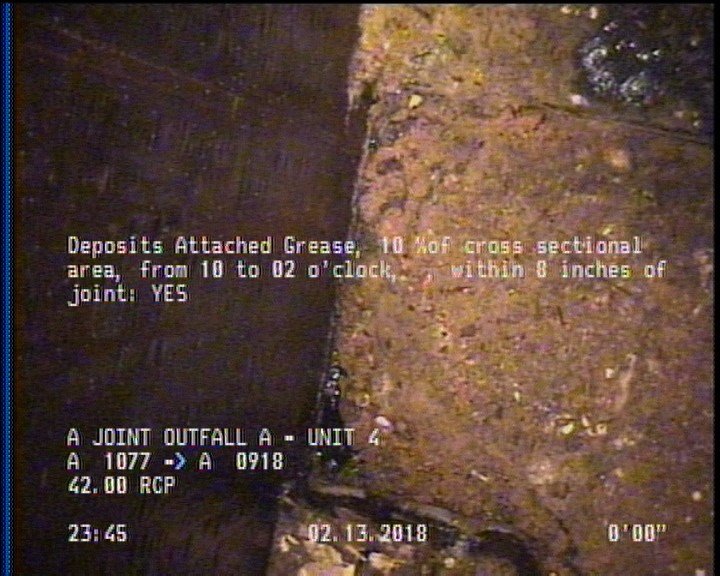

2 ft. - Deposits Attached Grease, 10 %of cross sectional area, from 10 to 02 o'clock, , within 8 inches of joint: YES

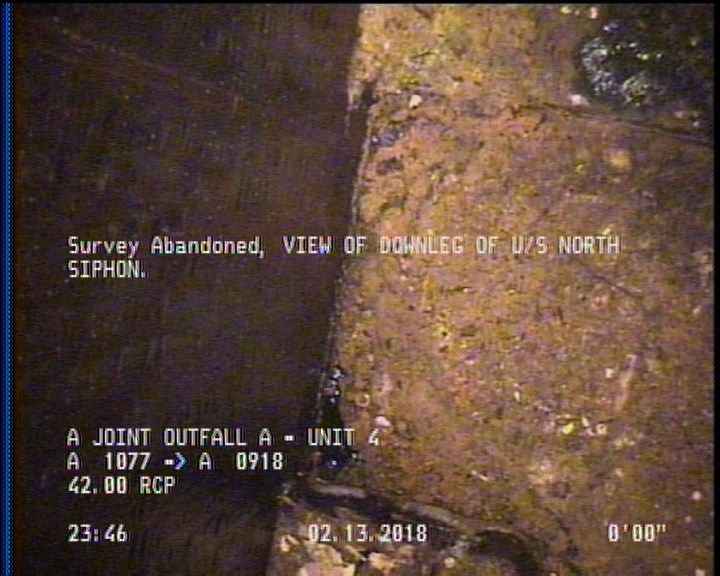

2 ft. - Survey Abandoned - VIEW OF DOWNLEG OF U/S NORTH SIPHON.
Observations (4)
| Distance | Code | Observation |
|---|---|---|
| 2 | DAGS | — |
| 2 | MSA | VIEW OF DOWNLEG OF U/S NORTH SIPHON. |
| 0 | MWL | — |
| 0 | AMH | A 1077, NORTH SIPHON. |
Properties (4)
- additional_info
- SC346989
- custom_field_two
- 3
- customer
- LACSD
- datetime
- 2018-02-13T23:41:48-08:00
