Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Jan 30, 2018, 11:19 AM

  • 18 1047_18 1046 _30012018_033243.mp4

Date
01/30/2018
W/O
684797
Weather
Dry
Operator/Surveyor
S. LOPEZ
Sewer ID
Z00678
PipeID
P14901
Time
3:19 AM
Certificate
U-111-11880
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
No Pre-Cleaning
Media Label
K5393
Sewer Name
18 LA HABRA HEIGHTS TRUNK, SECTION 2A
City
WHITTIER
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 18
Page No.
22
Purpose
Routine Assessment
Project
WO_684797_TV18159_FEB2018
Sewer Type
Gravity
Material
Vitrified Clay Pipe
Shape
Circular
Height
8 in.
Width
8 in.
Upstream MH
18 1047
Downstream MH
18 1046
Dir. of Survey
Downstream
Length Surveyed
255.2 ft.
Total Length
255.2 ft.
Structural Index
3
Structural Quick
3H00
Structural Rating
132
O&M Index
2
O&M Quick
2I12
O&M Rating
102
Overall Index
2
Overall Quick
—
Overall Rating
234
Pipe schematic from manhole 18 1047 to 18 1046
MH: 18 1047MH: 18 1046downstream0 ft. MWL - Water Level, 5 %of cross sectional area0 ft. MWM - Water Mark, 20 %of cross sectional area0 ft. AMH - Upstream Manhole, Survey Begins - 18 10472 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start24.7 ft. CM - Crack Multiple, from 09 to 03 o'clock, within 8 inches of joint: YES37.2 ft. CM - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start74.6 ft. TFA - Tap Factory Made Active, at 03 o'clock, -, within 8 inches of joint: NO, 6"83.5 ft. TFA - Tap Factory Made Active, at 10 o'clock, -, within 8 inches of joint: NO, 6"127.3 ft. RFJ - Roots Fine Joint, from 08 to 04 o'clock, within 8 inches of joint: YESR133.2 ft. RFJ - Roots Fine Joint, from 08 to 04 o'clock, within 8 inches of joint: YESR152.5 ft. TFA - Tap Factory Made Active, at 10 o'clock, -, within 8 inches of joint: NO, 6"194.1 ft. TFA - Tap Factory Made Active, at 10 o'clock, -, within 8 inches of joint: NO, 6"252.5 ft. CM - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish252.5 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Finish255.2 ft. AMH - Downstream Manhole, Survey Ends - 18 1046255.2 ft. MGO - General Observation - ACTIVE CONNECTION AT MH 3 O'CLOCK

Observation photos (5)

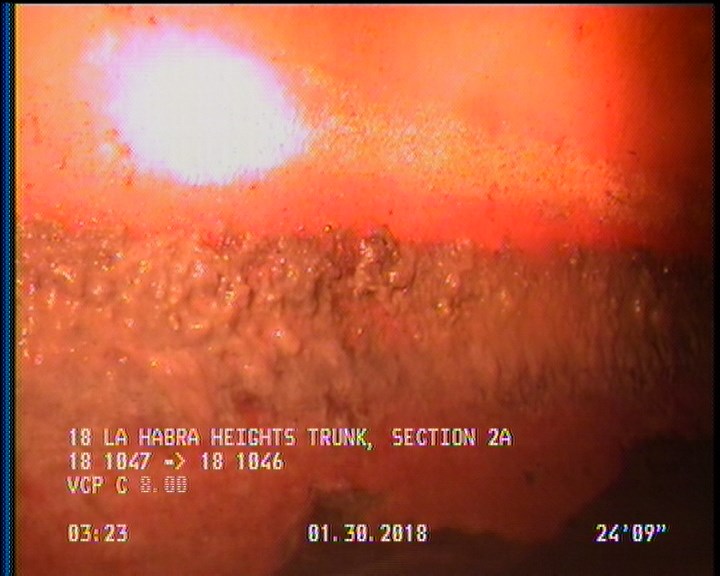

  • Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start

    2 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start

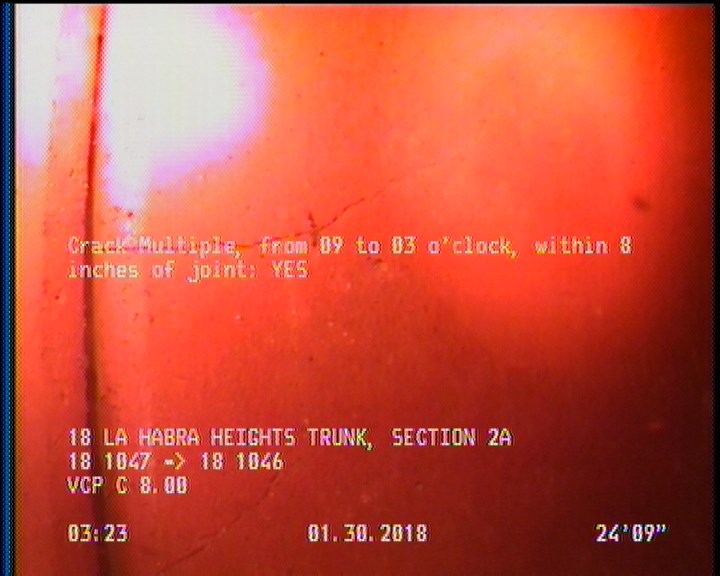

  • Crack Multiple, from 09 to 03 o'clock, within 8 inches of joint: YES

    24.7 ft. - Crack Multiple, from 09 to 03 o'clock, within 8 inches of joint: YES

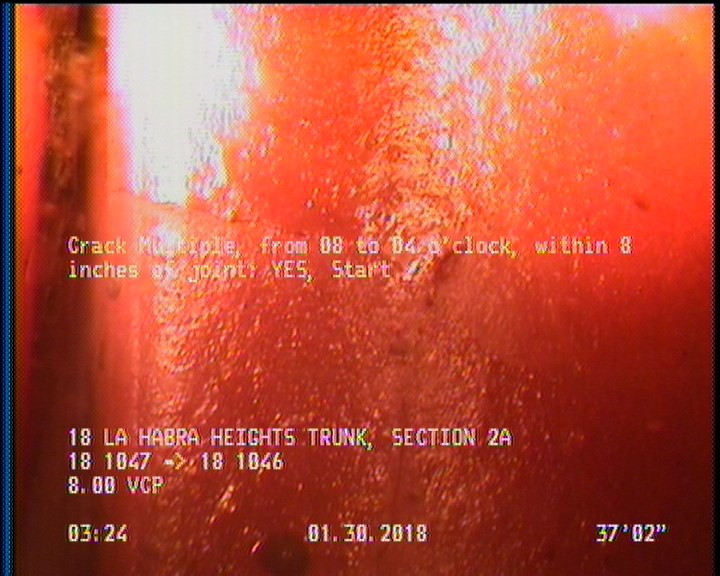

  • Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

    37.2 ft. - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

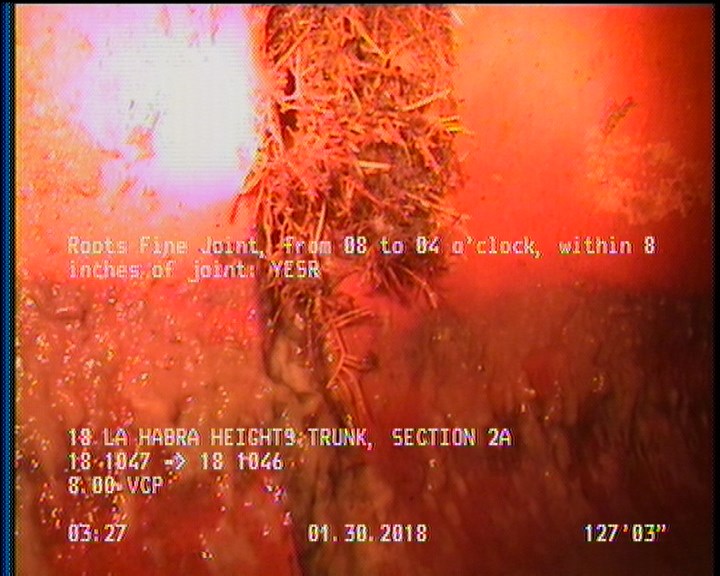

  • Roots Fine Joint, from 08 to 04 o'clock, within 8 inches of joint: YESR

    127.3 ft. - Roots Fine Joint, from 08 to 04 o'clock, within 8 inches of joint: YESR

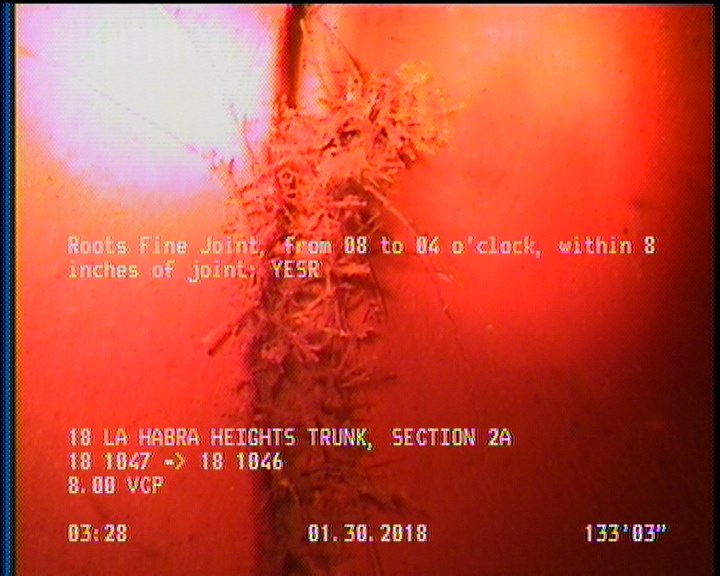

  • Roots Fine Joint, from 08 to 04 o'clock, within 8 inches of joint: YESR

    133.2 ft. - Roots Fine Joint, from 08 to 04 o'clock, within 8 inches of joint: YESR

All inspections of P14901Work order 684797

Observations (16)

DistanceCodeObservation
2DAGS—
252.5CM—
194.1TFA—
152.5TFA—
252.5DAGS—
127.3RFJ—
0MWL—
255.2AMH18 1046
83.5TFA—
24.7CM—
37.2CM—
133.2RFJ—
255.2MGOACTIVE CONNECTION AT MH 3 O'CLOCK
74.6TFA—
0MWM—
0AMH18 1047

Properties (4)

additional_info
SC346972
custom_field_two
3
customer
LACSD
datetime
2018-01-30T03:19:48-08:00
