Wastewater/Activity/PacpInspection/1.0Feb 2, 2018, 11:59 AM
21 0944_21 0943_02022018_041250.mp4
- Date
- 02/02/2018
- W/O
- 684706
- Weather
- Dry
- Operator/Surveyor
- K. ADAME
- Sewer ID
- Z00760
- PipeID
- P16037
- Time
- 3:59 AM
- Certificate
- U-0817-07009000
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- No Pre-Cleaning
- Media Label
- K4863
- Sewer Name
- 21 CLAREMONT OUTFALL TRUNK
- City
- CLAREMONT, CA
- Loc. details
- Light Highway
- Location Code
- C
- Use of Sewer
- Sanitary Sewer
- District
- District 21
- Page No.
- 07
- Purpose
- Routine Assessment
- Project
- WO_684706_TV21028_FEB2018
- Sewer Type
- Gravity
- Material
- NRCP
- Shape
- Circular
- Height
- 12 in.
- Width
- 12 in.
- Upstream MH
- 21 0944
- Downstream MH
- 21 0943
- Dir. of Survey
- Downstream
- Length Surveyed
- 43.3 ft.
- Total Length
- 43.3 ft.
- Structural Index
- 3
- Structural Quick
- 3100
- Structural Rating
- 3
- O&M Index
- 0
- O&M Quick
- 0000
- O&M Rating
- 0
- Overall Index
- 3
- Overall Quick
- —
- Overall Rating
- 3
Observation photos (3)

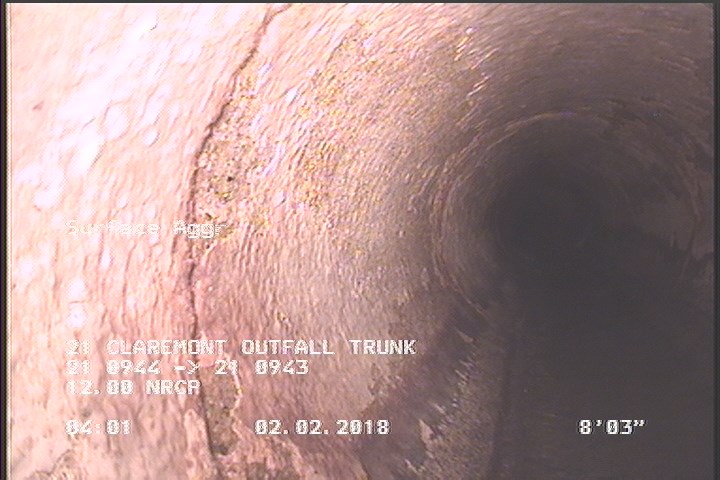

8.2 ft. - Surface Aggregate Visible, from 08 to 04 o'clock, within 8 inches of joint: NO, Start

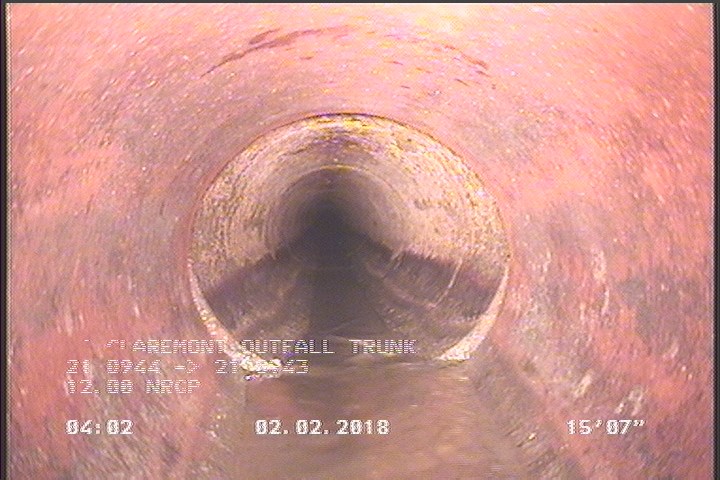

15.6 ft. - Material Change, Vitrified clay pipe

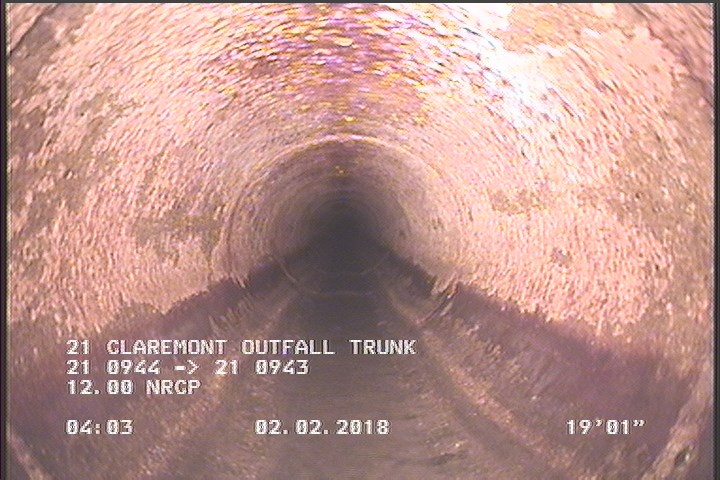

19 ft. - Material Change, Concrete pipe (non-reinfored)
Observations (10)
| Distance | Code | Observation |
|---|---|---|
| 8.2 | SAV | — |
| 0 | AMH | 21 0944 |
| 43.3 | AMH | 21 0942 |
| 19 | MMC | — |
| 2.8 | MGO | MAG COAT |
| 40.7 | SAV | — |
| 0 | MWL | — |
| 15.6 | MMC | — |
| 43.2 | MGO | CONNECTION AT MH 9 O'CLOCK |
| 0 | MWM | — |
Properties (4)
- additional_info
- SC346888
- custom_field_two
- 2
- customer
- LACSD
- datetime
- 2018-02-02T03:59:47-08:00
