Wastewater/Activity/PacpInspection/1.0Feb 2, 2018, 08:54 AM
21 0949_21 0948_02022018_013929.mp4
- Date
- 02/02/2018
- W/O
- 684706
- Weather
- Dry
- Operator/Surveyor
- K. ADAME
- Sewer ID
- Z00760
- PipeID
- P16043
- Time
- 12:54 AM
- Certificate
- U-0817-07009000
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- No Pre-Cleaning
- Media Label
- K4863
- Sewer Name
- 21 CLAREMONT OUTFALL TRUNK
- City
- CLAREMONT, CA
- Loc. details
- Main Highway - Suburban/Rural
- Location Code
- B
- Use of Sewer
- Sanitary Sewer
- District
- District 21
- Page No.
- 07
- Purpose
- Routine Assessment
- Project
- WO_684706_TV21028_FEB2018
- Sewer Type
- Gravity
- Material
- NRCP
- Shape
- Circular
- Height
- 15 in.
- Width
- 15 in.
- Upstream MH
- 21 0949
- Downstream MH
- 21 0948
- Dir. of Survey
- Downstream
- Length Surveyed
- 510.4 ft.
- Total Length
- 510.4 ft.
- Structural Index
- 3
- Structural Quick
- 3100
- Structural Rating
- 3
- O&M Index
- 2
- O&M Quick
- 2300
- O&M Rating
- 6
- Overall Index
- 2
- Overall Quick
- —
- Overall Rating
- 9
Observation photos (2)

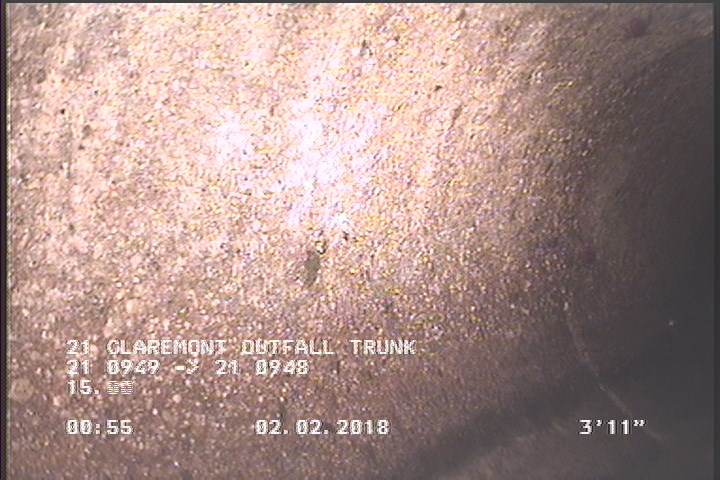

3.9 ft. - Surface Aggregate Visible, from 08 to 04 o'clock, within 8 inches of joint: NO, Start

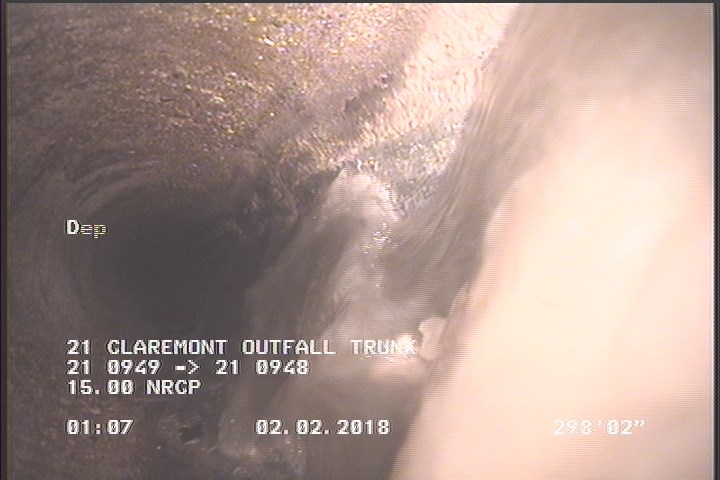

298 ft. - Deposits Attached Ragging, 10 %of cross sectional area, from 05 to 07 o'clock, , within 8 inches of joint: YES
Observations (13)
| Distance | Code | Observation |
|---|---|---|
| 155.7 | DSGV | — |
| 71.3 | TB | — |
| 510.3 | MSA | DUE TOO DEBRIS |
| 38.5 | TB | — |
| 298 | DAR | — |
| 0 | AMH | 21 0949 |
| 0 | MWL | — |
| 3.9 | SAV | — |
| 190.6 | DSGV | — |
| 510.4 | SAV | — |
| 86.6 | TB | — |
| 0 | MWM | — |
| 504.3 | DSZ | ROCK |
Properties (4)
- additional_info
- SC346888
- custom_field_two
- 2
- customer
- LACSD
- datetime
- 2018-02-02T00:54:28-08:00
