Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Feb 6, 2018, 11:16 AM

  • 21 0933_21 0932_06022018_034031.mp4

Date
02/06/2018
W/O
684706
Weather
Dry
Operator/Surveyor
E.RUIZ
Sewer ID
Z00760
PipeID
P16021
Time
3:16 AM
Certificate
U-715-07000753
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
K5309
Sewer Name
21 CLAREMONT OUTFALL TRUNK
City
CLAREMONT, CA
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 21
Page No.
10
Purpose
Routine Assessment
Project
WO_684706_TV21028_FEB2018
Sewer Type
Gravity
Material
NRCP
Shape
Circular
Height
12 in.
Width
12 in.
Upstream MH
21 0933
Downstream MH
21 0932
Dir. of Survey
Downstream
Length Surveyed
693.6 ft.
Total Length
693.6 ft.
Structural Index
4
Structural Quick
4131
Structural Rating
7
O&M Index
0
O&M Quick
0000
O&M Rating
0
Overall Index
4
Overall Quick
—
Overall Rating
7
Pipe schematic from manhole 21 0933 to 21 0932
MH: 21 0933MH: 21 0932downstream0 ft. MWM - Water Mark, 30 %of cross sectional area0 ft. MWL - Water Level, 15 %of cross sectional area0 ft. MGO - General Observation - CONNECTION AT MH 9 O'CLOCK0 ft. AMH - Upstream Manhole, Survey Begins - 21 09334.4 ft. SAP - Surface Aggregate Projecting, from 08 to 04 o'clock, within 8 inches of joint: YES, Start37.9 ft. FM - Fracture Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start47.3 ft. TB - Tap Break-In, at 10 o'clock, -, within 8 inches of joint: YES, 6"179.2 ft. TF - Tap Factory Made, at 12 o'clock, -, within 8 inches of joint: YES, 6"197.4 ft. TB - Tap Break-In, at 10 o'clock, -, within 8 inches of joint: YES, 6"211.8 ft. TB - Tap Break-In, at 10 o'clock, -, within 8 inches of joint: YES, 6"317.7 ft. TBA - Tap Break-In Active, at 10 o'clock, -, within 8 inches of joint: YES, 6"335.1 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: YES, 6"375.8 ft. TBA - Tap Break-In Active, at 12 o'clock, -, within 8 inches of joint: YES, 6"420.8 ft. TBA - Tap Break-In Active, at 12 o'clock, -, within 8 inches of joint: YES, 6"487.8 ft. TBA - Tap Break-In Active, at 10 o'clock, -, within 8 inches of joint: YES, 6"569.9 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: YES, 6"572.5 ft. TBA - Tap Break-In Active, at 10 o'clock, -, within 8 inches of joint: YES, 6"691.9 ft. FM - Fracture Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish691.9 ft. SAP - Surface Aggregate Projecting, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish693.6 ft. AMH - Downstream Manhole, Survey Ends - 21 0932

Observation photos (2)

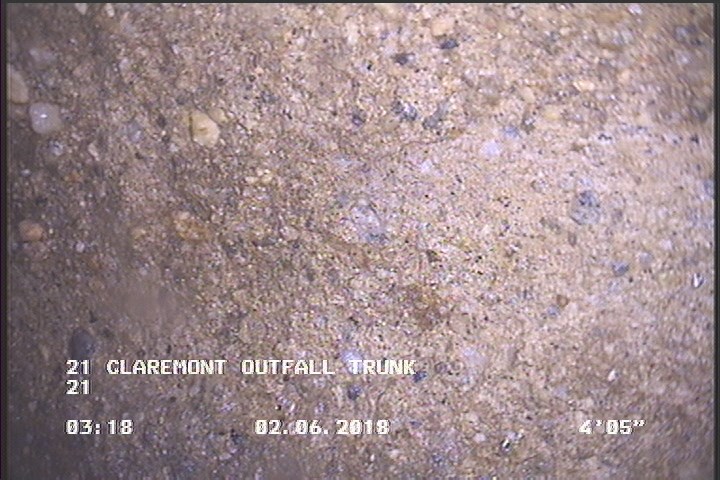

  • Surface Aggregate Projecting, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

    4.4 ft. - Surface Aggregate Projecting, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

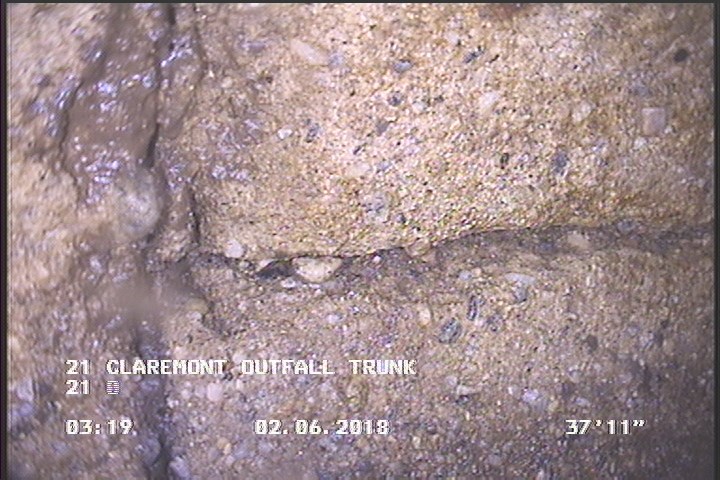

  • Fracture Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

    37.9 ft. - Fracture Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

All inspections of P16021Work order 684706

Observations (20)

DistanceCodeObservation
693.6AMH21 0932
691.9FM—
691.9SAP—
47.3TB—
375.8TBA—
37.9FM—
335.1TFC—
211.8TB—
0MWM—
179.2TF—
420.8TBA—
4.4SAP—
197.4TB—
572.5TBA—
0MWL—
487.8TBA—
569.9TFC—
0MGOCONNECTION AT MH 9 O'CLOCK
317.7TBA—
0AMH21 0933

Properties (4)

additional_info
SC346494
custom_field_two
2
customer
LACSD
datetime
2018-02-06T03:16:37-08:00
