Wastewater/Activity/PacpInspection/1.0Feb 6, 2018, 11:09 AM
21 0934_21 0933_06022018_031554.mp4
- Date
- 02/06/2018
- W/O
- 684706
- Weather
- Dry
- Operator/Surveyor
- E.RUIZ
- Sewer ID
- Z00760
- PipeID
- P16022
- Time
- 3:09 AM
- Certificate
- U-715-07000753
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- Not Known
- Media Label
- K5309
- Sewer Name
- 21 CLAREMONT OUTFALL TRUNK
- City
- CLAREMONT, CA
- Loc. details
- Light Highway
- Location Code
- C
- Use of Sewer
- Sanitary Sewer
- District
- District 21
- Page No.
- 10
- Purpose
- Routine Assessment
- Project
- WO_684706_TV21028_FEB2018
- Sewer Type
- Gravity
- Material
- NRCP
- Shape
- Circular
- Height
- 12 in.
- Width
- 12 in.
- Upstream MH
- 21 0934
- Downstream MH
- 21 0933
- Dir. of Survey
- Downstream
- Length Surveyed
- 93.6 ft.
- Total Length
- 93.6 ft.
- Structural Index
- 4
- Structural Quick
- 4231
- Structural Rating
- 11
- O&M Index
- 1
- O&M Quick
- 1100
- O&M Rating
- 1
- Overall Index
- 3
- Overall Quick
- —
- Overall Rating
- 12
Observation photos (4)

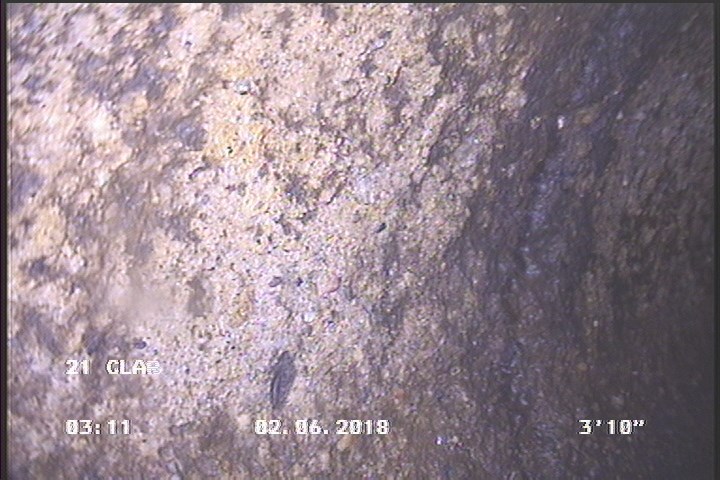

3.8 ft. - Surface Aggregate Projecting, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

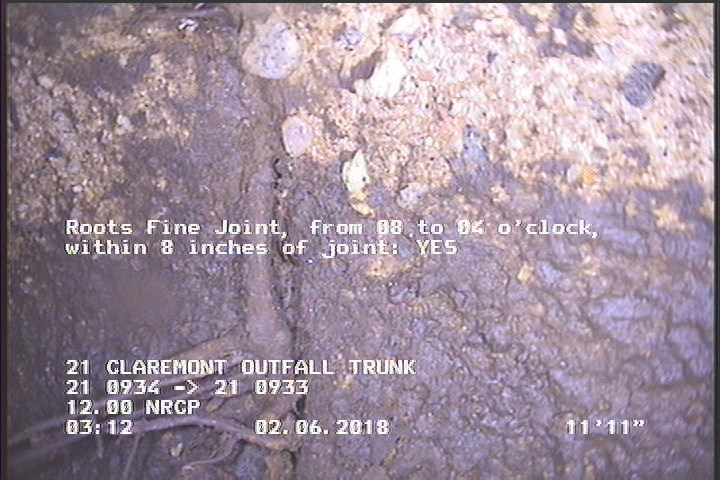

11.9 ft. - Roots Fine Joint, from 08 to 04 o'clock, within 8 inches of joint: YES

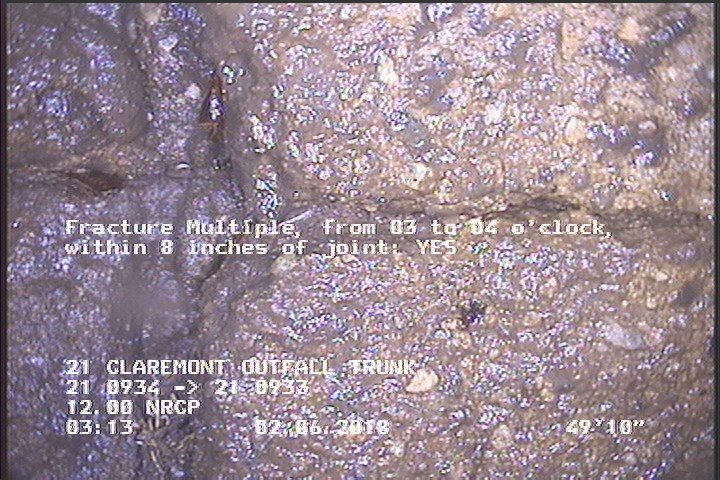

49.8 ft. - Fracture Multiple, from 03 to 04 o'clock, within 8 inches of joint: YES

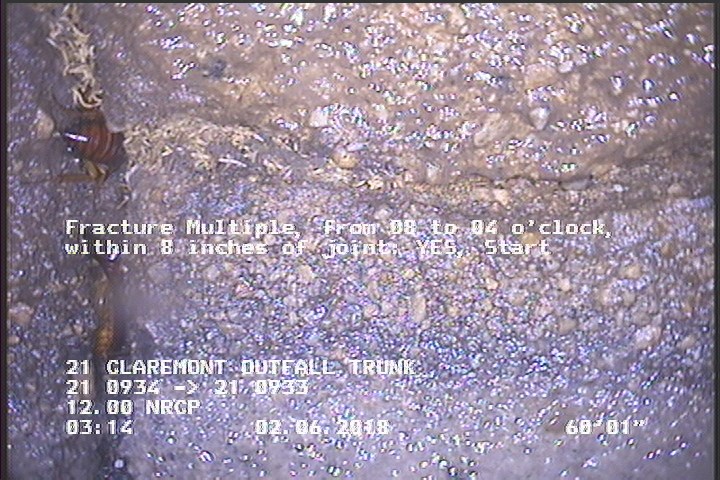

60.1 ft. - Fracture Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start
Observations (14)
| Distance | Code | Observation |
|---|---|---|
| 56.1 | TF | — |
| 49.8 | FM | — |
| 90.8 | FM | — |
| 93.6 | MGO | CONNECTION AT MH 9 O'CLOCK |
| 60.1 | FM | — |
| 0 | MGO | CONNECTION AT MH 3 O'CLOCK |
| 0 | MWL | — |
| 0 | AMH | 21 0934 |
| 93.6 | AMH | 21 0933 |
| 3.8 | SAP | — |
| 0 | MWM | — |
| 11.9 | RFJ | — |
| 90.8 | SAP | — |
| 10.9 | TFC | — |
Properties (4)
- additional_info
- SC346494
- custom_field_two
- 2
- customer
- LACSD
- datetime
- 2018-02-06T03:09:31-08:00
