Wastewater/Activity/PacpInspection/1.0Feb 2, 2018, 11:37 AM
21 0945_21 0944_02022018_035734.mp4
- Date
- 02/02/2018
- W/O
- 684706
- Weather
- Dry
- Operator/Surveyor
- K. ADAME
- Sewer ID
- Z00760
- PipeID
- P16038
- Time
- 3:37 AM
- Certificate
- U-0817-07009000
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- No Pre-Cleaning
- Media Label
- K4863
- Sewer Name
- 21 CLAREMONT OUTFALL TRUNK
- City
- CLAREMONT, CA
- Loc. details
- Light Highway
- Location Code
- C
- Use of Sewer
- Sanitary Sewer
- District
- District 21
- Page No.
- 07
- Purpose
- Routine Assessment
- Project
- WO_684706_TV21028_FEB2018
- Sewer Type
- Gravity
- Material
- NRCP
- Shape
- Circular
- Height
- 12 in.
- Width
- 12 in.
- Upstream MH
- 21 0945
- Downstream MH
- 21 0944
- Dir. of Survey
- Downstream
- Length Surveyed
- 477.5 ft.
- Total Length
- 477.5 ft.
- Structural Index
- 4
- Structural Quick
- 4232
- Structural Rating
- 14
- O&M Index
- 0
- O&M Quick
- 0000
- O&M Rating
- 0
- Overall Index
- 4
- Overall Quick
- —
- Overall Rating
- 14
Observation photos (4)

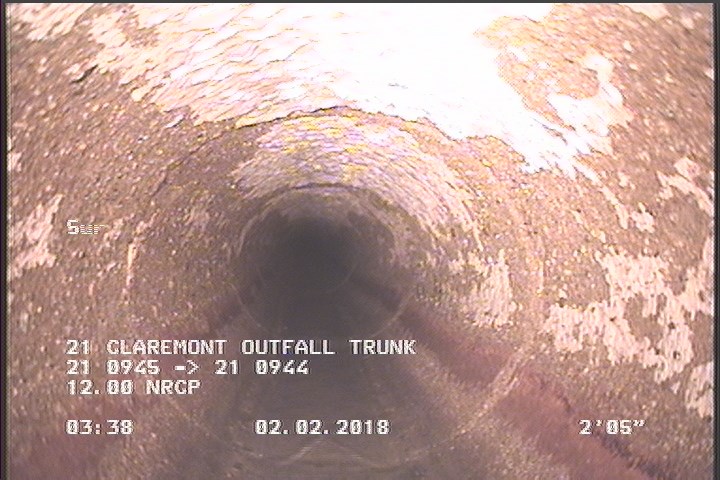

2.5 ft. - Surface Aggregate Visible, from 08 to 04 o'clock, within 8 inches of joint: NO, Start

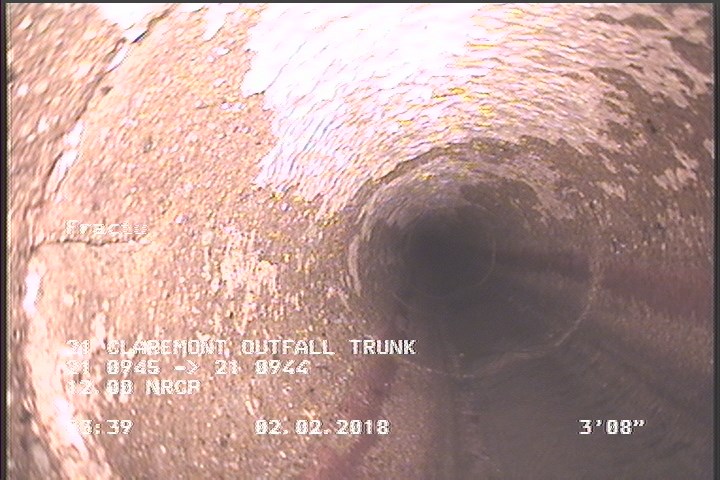

3.6 ft. - Fracture Longitudinal, at 10 o'clock, within 8 inches of joint: YES

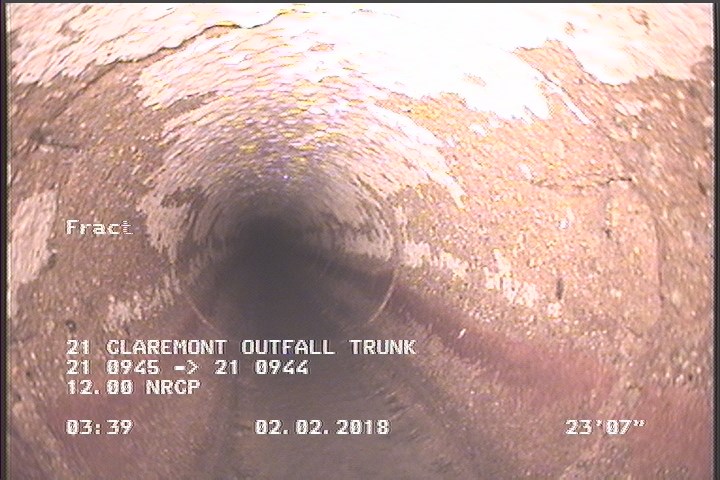

23.6 ft. - Fracture Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES

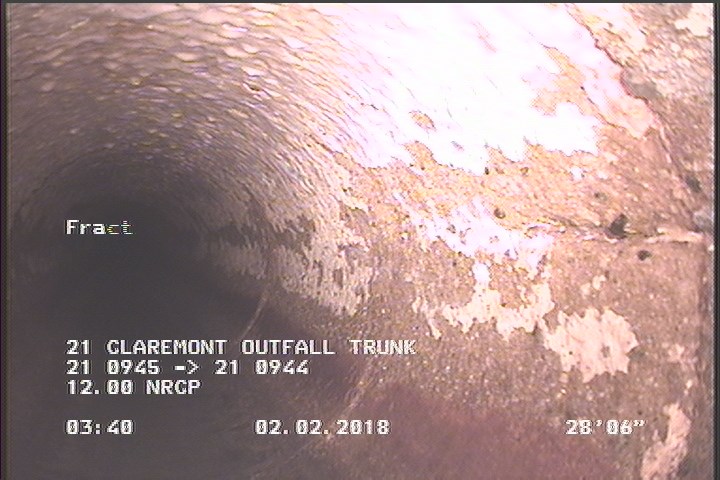

28.5 ft. - Fracture Multiple, from 09 to 03 o'clock, within 8 inches of joint: YES, Start
Observations (17)
| Distance | Code | Observation |
|---|---|---|
| 28.5 | FM | — |
| 254.3 | TB | — |
| 0 | MWM | — |
| 365.6 | TB | — |
| 23.6 | FM | — |
| 77.5 | TB | — |
| 200.1 | TB | — |
| 0 | MGO | CONNECTION AT MH 9 O'CLOCK |
| 0 | MWL | — |
| 476.7 | FM | — |
| 0 | AMH | 21 0945 |
| 2.5 | SAV | — |
| 3.6 | FL | — |
| 2.5 | MGO | MAG COAT |
| 476.7 | SAV | — |
| 477.5 | AMH | 21 0944 |
| 328.6 | TB | — |
Properties (4)
- additional_info
- SC346888
- custom_field_two
- 2
- customer
- LACSD
- datetime
- 2018-02-02T03:37:06-08:00
